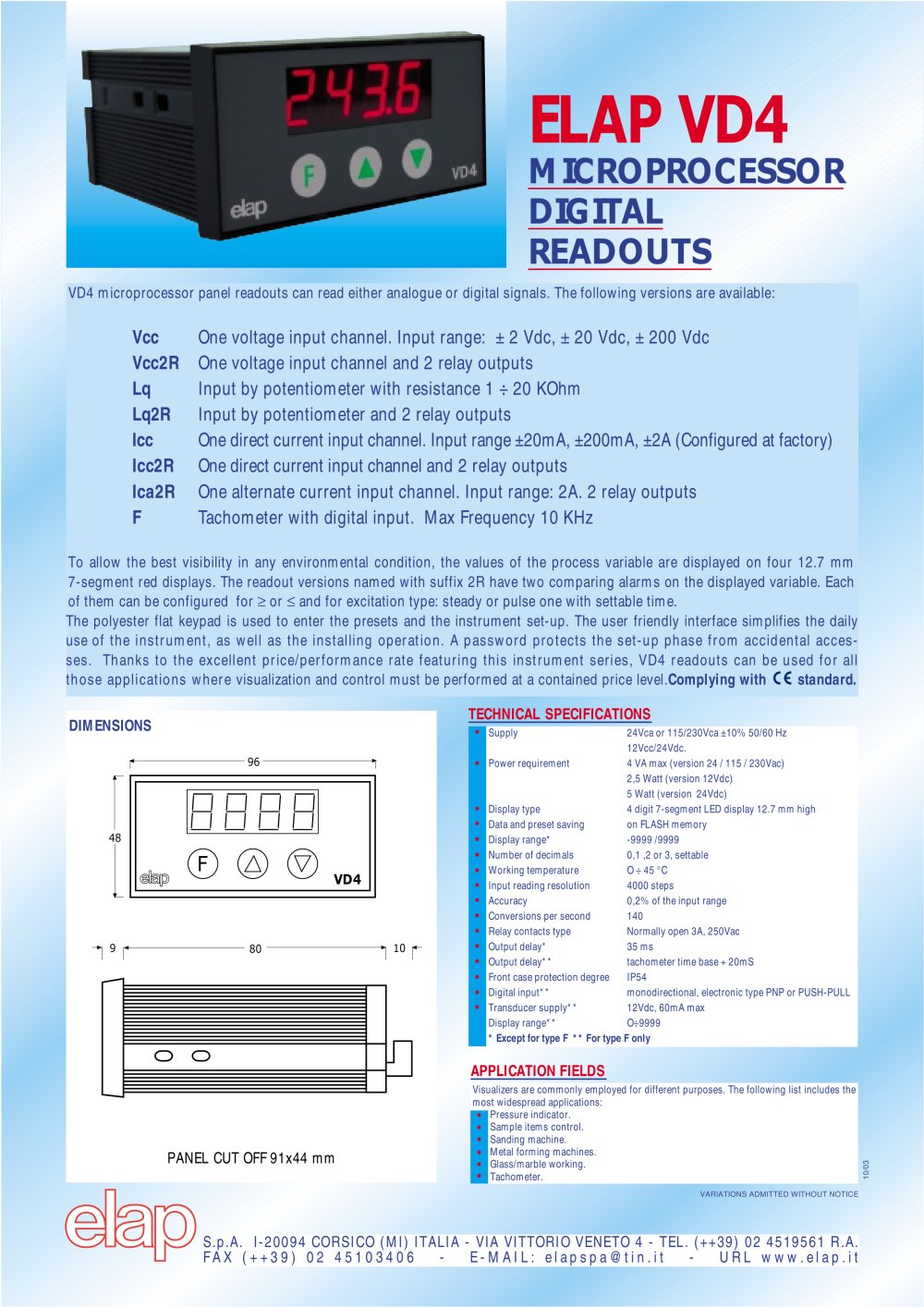

| BJ\P VD4 MICROPROCESSOR DIGITAL READOUTS VD4 microprocessor panel readouts can read either analogue or digital signals. The following versions are available: | |||||||||||||||||||||||||||||||||||||||||||||
| Vcc One voltage input channel. Input range: ± 2 Vdc, ± 20 Vdc, ± 200 Vdc Vcc2R One voltage input channel and 2 relay outputs Lq Input by potentiometer with resistance 1 t 20 KOhm Lq2R Input by potentiometer and 2 relay outputs Icc One direct current input channel. Input range ±20mA, ±200mA, ±2A (Configured at factory) Icc2R One direct current input channel and 2 relay outputs Ica2R One alternate current input channel. Input range: 2A. 2 relay outputs F Tachometer with digital input. Max Frequency 10 KHz | |||||||||||||||||||||||||||||||||||||||||||||
| To allow the best visibility in any environmental condition, the values of the process variable are displayed on four 12.7 mm 7-segment red displays. The readout versions named with suffix 2R have two comparing alarms on the displayed variable. Each of them can be configured for > or < and for excitation type: steady or pulse one with settable time. The polyester flat keypad is used to enter the presets and the instrument set-up. The user friendly interface simplifies the daily use of the instrument, as well as the installing operation. A password protects the set-up phase from accidental accesses. Thanks to the excellent price/performance rate featuring this instrument series, VD4 readouts can be used for all those applications where visualization and control must be performed at a contained price level.Complying with C€ standard. | |||||||||||||||||||||||||||||||||||||||||||||
| TECHNICAL SPECIFICATIONS | |||||||||||||||||||||||||||||||||||||||||||||
| DIMENSIONS | |||||||||||||||||||||||||||||||||||||||||||||
| 24Vca or 1 15/230Vca ±10% 50/60 Hz 12Vcc/24Vdc. 4 VA max (version 24 / 1 15 / 230Vac) 2,5 Watt (version 12Vdc) 5 Watt (version 24Vdc) 4 digit 7-segment LED display 12.7 mm high on FLASH memory -9999 /9999 0,1 ,2 or 3, settable O v45 °C 4000 steps 0,2% of the input range 140 Normally open 3A, 250Vac 35 ms tachometer time base + 20mS IP54 monodirectional, electronic type PNP or PUSH-PULL 12Vdc, 60mA max Ov9999 F only | |||||||||||||||||||||||||||||||||||||||||||||
| • Supply • Power requirement • Display type • Data and preset saving • Display range* • Number of decimals • Working temperature • Input reading resolution • Accuracy • Conversions per second • Relay contacts type • Output delay* • Output delay** • Front case protection degree • Digital input** • Transducer supply** Display range** H* Except for type F ** For type | |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| 48 | |||||||||||||||||||||||||||||||||||||||||||||
| 9 | 10 | ||||||||||||||||||||||||||||||||||||||||||||
| 80 | |||||||||||||||||||||||||||||||||||||||||||||
| r | |||||||||||||||||||||||||||||||||||||||||||||
| o o | |||||||||||||||||||||||||||||||||||||||||||||
| APPLICATION FIELDS Visualizers are commonly employed for different purposes. The following list includes the most widespread applications: | |||||||||||||||||||||||||||||||||||||||||||||
| Pressure indicator. Sample items control. Sanding machine. Metal forming machines. Glass/marble working. Tachometer. | |||||||||||||||||||||||||||||||||||||||||||||
| PANEL CUTOFF 91x44 mm | |||||||||||||||||||||||||||||||||||||||||||||
| VARIATIONS ADMITTED WITHOUT NOTICE | |||||||||||||||||||||||||||||||||||||||||||||
| S.p.A. I-20094 CORSICO (MI) ITALIA FAX (++39) 02 45103406 - | VIA VITTORIO VENETO 4 - TEL. (++39) 02 4519561 R.A. E-MAIL: elapspa@tin.it - URL www.elap.it | ||||||||||||||||||||||||||||||||||||||||||||
