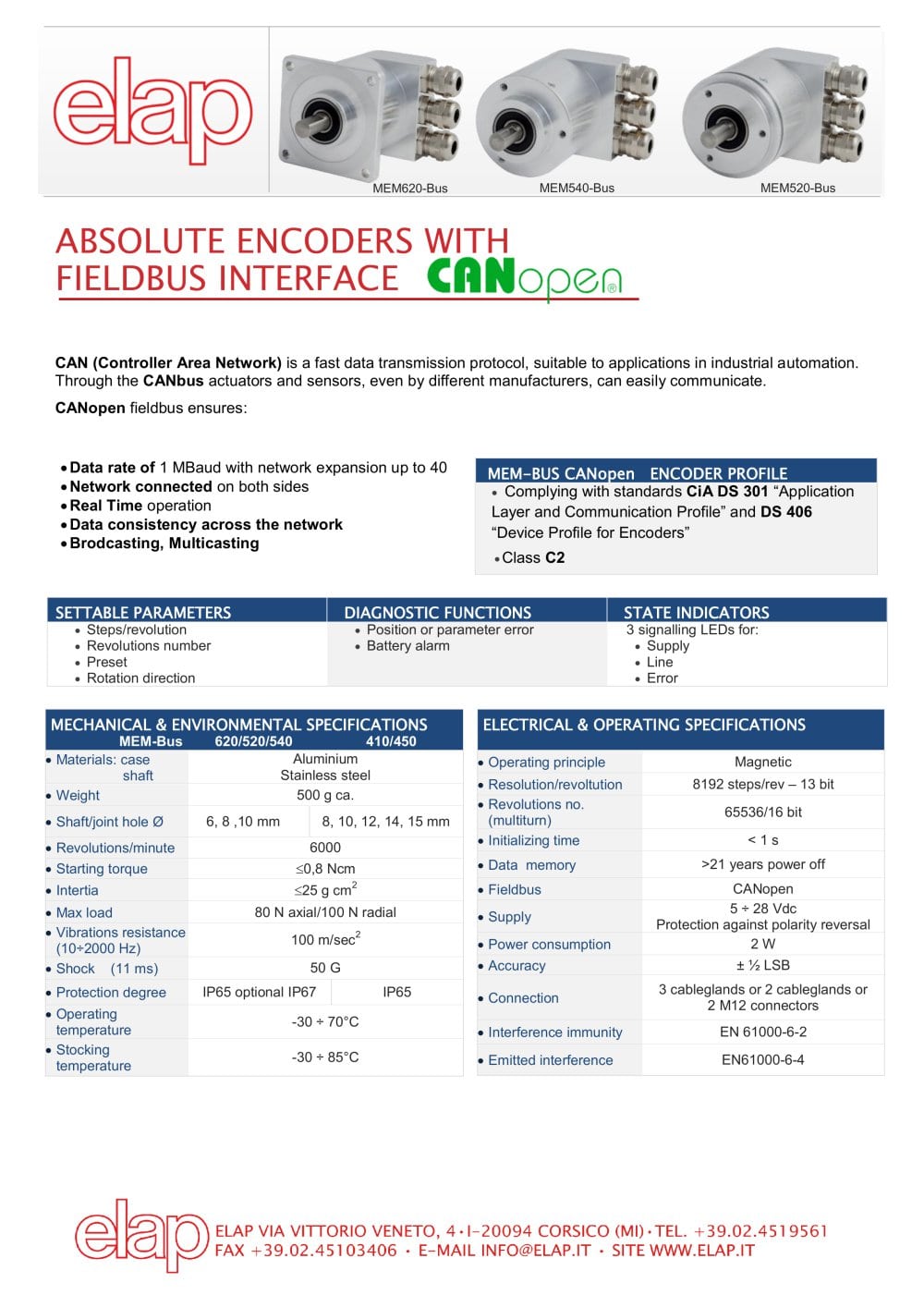

ABSOLUTE ENCODERS WITH FIELDBUS INTERFACE CIlNopOQ CAN (Controller Area Network) is a fast data transmission protocol, suitable to applications in industrial automation. Through the CANbus actuators and sensors, even by different manufacturers, can easily communicate. CANopen fieldbus ensures: MEM-BUS CANopen ENCODER PROFILE • Data rate of 1 MBaud with network expansion up to 40 • Network connected on both sides • Real Time operation • Data consistency across the network • Brodcasting, Multicasting • Complying with standards CiA DS 301 "Application Layer and Communication Profile” and DS 406 "Device Profile for Encoders” • Class C2 • Preset • Line • Rotation direction • Error MECHANICAL & ENVIRONMENTAL SPECIFICATIONS ELECTRICAL & OPERATING SPECIFICATIONS ELAP VIA VITTORIO VENETO, 4*1-20094 CORSICO (Ml)-TEL. +39.02.4519561 FAX+39.02.45103406 • E-MAIL INFO@E

AVAILABLE MECHANICAL VERSIONS 0 58 mm body Blind hollow shaft for motor fixing Joint hole 0 8, 10, 12, 14 or 15 mm 0 58 mm body 63,5x63,5 mm square flange • 0 31,75 mm centering mask Shaft 0 6, 8 or 10 mm SIZE25 0 58 mm body 0 58 mm round flange • 0 50 mm centeing mask Servo coupling Shaft 0 6, 8 or 10 mm SYNCHRO FLANGE 0 58 mm body 0 58 mm round flange • 0 36 mm centering mask-^ 3 holes M4 a 120° on 0 48 mm Shaft 0 6, 8 or 10 mm CLAMPING FLANGE 0 58 mm body Blind hollow shaft for motor fixing. Joint hole 0 8, 10, 12, 14 or 15 mm Fixing by elastic metal support Addrreg NC* W fTpnlhg} I'Sm lab'P...

No. of TURNS M = Multiturn S = Singleturn - TYPE MEM520-Bus = Round flange Ø 58 mm MEM540-Bus = Round flange Ø 58 mm MEM620-Bus = Square flange 63.5x63.5 mm MEM410-Bus = Blind hollow shaft for motor coupling MEM450-Bus = Blind hollow shaft, fixing by elastic support ELAP reserves the right to upgrade the product without notice DIMENSIONS CONNECTIONS BY P9 CABLE GLANDS *AVAILABLE SHAFT DIAMETER 8 – 10 length 20 mm 6 mm lengtrh 10 mm *AVAILABLE SHAFT DIAMETER 8 – 10 length 20 mm 6 mm lengtrh 10 mm *AVAILABLE SHAFT DIAMETER 8 – 10 length 20 mm 6 mm lengtrh 10
