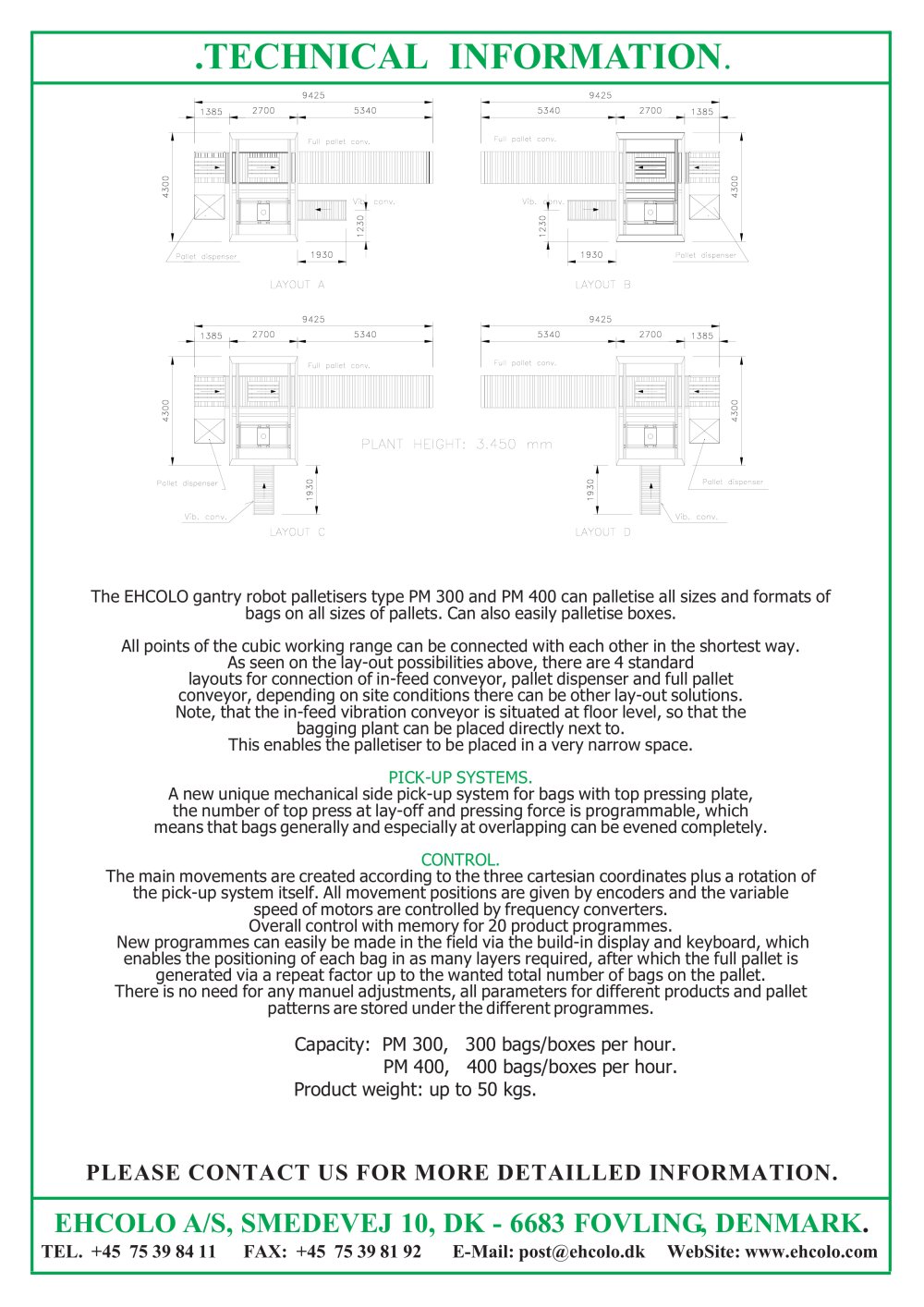

.TECHNICAL INFORMATION .

The EHCOLO gantry robot palletisers type PM 300 and PM 400 can palletise all sizes and formats ofbags on all sizes of industrial pallets. Can also easily palletise boxes.All points of the cubic working range can be connected with each other in the shortest way.As seen on the lay-out possibilities above, there are 4 standardlayouts for connection of in-feed conveyor, pallet dispenser and full palletconveyor, depending on site conditions there can be other lay-out solutions.ote, that the in-feed vibration conveyor is situated at floor level, so that thebagging plant can be placed directly next to.This enables the palletiser to be placed in a very narrow space. PICK-UP SSTEMS. A new unique mechanical side pick-up system for bags with top pressing plate,the number of top press at lay-off and pressing force is programmable, whichmeans that bags generally and especially at overlapping can be evened completely. COTOL. The main movements are created according to the three cartesian coordinates plus a rotation ofthe pick-up system itself. All movement positions are given by encoders and the variablespeed of motors are controlled by frequency converters.Overall control with memory for 20 product programmes. ew programmes can easily be made in the field via the build-in display and keyboard, whichenables the positioning of each bag in as many layers required, after which the full pallet isgenerated via a repeat factor up to the wanted total number of bags on the pallet.There is no need for any manuel adjustments, all parameters for different products and palletpatterns are stored under the different programmes.

Capacity: PM 300, 300 bags/boxes per hour. PM 400, 400 bags/boxes per hour. Product weight: up to 50 kgs.

PLEASE CONTACT US FOR MORE DETAILLED INFORMATION.
