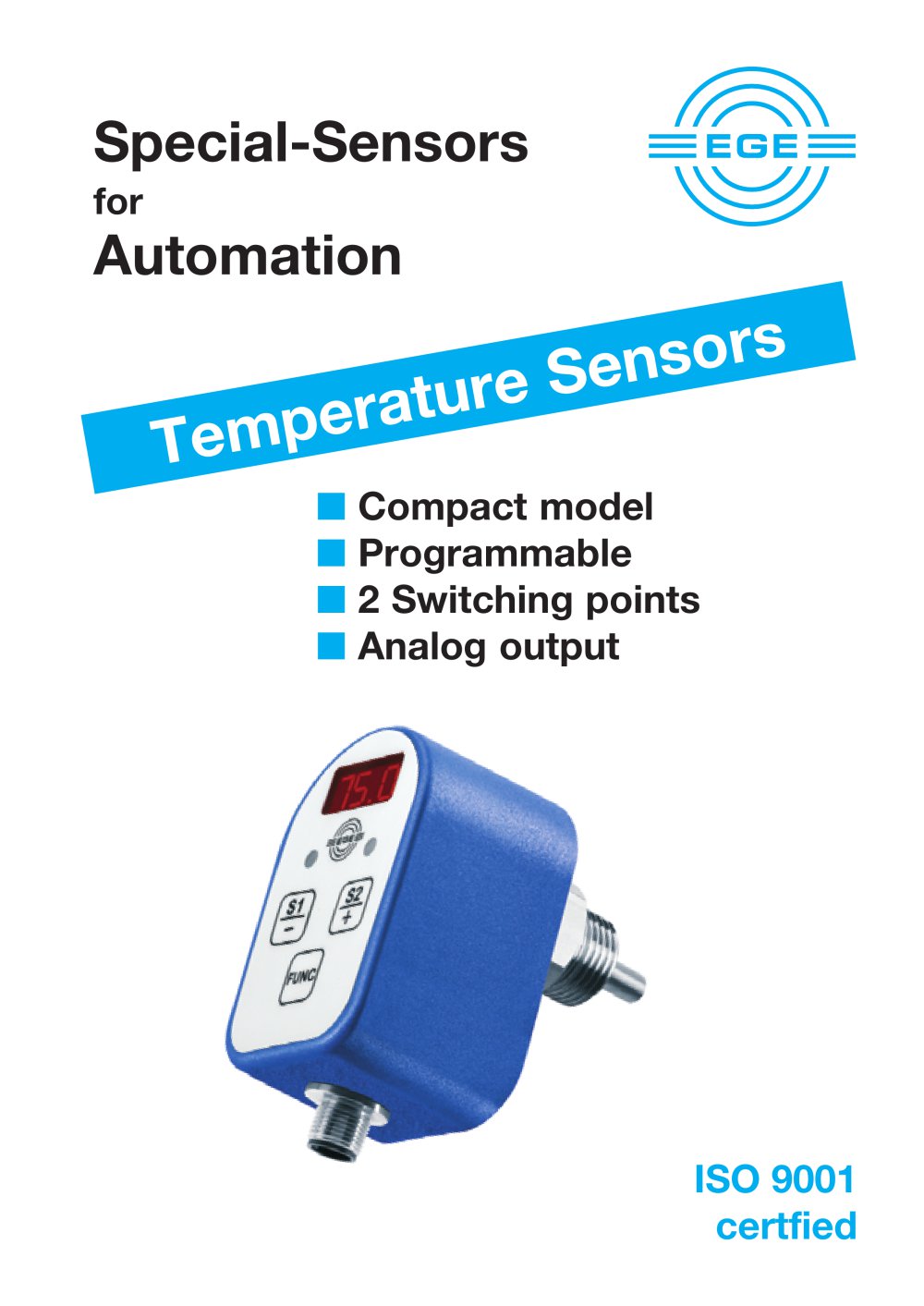

nsors e Se ratur empe T Compact model Programmable 2 Switching points Analog output

Temperature Sensors Technology and application Functionality The compact models TN 552 GPP and TN 552/1 GPP have two independent adjustable switching points. The compact models TN 552 GAPP and TN 552/1 GAPP have one independent adjustable switching point and one scalable 4...20 mA analog output. The detecting range for fluids is from – 40 °C to +120 °C, the tolerance is 0.3 °C (0...80 °C). The compact models TN 552... offer a window function as an alternative to the standard limit monitoring. Additionally, the NO/NC output function is programmable. Transient temperature changes can be...

Temperature Sensors Two switching points and analog output Series TN 553 Exchangeable during ongoing operations through use of threaded sleeve Measuring range – 40...+120 °C Two switching points, hysteresis and temperature window easily programmable Design Detection range Output ID-No. Type Supply voltage Current consumption Voltage drop Ambient temperature Medium temperature Response time Resolution display Range limit values Range hysteresis Range window Time delay Programmable functions Compressive strength [bar] Housing material Protection [EN 60529] Connection Step) Step) Step) Step)...

Temperature Sensors Two switching points Series TN 552 Measuring range – 40 °C...+120 °C / – 40 °F...+ 248 °F Two switching points, hysteresis and temperature window easily programmable Rotable display Switch-over °C - °F Design Detection range Output ID-No. Type Supply voltage [V] Current consumption [mA] Voltage drop [V] Switching current [mA] Ambient temperature [°C] Medium temperature [°C] Response time [s] Resolution display [°C/°F] Range limit values [°C/°F] Range hysteresis [°C/°F] Range window [°C/°F] Time delay [s] Programmable functions Compressive strength [bar] Housing material...

Temperature Sensors Switching point and analog output Series TN 552 Measuring range – 40 °C...+120 °C / – 40 °F...+ 248 °F Switching point and analog output, hysteresis and temperature window easily programmable Rotable display Switch-over °C - °F Design Detection range Output ID-No. Type Supply voltage Current consumption Voltage drop Analog output Switching current Ambient temperature Medium temperature Response time Resolution display Range limit values Range hysteresis Range window Time delay P71019 TN 552 GAPP [V] [mA] [V] [mA] [mA] [°C] [°C] [s] [°C/°F] [°C/°F] [°C/°F] [°C/°F] [s]...

Temperature Sensors Accessories • M12 connector System SL Finished cable plug housing Self locking screw plug Protection IP 67 Cable plug housing straight Cable plug housing straight, 2 m cable 3x0.34 mm² Cable plug housing straight, 5 m cable 3x0.34 mm² Cable plug housing angular, 2 m cable 3x0.34 mm² Cable plug housing angular, 5 m cable 3x0.34 mm² Cable plug housing angular, 2 m cable 3x0.34 mm² Cable plug housing straight, 2 m cable 4x0.25 mm² Cable plug housing straight, 5 m cable 4x0.25 mm² Cable plug housing angular, 2 m cable 4x0.25 mm² Cable plug housing angular, 5 m cable 4x0.25...

Process Sensors Flow sensors Electronical monitoring of flow ■ Measuring range 1 ml/min...100 l/min Level sensors for Ex-applications ■ For level monitoring in Ex areas ■ With PTFE connector cable Sensors for connection to amplifiers Level sensors ■ Steam proof at a pressure of up to 30 bar ■ For chemically aggressive media Ultrasonic sensors Pressure sensors ■ Monitoring in pipes and containers Infrared detectors Position control EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Headquarters EGE-Elektronik Spezial-Sensoren GmbH Ravensberg 34 D-24214 Gettorf Tel. +49 (0) 4346 / 41580 Fax +49 (0) 4346 / 5658 Internet: www.ege-elektronik.com EGE-Elektronik ApS Forstallé 79 DK-6200 Aabenraa Tel. +45 70207271 Fax +45 70207272 Stork AS Brynsveien 100 N-1352 Kolsås Tel. +47 67176400 Fax +47 67176401 Cematic-Electric B.V. Postbus 777 NL-7550 AT Hengelo Tel. +31 742433422 Fax +31 742913333 ICM Ital Control Meters Srl Via della Valle 67 I-20048 Carate Brianza (Mi) Tel. +39 0362 8052 00 Fax +39 0362 8052 01 Bibus Spain, S. L. Rua do Arroncal, Vial C – Nave 4A ES-36350 Nigran...
