Inductive Sensors
72Pages

{{requestButtons}}

Catalog excerpts

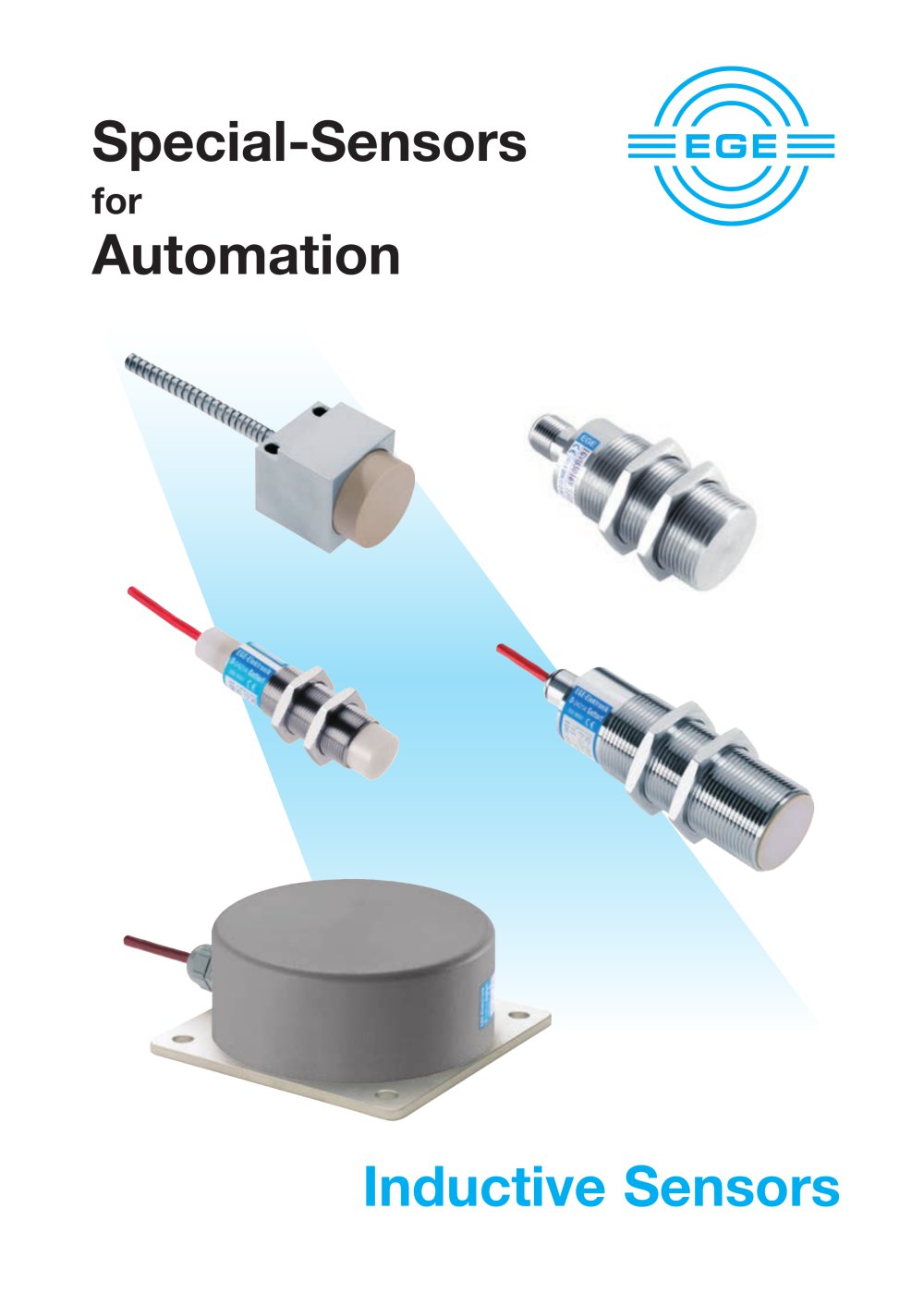

Inductive Sensors - 1

Inductive Sensors

Open the catalog to page 1
Inductive Sensors - 2

EGE-Elektronik Spezial-Sensoren GmbH • http://www

Open the catalog to page 2
Inductive Sensors - 3

Inductive SensorsTerminology for inductive measurement Damping area in % 150 100 75 50 25 12.5 Operating Principal An inductive proximity switch works with a high frequency oscillating circuit that creates an alternating electromagnetic field on the active sensor surface by means of a coil. When a metallic object nears this field a damping occurs in the oscillating circuit. If this damping exceeds a threshold value, a switching signal is generated. Operating distance The operating distance is the distance between an object and the active sensor surface at which a switching...

Open the catalog to page 3
Inductive Sensors - 4

Terminology for inductive measurement flush non-flush free zone free zone Operating voltage The operating voltage is the voltage range within EGE sensors function safely. For a constant voltage supply it is important to make sure that the limits are still observed when the residual ripple is included. Switching current This current gives the maximum long-term current for the switching output of the sensor at an ambient temperature of 25 °C and ohmic load. At an elevated ambient temperature, the current load capability decreases. For analog outputs, the boundary values given in...

Open the catalog to page 4
Inductive Sensors - 5

Inductive SensorsTerminology for inductive measurement Collocation When collocating the sensors, a minimum separation must be kept between the devices. When in doubt, a test should be conducted under application conditions. For flush mounting the lateral separation between two sensors must correspond to at least the diameter of the sensor. For non flush mounting, the lateral separation from each other must correspond to at least twice the diameter of the sensor. For oppositely mounted sensors, a minimal separation of six times the rated operating distance should be allowed. Torques In order...

Open the catalog to page 5
Inductive Sensors - 6

Application notesMetal face sensors page 3.07 - 3.10 The inductive proximity switches series IGV are used in areas with heavy-duty mechanical loads at the sensor’s face or where seals between face and housing cannot be used. Chips hitting the front or frequently changing coolants or lubricants do not diminish the function of these proximity switches. The variants with a PTFE coating are particularly well-suited for welding lines and similar environments where sensors are exposed to heavy soiling. Metal face switches are manufactured from stainless steel and are one solid piece. They...

Open the catalog to page 6
Inductive Sensors - 7

Inductive SensorsMetal face sensors • Plug connection Series IGVU - Proximity switches M12 / M18 / M30 One piece stainless steel housing DC 10...30 V Shock resistant Impact proof The specified operating distance (sn) applies to ferromagnetic objects (ST37). connecting cable type SLG 3-2 (Z01076), page 3.69 EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Open the catalog to page 7
Inductive Sensors - 8

Inductive SensorsMetal face sensors • Cable connection Series IGV - Proximity switches M12 / M18 / M30 One piece stainless steel housing DC 10...30 V Shock resistant Impact proof The specified operating distance (sn) applies to ferromagnetic objects (ST37). EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Open the catalog to page 8
Inductive Sensors - 9

Series IGVU - Proximity switches M12 / M18 / M30 One piece stainless steel housing DC 10...30 V Shock resistant Impact proof Design with fixed cable on request The specified operating distance (sn) applies to ferromagnetic objects (ST37). connecting cable SLG 3-2 (Z01076), page 3.69 EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Open the catalog to page 9
Inductive Sensors - 10

Inductive SensorsMetal face sensors • Climatic-proofed Series IGVW - Proximity switches M12 / M18 / M30 One piece stainless steel housing DC 10...30 V Shock resistant Impact proof The specified operating distance (sn) applies to ferromagnetic objects (ST37). EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Open the catalog to page 10
Inductive Sensors - 11

Inductive SensorsMounting clamp • For metal face sensors Series KBM 012 / KBM 018 / KBM 030 Impact- ans shock resistant, protected installation Simple adjustment via slotted holes Mount and replace sensor quickly and precisely Note: Mounting clamps are fastened to their metal surface using M6 hexagon socket screws. Make sure that the provided stainless steel washers have been placed in-between. flushed relative to the set back surface EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Open the catalog to page 11
Inductive Sensors - 12

Inductive Sensors Series IGMP - Proximity switches M12 / M18 / M30 Stainless steel sleeve DC 10...30 V IP 68 Water-proofed IP 69K Resistant to high pressure cleaning Dimensions Installation flush (f) non flush (nf) Switching current EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Open the catalog to page 12
Inductive Sensors - 13

Inductive Sensors Series IGMP - Proximity switches M18 Stainless steel sleeve AC 20...250 V IP 68 Water-proofed IP 69K Resistant to high pressure cleaning Installation flush (f) non flush (nf) EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Open the catalog to page 13
Inductive Sensors - 14

Inductive SensorsPOLAR-Series • Climatic-proofed -80 °C Series IGMP - Proximity switches M30 Stainless steel sleeve IP 68 Water-proofed - 80 °C permanent temperature M30x1.5 Dimensions Installation flush (f) non flush (nf) Sensor for the connection to amplifier IKM 120..., see page 3.33 EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Open the catalog to page 14
Inductive Sensors - 15

Inductive Sensors Series IGMF - Proximity switches M12 / M18-short form Stainless steel sleeve DC 10...30 V IP 68 Water-proofed IP 69K Resistant to high pressure cleaning Dimensions Installation flush (f) non flush (nf) ID-No. Type ID-No. Type Supply voltage [V] Switching current EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Open the catalog to page 15
Inductive Sensors - 16

Inductive Sensors Series IGMF - Proximity switches M18 / M30 Stainless steel sleeve DC 10...30 V IP 68 Water-proofed IP 69K Resistant to high pressure cleaning Installation flush (f) non flush (nf) ID-No. Type ID-No. Type Switching current EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Open the catalog to page 16
