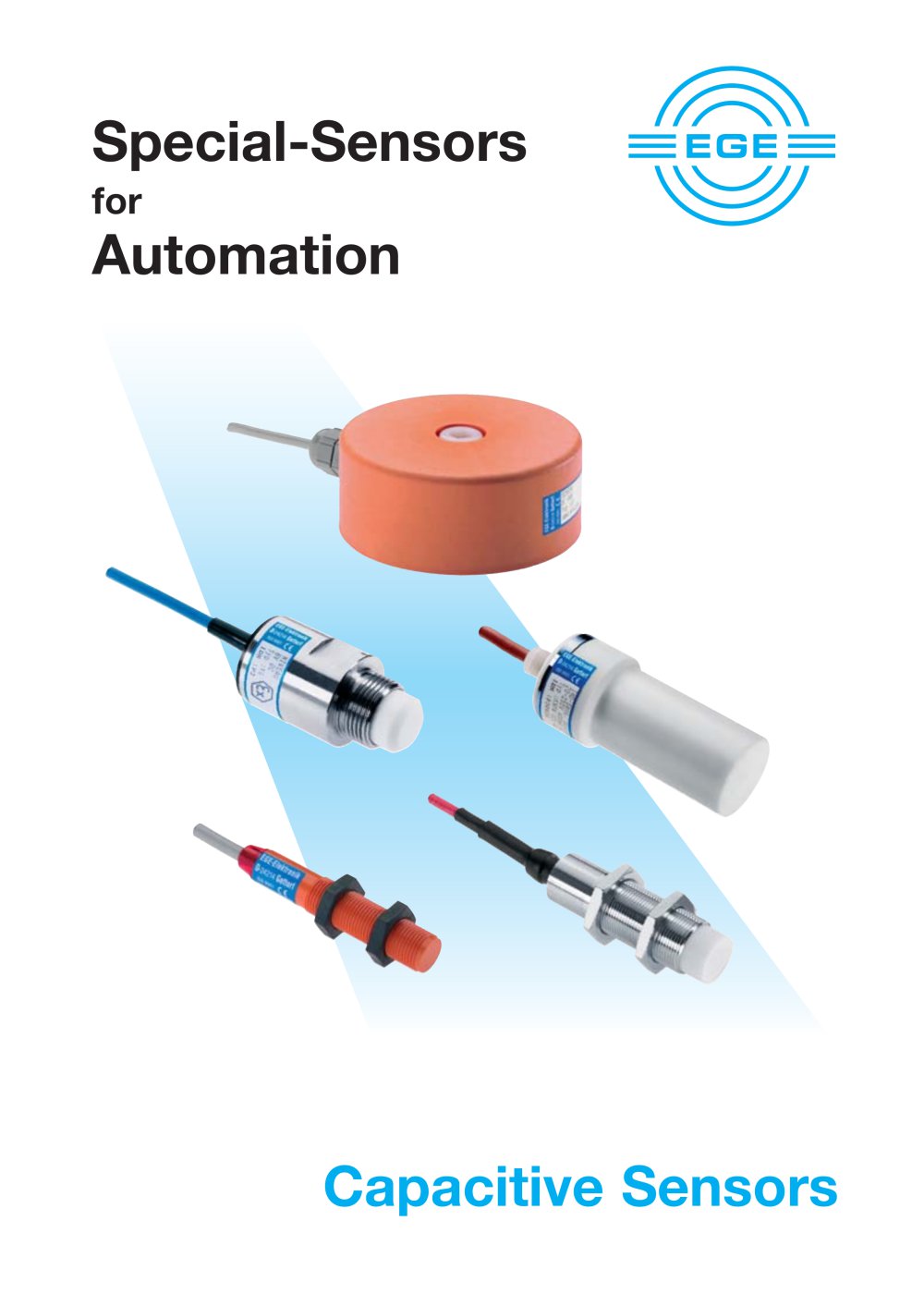

Special-Sensors for Automation Capacitive Sensors

We reserve the right to make technical alterations without prior notice. EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.

Capacitive Sensors Operating Principal A capacitive proximity switch works with a high frequency oscillating circuit that creates an electromagnetic field on the active sensor surface by means of a capacitor. When a substantial or fluid substance nears this field a capacitance unbalance occurs and leads to a variation of the amplification in the oscillating circuit. If this amplification exceeds a threshold value, a switching signal is generated. Operating Distance The operating distance is the separation of an object from the active sensor surface at which a switching signal is produced. The...

Capacitive Sensors Supply voltage The operating voltage is the voltage range in which EGE sensors function safely. For a constant voltage supply it is important to make sure that the limits are still observed when the residual ripple is included. Switching current This current gives the maximum long-term current for the switching output of the sensor at an ambient temperature of 25 °C and ohmic load. At an elevated ambient temperature, the current load capability decreases. For analog outputs, the boundary values given in the appropriate technical data, and particularly the permissible values...

Capacitive Sensors Collocation When collocating the sensors, a minimum separation must be kept between the devices in order to avoid mutual influence. When in doubt, a test should be conducted under application conditions. For flush mounting the lateral separation between two sensors must correspond to at least the diameter of the sensor. For non flush mounting, the lateral separation from each other must correspond to at least twice the diameter of the sensor. For separations greater than eight times the diameter no mutual influence is to be expected. For oppositely mounted sensors, a minimal...

Capacitive Sensors Standard switches Series KGK Plastic-thread M12x1 DC 10…33 V Installation flush (f) non flush (nf) 10 Operating distance sn [mm] Switching output ID-No. Type Supply voltage [V] Switching current [mA] Short circuit proof Overcurrent release [mA] Reverse protection Voltage drop max. [V] Residual current [mA] Current consumption (not actuated) [mA] Switching frequency [Hz] Ambient temperature [°C] EMC-class Protection [EN 60529] LED display Housing material Connection Accessories (see page 4.28) EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com Fixing nuts are...

Installation flush (f) non flush (nb) Operating distance sn (Adjustable range) Switching output ID-No. Type Supply voltage [V] Switching current [mA] Short circuit proof Overcurrent release [mA] Reverse protection Voltage drop max. [V] Residual current [mA] Current consumption (not actuated) [mA] Swiching frequency [Hz] Ambient temperature [°C] LED display Housing material Connection Connection diagram fixing nuts are part of delivery EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektron

Capacitive Sensors Standard switches Series KGK Plastic-thread M18x1 DC 10…55 V Installation flush (f) non flush (nf) LED Pot. Operating distance sn [mm] (Adjustable range) Switching output ID-No. Type Supply voltage [V] Switching current [mA] Short circuit proof Overcurrent release [mA] Reverse protection Voltage drop max. [V] Residual current [mA] Current consumption (not actuated) [mA] Switching frequency [Hz] Ambient temperature [°C] EMC-class Protection [EN 60529] LED display Housing material Connection Accessories (see page 4.29) EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com...

Installation flush (f) non flush (nf) Operating distance sn (Adjustable range) Switching output ID-No. Type Supply voltage [V] Switching current [mA] Short circuit proof Overcurrent release [mA] Reverse protection Voltage drop max. [V] Residual current [mA] Current consumption (not actuated) [mA] Switching frequency [Hz] Ambient temperature [°C] LED display Housing material Connection Connection diagram Fixing nuts are part of delivery EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Installation flush (f) non flush (nf) Operating distance sn [mm] (Adjustable range) Switching output ID-No. Type Supply voltage [V] Short circuit proof Overcurrent release [mA] Reverse protection Voltage max. [V] Minimum load current [mA] Current consumption max. [mA] Switching frequency [Hz] Ambient temperature [°C] EMC-class Protection [EN 60529] LED display Housing material Connectiob Connection diagram Fixing nuts are part of delivery EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Installation flush (f) non flush (nf) Operating distance sn (Adjustable range) Switching output ID-No. Type Supply voltage [V] Short circuit proof Overcurrent release [mA] Reverse protection Voltage drop max. [V] Minimum load current [mA] Current consumption (not actuated) [mA] Switching frequency [Hz] Ambient temperature [°C] LED display Housing material Connection Connection diagram Fixing nuts are part of delivery EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Installation flush (f) non flush (nf) Connection diagram Mounting clamps 0 20 mm (Z00100) are part of delivery EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Series KNK Smooth-body switches 034 mm DC 10...55 V Installation flush (f) non flush (nf) Operating distance sn (Adjustable range) Switching output ID-No. Type Supply voltage [V] Switching current [mA] Short circuit proof Overcurrent release [mA] Reverse protection Voltage drop max. [V] Residual current [mA] Current consumption (not actuated) [mA] Switching frequency [Hz] Ambient temperature [°C] LED display Housing material Connection Connection diagram Mounting clamps 0 34 mm (Z00102) are part of delivery EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com...
