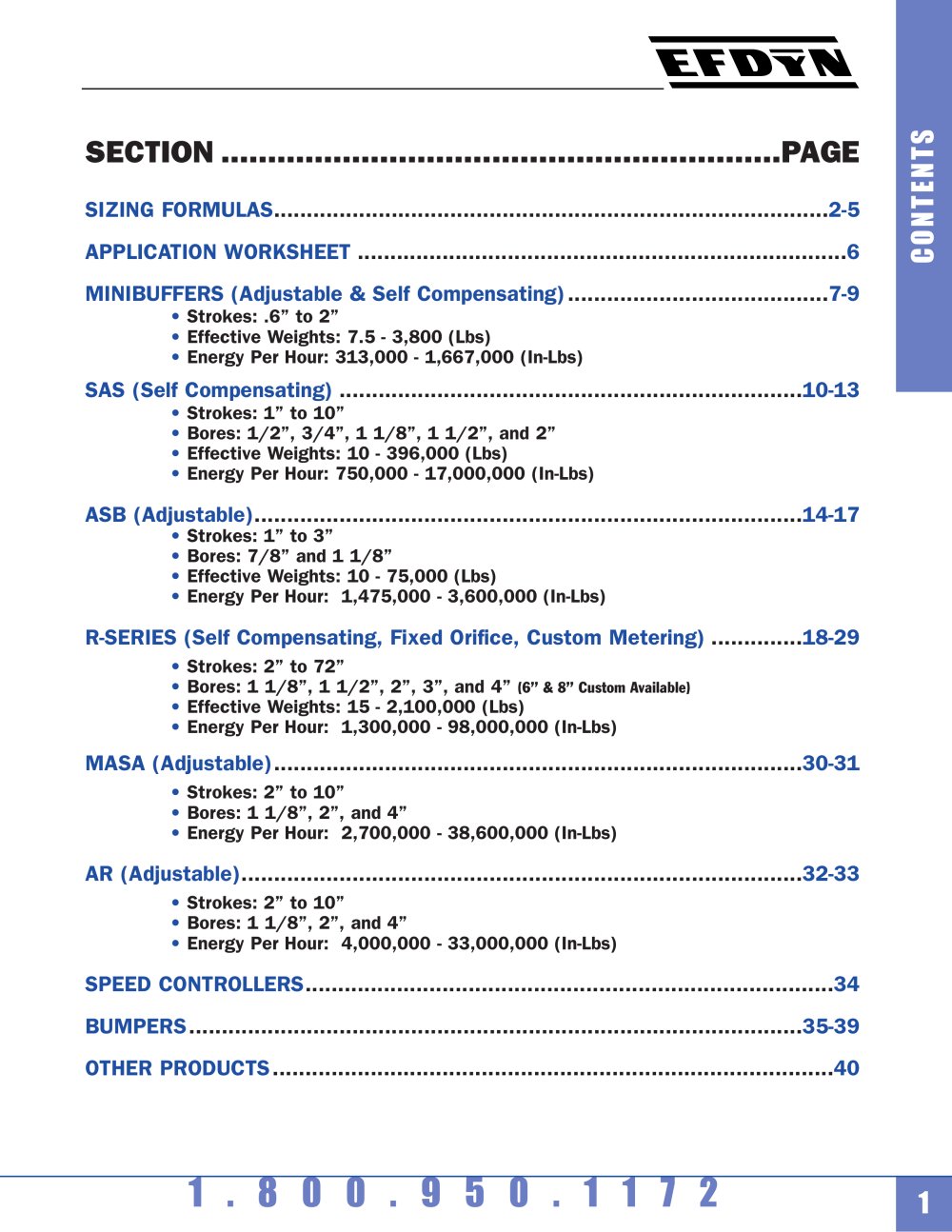

| SECTION............................................................PAGE SIZING FORMULAS.....................................................................................2-5 APPLICATION WORKSHEET...........................................................................6 MINIBUFFERS (Adjustable & Self Compensating)........................................7-9 • Strokes: .6" to 2" • Effective Weights: 7.5 - 3,800 (Lbs) • Energy Per Hour: 313,000 - 1,667,000 (In-Lbs) | |||||||||
| SAS (Self Compensating).......................................... • Strokes: 1" to 10" • Bores: 1/2", 3/4", 1 1/8", 1 1/2", and 2" • Effective Weights: 10 - 396,000 (Lbs) • Energy Per Hour: 750,000 - 17,000,000 (In-Lbs) ASB (Adjustable)....................................................... • Strokes: 1" to 3" • Bores: 7/8" and 1 1/8" • Effective Weights: 10 - 75,000 (Lbs) • Energy Per Hour: 1,475,000 - 3,600,000 (In-Lbs) | |||||||||
| R-SERIES (Self Compensating, Fixed Orifice, Custom Metering)..............18-29 • Strokes: 2" to 72" • Bores: 1 1/8", 1 1/2", 2", 3", and 4" (6" & 8" Custom Available) • Effective Weights: 15 - 2,100,000 (Lbs) • Energy Per Hour: 1,300,000 - 98,000,000 (In-Lbs) | |||||||||
| MASA (Adjustable).................................................................................30-31 | |||||||||
| • Strokes: 2" to 10" • Bores: 1 1/8", 2", and 4" • Energy Per Hour: 2,700,000 - 38,600,000 (In-Lbs) AR (Adjustable)......................................................................................32-33 • Strokes: 2" to 10" • Bores: 1 1/8", 2", and 4" • Energy Per Hour: 4,000,000 - 33,000,000 (In-Lbs) SPEED CONTROLLERS.................................................................................34 BUMPERS..............................................................................................35-39 OTHER PRODUCTS......................................................................................40 | |||||||||
| 1.800.950.1172 | |||||||||
