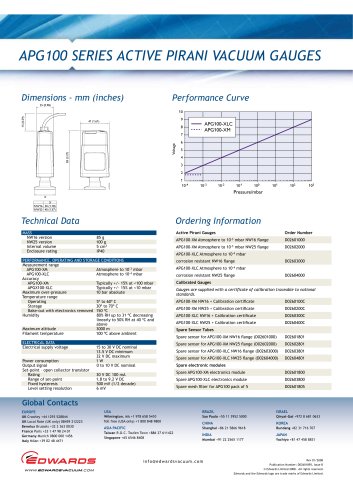

APG100 Datasheet - 2 / 2 Pages

APG100 SERIES ACTIVE PIRANI VACUUM GAUGES

Dimensions - mm (inches)

Performance Curve

25 (0.98)



X

NW16

30 (1.18)

NW25

40 (1.57)

Technical Data

NW16 version

NW25 version

Internal volume

Enclosure rating

85 g

100 g

5 cm3

IP40

Atmosphere to 103 mbar

Atmosphere to 10 4 mbar

PERFORMANCE, OPERATING AND STORAGE CONDITIONS

Measurement range

APG100-XM

APG100-XLC

Accuracy

APG100-XM

APGX100-XLC

Maximum over-pressure

Temperature range

Operating

Storage

Bake-out with electronics removed

Humidity

Typically +/- 15% at •

Typically +/- 15% at •

10 bar absolute

100 mbar

10 mbar

Maximum altitude

Filament temperature

ELECTRICAL DATA

Electrical supply voltage

Power consumption

Output signal

Set-point - open collector transistor

Rating

Range of set-point

Fixed hysteresis

Level setting resolution

5° to 60° C

30° to 70° C

150 °C

80% RH up to 31 °C decreasing

linearly to 50% RH at 40 °C and

above

3000 m

100 °C above ambient

15 to 30 V DC nominal

13.5 V DC minimum

32 V DC maximum

1 W

0 to 10 V DC nominal

30 V DC 100 mA

1.8 to 9.2 V DC

500 mV (112 decade)

6 mV




1 1



- APG100-XLC

-----APG100-XM






























1CH

10-2 -io-i 100 101

Pressure/mbar

102

103

Ordering information

Active Pirani Gauges Order Number

APG100-XM Atmosphere to 103 mbar NW16 flange D02601000

APG100-XM Atmosphere to 10 3 mbar NW25 flange D02602000

APG100-XLC Atmosphere to 10"4 mbar

corrosion resistant NW16 flange D02603000

APG100-XLC Atmosphere to 10 4 mbar

corrosion resistant NW25 flange D02604000

Calibrated Gauges

Gauges are supplied with a certificate of calibration traceable to national

standards.

APG100-XM NW16 + Calibration certificate D0260100C

APG100-XM NW25 + Calibration certificate D0260200C

APG100-XLC NW16 + Calibration certificate D0260300C

APG100-XLC NW25 + Calibration certificate D0260400C

Spare Sensor Tubes

Spare sensor for APG100-XM NW16 flange (D02601000) D02601801

Spare sensor for APG100-XM NW25 flange (D02602000) D02602801

Spare sensor for APG100-XLC NW16 flange (D02603000) D02603801

Spare sensor for APG100-XLC NW25 flange (D02604000) D02604801

Spare electronic modules

Spare APG100-XM electronics module D02601800

Spare APG100-XLC electronics module D02603800

Spare mesh filter for APG100 pack of 5 D02601805

Global Contacts

EUROPE

UK Crawley +44 1293 528844

UK Local Rate (UK only) 08459 212223

Benelux Brussels +32 2 363 0030

France Paris +33 1 47 98 24 01

Germany Munich 0800 000 1456

Italy Milan +39 02 48 4471

WWW.BOWAFROB\a*CUUM. COM

USA

Wilmington, MA+1 978 658 5410

Toll free (USA only) +1 800 848 9800

ASIA PACIFIC

Taiwan R.O.C. Toufen Town +886 37 611422

Singapore +65 6546 8408

BRAZIL

Sao Paulo +55 11 3952 5000

CHINA

Shanghai +86 21 5866 9618

INDIA

Mumbai+91 22 2565 1177

info@edwardsvacuum.com

ISRAEL

Qiryat-Gat +972 8 681 0633

KOREA

Bundang +82 31 716 707

JAPAN

Yachiyo+81 47 458 8831

Rev 01 /2008

Publication Number: D02601895, Issue B

© Edwards Limited 2008. All rights reserved.

Edwards and the Edwards logo are trade marks of Edwards Limited.
