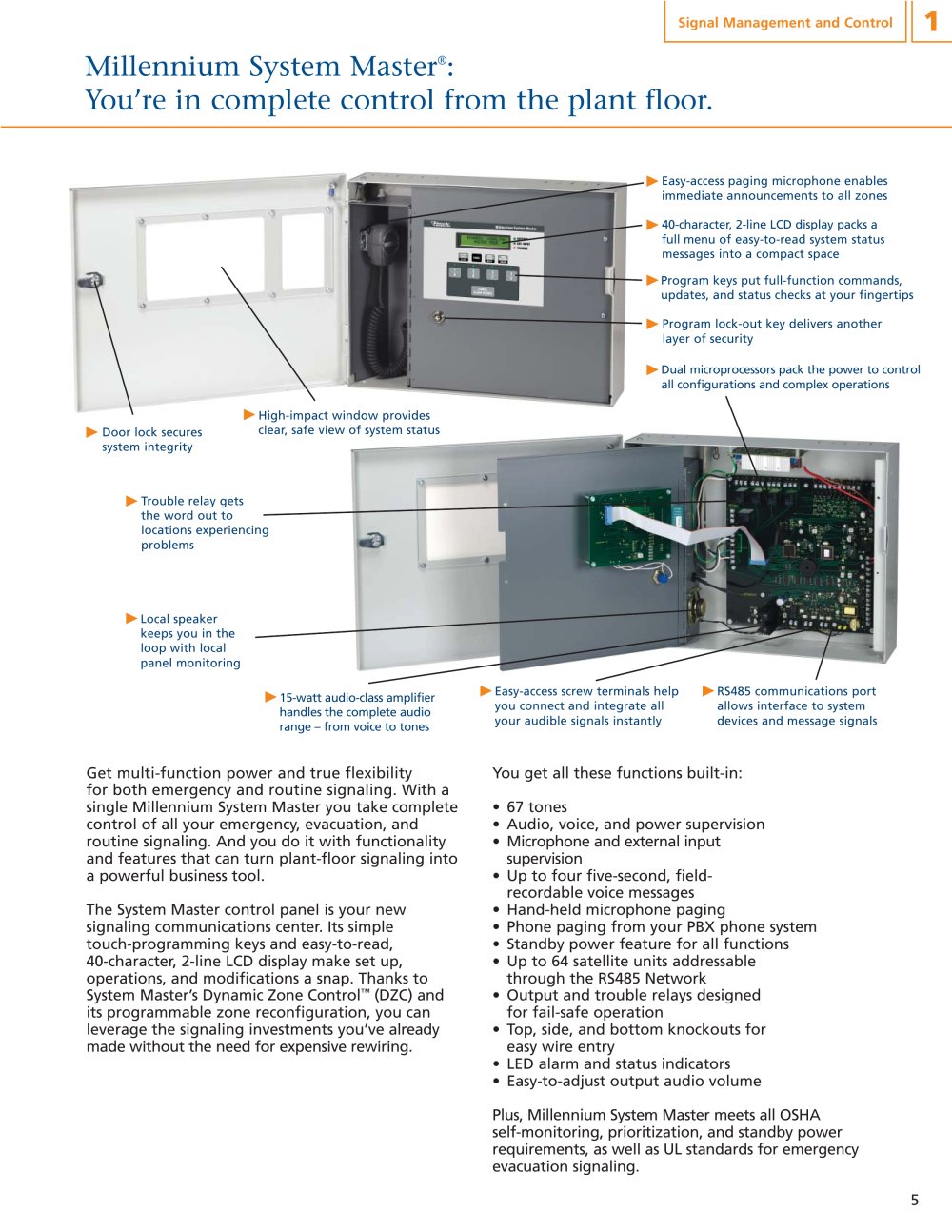

Millennium System Master®:

You're in complete control from the plant floor.

•Easy-access paging microphone enables immediate announcements to all zones

• 40-character, 2-line LCD display packs a full menu of easy-to-read system status messages into a compact space

•Program keys put full-function commands, updates, and status checks at your fingertips

• Program lock-out key delivers another layer of security

Dual microprocessors pack the power to control all configurations and complex operations

► High-impact window provides clear, safe view of system status

Door lock secures system integrity

Trouble relay gets the word out to locations experiencing problems

Local speaker keeps you in the loop with local panel monitoring

•Easy-access screw terminals help you connect and integrate all your audible signals instantly

RS485 communications port allows interface to system devices and message signals

• 15-watt audio-class amplifier handles the complete audio range - from voice to tones

Get multi-function power and true flexibility for both emergency and routine signaling. With a single Millennium System Master you take complete control of all your emergency, evacuation, and routine signaling. And you do it with functionality and features that can turn plant-floor signaling into a powerful business tool.

The System Master control panel is your new signaling communications center. Its simple touch-programming keys and easy-to-read, 40-character, 2-line LCD display make set up, operations, and modifications a snap. Thanks to System Master's Dynamic Zone Control™ (DZC) and its programmable zone reconfiguration, you can leverage the signaling investments you've already made without the need for expensive rewiring.

You get all these functions built-in:

• 67 tones

• Audio, voice, and power supervision

• Microphone and external input supervision

• Up to four five-second, field-recordable voice messages

• Hand-held microphone paging

• Phone paging from your PBX phone system

• Standby power feature for all functions

• Up to 64 satellite units addressable through the RS485 Network

• Output and trouble relays designed for fail-safe operation

• Top, side, and bottom knockouts for easy wire entry

• LED alarm and status indicators

• Easy-to-adjust output audio volume

Plus, Millennium System Master meets all OSHA self-monitoring, prioritization, and standby power requirements, as well as UL standards for emergency evacuation signaling.
