Conventional Speaker/Amplifier Applications
|
4
|
|||
|
|
||||
 |

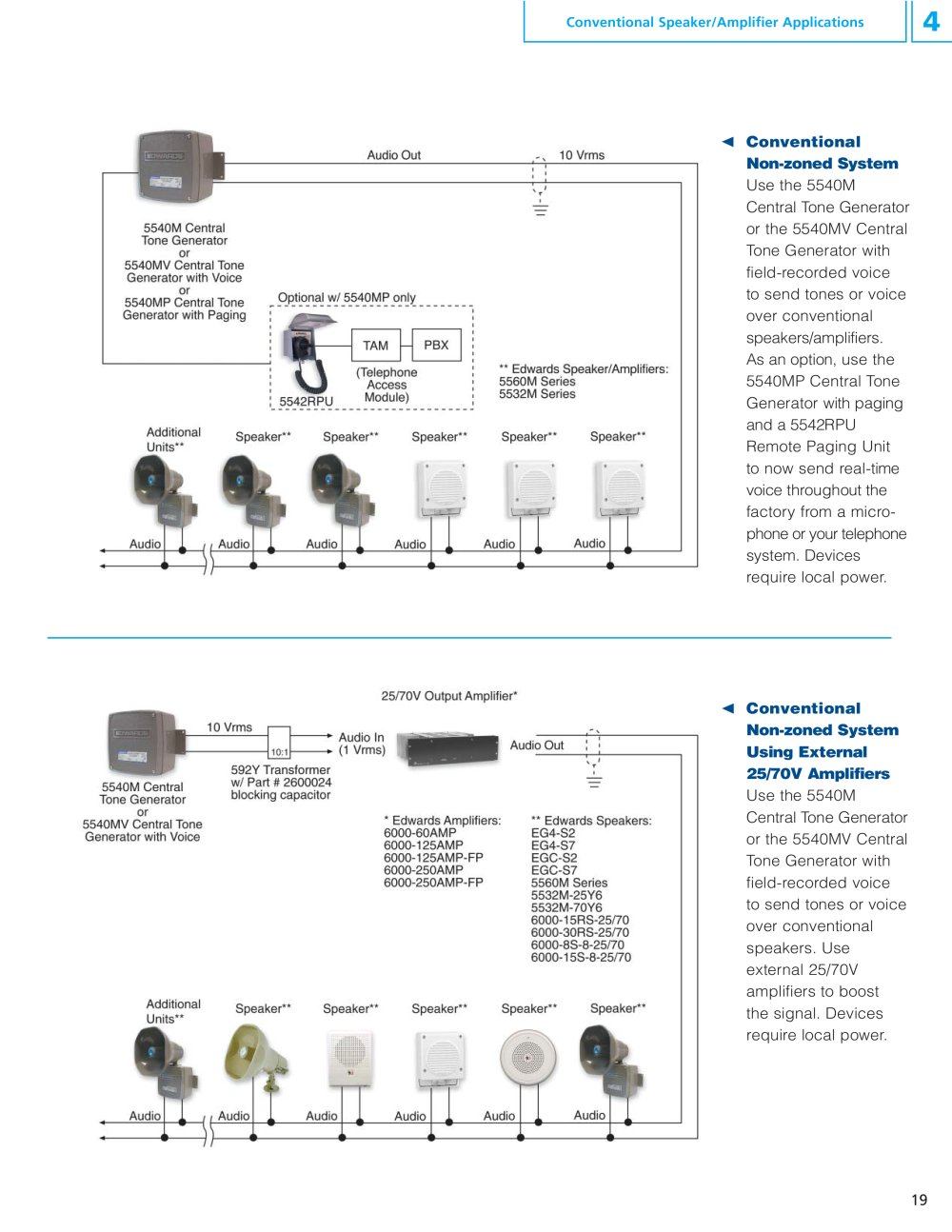

Conventional Non-zoned System
Use the 5540M Central Tone Generator or the 5540MV Central Tone Generator with field-recorded voice to send tones or voice over conventional speakers/amplifiers. As an option, use the 5540MP Central Tone Generator with paging and a 5542RPU Remote Paging Unit to now send real-time voice throughout the factory from a microphone or your telephone system. Devices require local power.
|
|||
|
|
||||
 |
Conventional Non-zoned System Using External 25/70V Amplifiers
Use the 5540M
Central Tone Generator or the 5540MV Central Tone Generator with field-recorded voice to send tones or voice over conventional speakers. Use external 25/70V amplifiers to boost the signal. Devices require local power.
|
|||
|
|
||||
|
19
|
||||
|
|
||||
