AdaptaBeacon Accessories
2Pages

{{requestButtons}}

Catalog excerpts

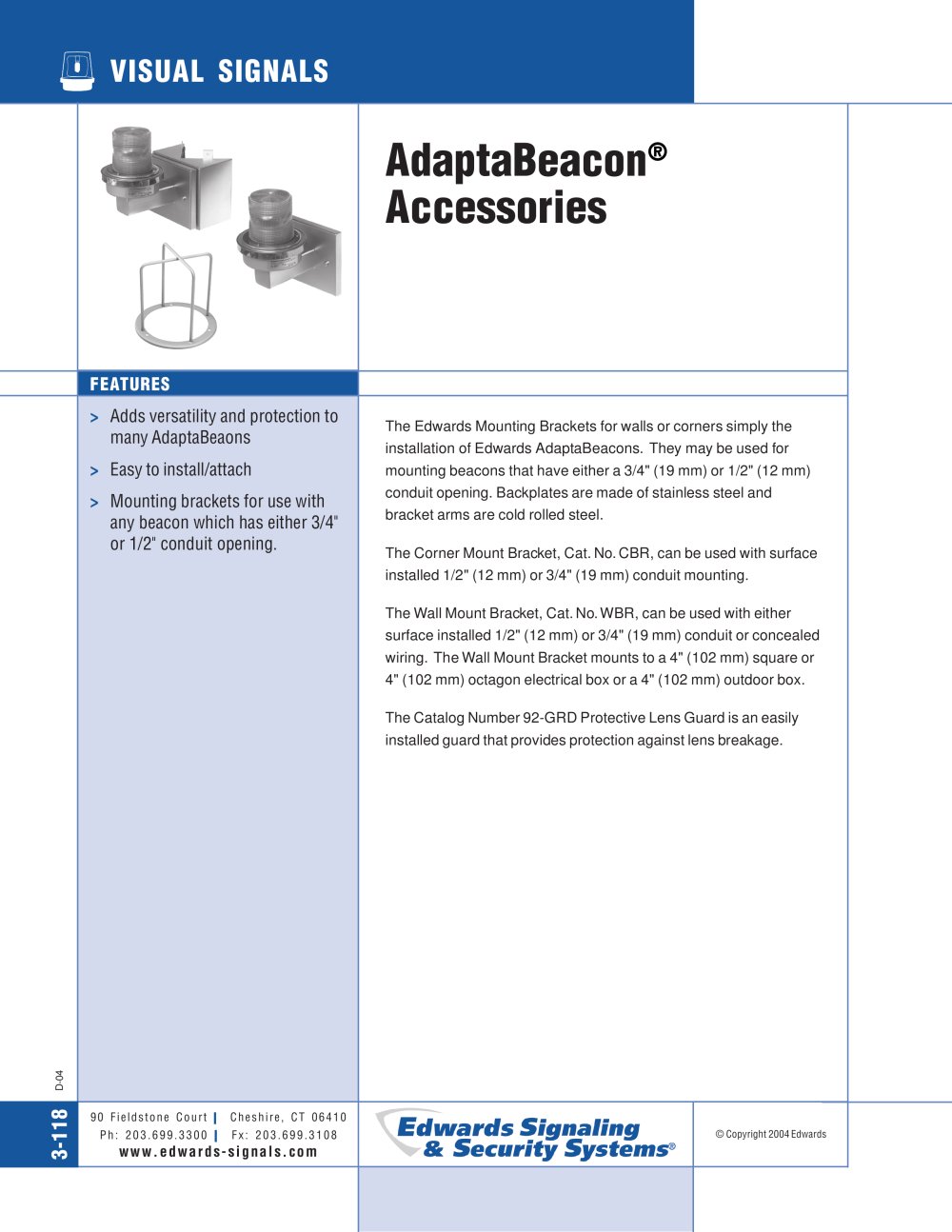

AdaptaBeacon Accessories - 1

FEATURES > Adds versatility and protection tomany AdaptaBeaons > The Edwards Mounting Brackets for walls or corners simply theinstallation of Edwards AdaptaBeacons. They may be used formounting beacons that have either a 3/4" (19 mm) or 1/2" (12 mm)conduit opening. Backplates are made of stainless steel andbracket arms are cold rolled steel.The Corner Mount Bracket, Cat. No. CBR, can be used with surfaceinstalled 1/2" (12 mm) or 3/4" (19 mm) conduit mounting.The Wall Mount Bracket, Cat. No. WBR, can be used with eithersurface installed 1/2" (12 mm) or 3/4" (19 mm) conduit or concealedwiring. The Wall Mount Bracket mounts to a 4" (102 mm) square or4" (102 mm) octagon electrical box or a 4" (102 mm) outdoor box.The Catalog Number 92-GRD Protective Lens Guard is an easilyinstalled guard that provides protection against lens breakage. > Easy to install/attach > Mounting brackets for use with any beacon which has either 3/4" or 1/2" conduit opening. > D-04 90 Fieldstone Court ||||| Cheshire, CT 06410Ph: 203.699.3300 ||||| Fx: 203.699.3108 Ω Copyright 2004 Edwards 3-118 www.edwards-signals.com size="-1">

Open the catalog to page 1
AdaptaBeacon Accessories - 2

D-04 3-119 90 Fieldstone Court ||||| Cheshire, CT 06410Ph: 203.699.3300 > Copyright 2004 Edwards ||||| Fx: 203.699.3108 >

Open the catalog to page 2
