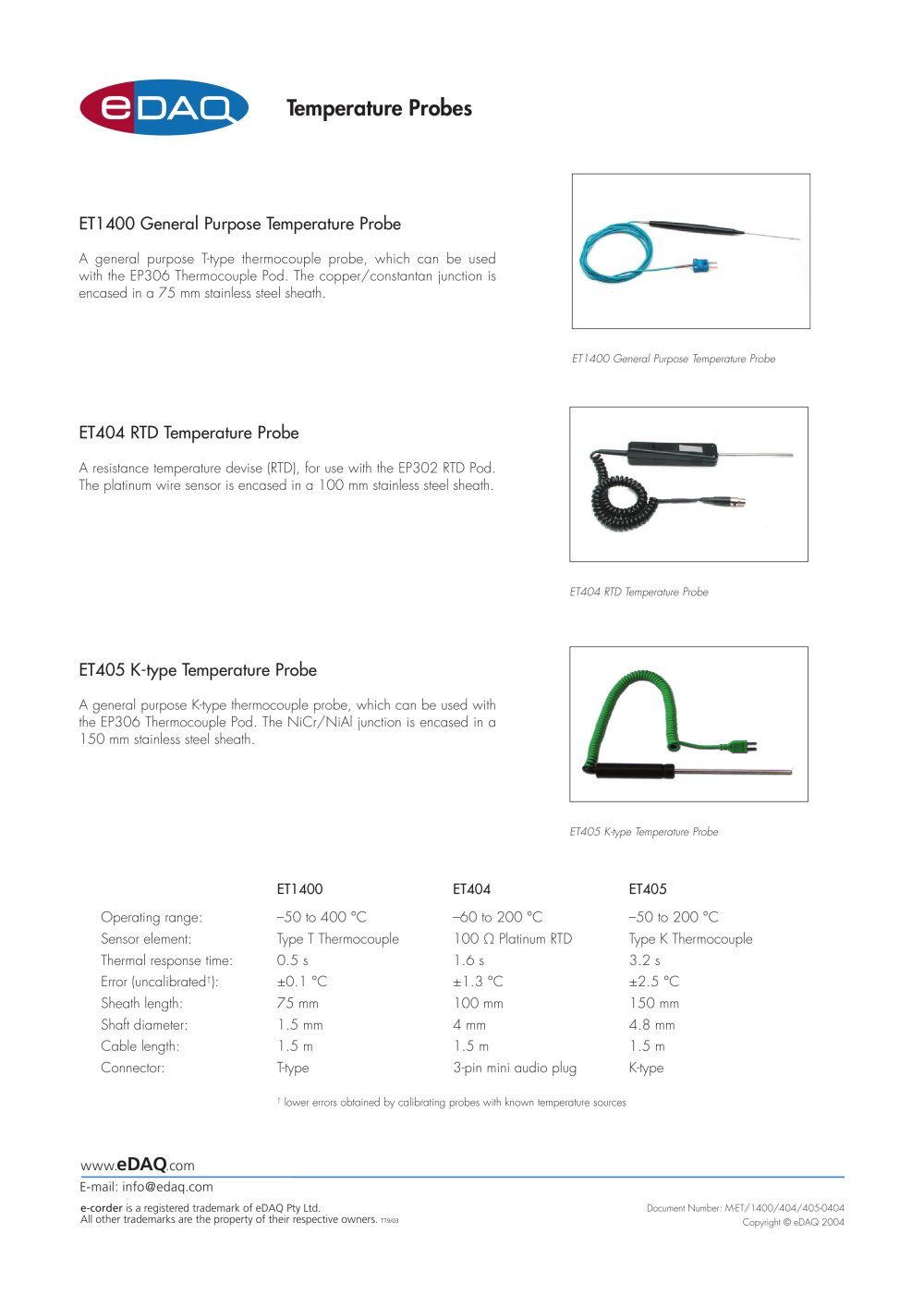

www.eDAQ.com E-mail: info@edaq.com e-corder is a registered trademark of eDAQ Pty Ltd. All other trademarks are the property of their respective owners. TT9/03 Document Number: M-ET/1400/404/405-0404 Copyright © eDAQ 2004 Temperature Probes ET1400 General Purpose Temperature Probe A general purpose T-type thermocouple probe, which can be used with the EP306 Thermocouple Pod. The copper/constantan junction is encased in a 75 mm stainless steel sheath. ET1400 General Purpose Temperature Probe ET404 RTD Temperature Probe A resistance temperature devise (RTD), for use with the EP302 RTD Pod. The platinum wire sensor is encased in a 100 mm stainless steel sheath. ET404 RTD Temperature Probe ET1400 ET404 ET405 Operating range: –50 to 400 °C –60 to 200 °C –50 to 200 °C Sensor element: Type T Thermocouple 100 Ù Platinum RTD Type K Thermocouple Thermal response time: 0.5 s 1.6 s 3.2 s Error (uncalibrated†): ±0.1 °C ±1.3 °C ±2.5 °C Sheath length: 75 mm 100 mm 150 mm Shaft diameter: 1.5 mm 4 mm 4.8 mm Cable length: 1.5 m 1.5 m 1.5 m Connector: T-type 3-pin mini audio plug K-type † lower errors obtained by calibrating probes with known temperature sources ET405 K-type Temperature Probe A general purpose K-type thermocouple probe, which can be used with the EP306 Thermocouple Pod. The NiCr/NiAl junction is encased in a 150 mm stainless steel sheath. ET405 K-type Temperature Probe
