section 1

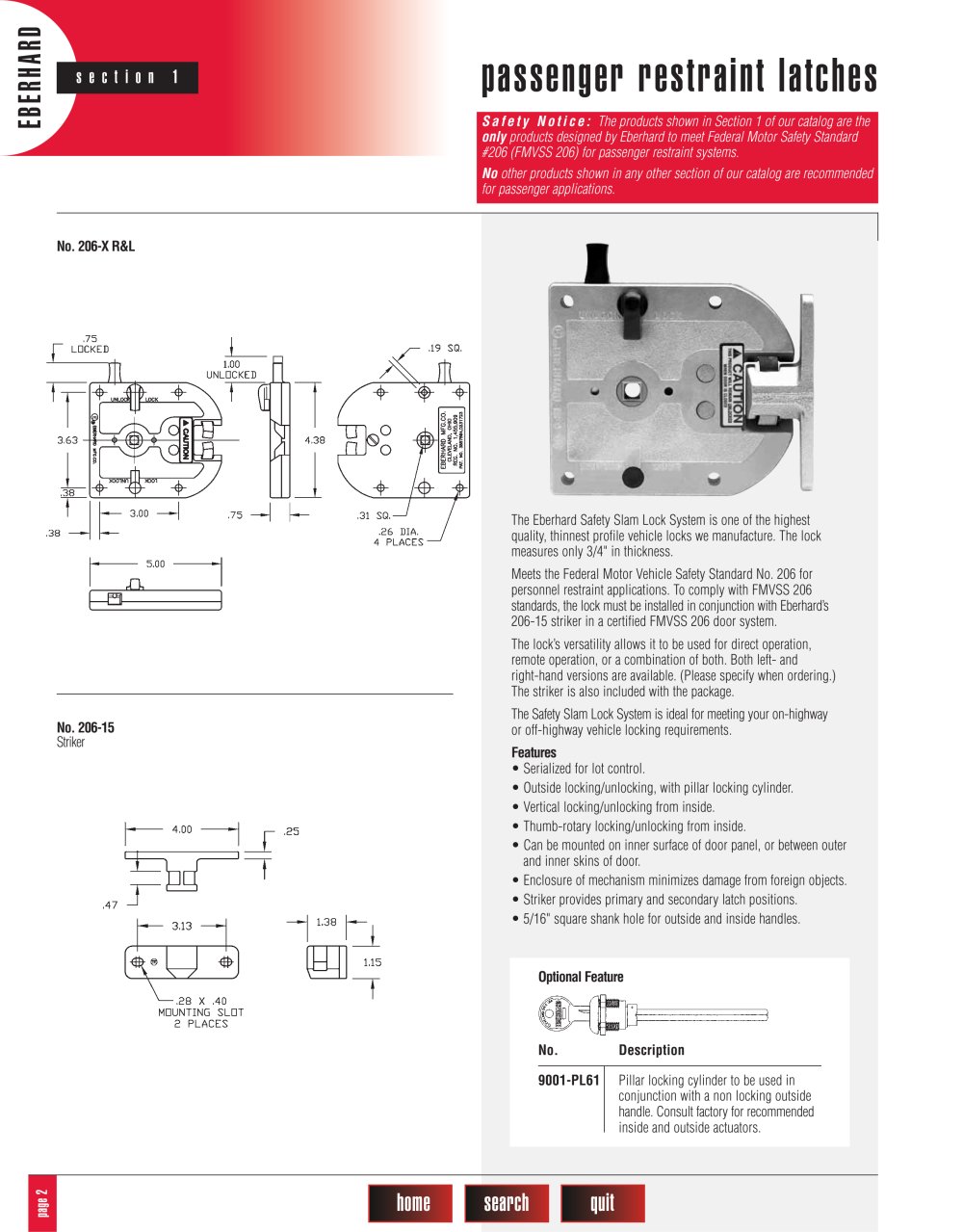

EBERHARD Safety Notice: The products shown in Section 1 of our catalog are the only products designed by Eberhard to meet Federal Motor Safety Standard#206 (FMVSS 206) for passenger restraint systems. No other products shown in any other section of our catalog are recommendedfor passenger applications. No. 206-X R&L
No. 206-15 The Eberhard Safety Slam Lock System is one of the highest quality, thinnest profile vehicle locks we manufacture. The lock
measures only 3/4" in thickness.Meets the Federal Motor Vehicle Safety Standard No. 206 for personnel restraint applications. To comply with FMVSS 206 standards, the lock must be installed in conjunction with Eberhard’s
206-15 striker in a certified FMVSS 206 door system.The lock’s versatility allows it to be used for direct operation,remote operation, or a combination of both. Both left- and right-hand versions are available. (Please specify when ordering.)
The striker is also included with the package.The Safety Slam Lock System is ideal for meeting your on-highwayor off-highway vehicle locking requirements. Features • Serialized for lot control.• Outside locking/unlocking, with pillar locking cylinder.
• Vertical locking/unlocking from inside.
• Thumb-rotary locking/unlocking from inside.
• Can be mounted on inner surface of door panel, or between outerand inner skins of door.• Enclosure of mechanism minimizes damage from foreign objects.• Striker provides primary and secondary latch positions.• 5/16" square shank hole for outside and inside handles. Striker Optional Feature No.Description9001-PL61 Pillar locking cylinder to be used inconjunction with a non locking outsidehandle. Consult factory for recommendedinside and outside
actuators.
