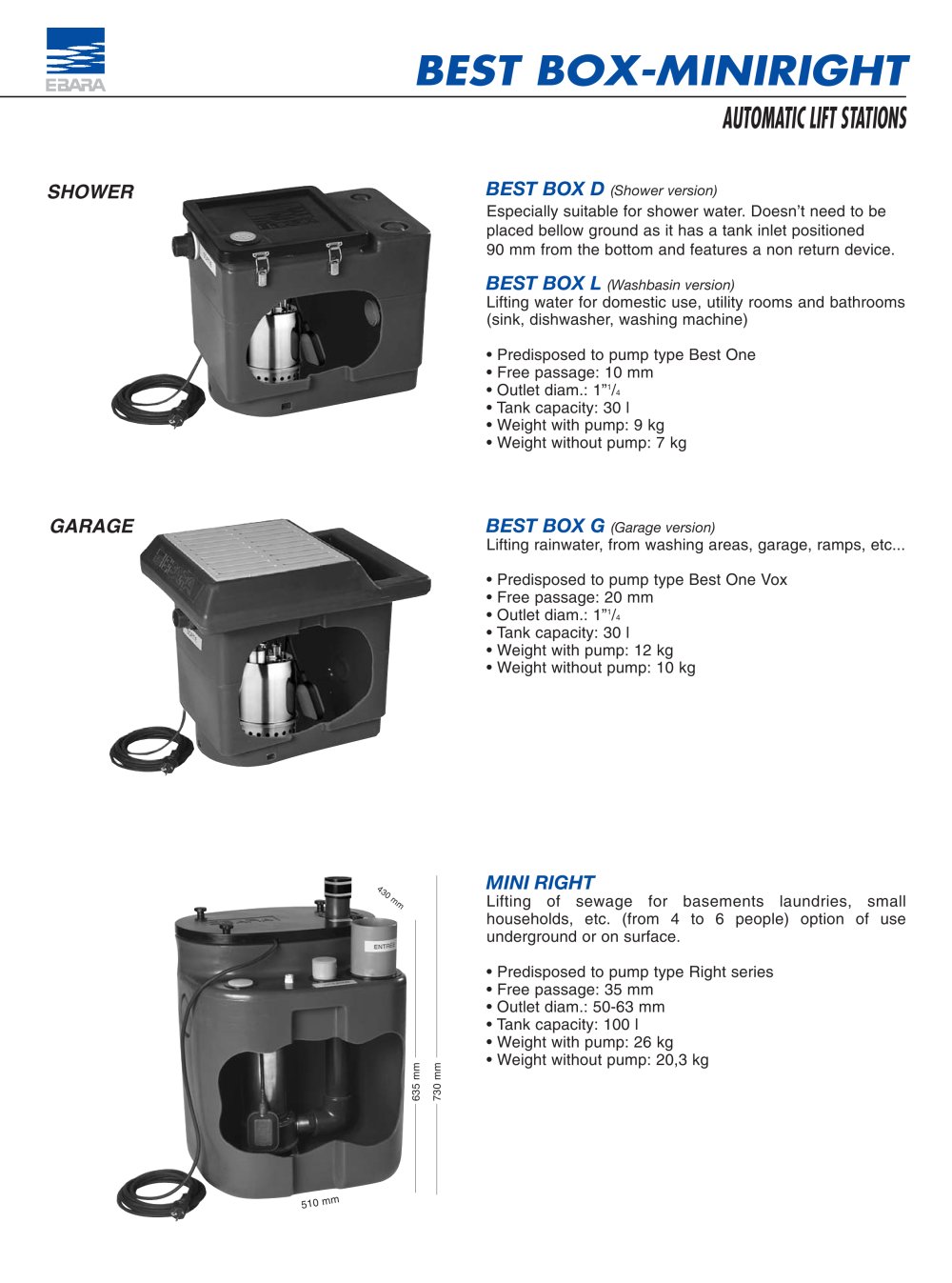

BEST BOX-MINIRIGHT

AUTOMATIC LIFT STATIONS

SHOWER BEST BOX D

(Shower version) Especially suitable for shower water. Doesn’t need to beplaced bellow ground as it has a tank inlet positioned 90 mm from the bottom and features a non return device.

BEST BOX L

(Washbasin version) Lifting water for domestic use, utility rooms and bathrooms(sink, dishwasher, washing machine)• Predisposed to pump type Best One • Free passage: 10 mm • Outlet diam.: 1”
1 /
4 • Tank capacity: 30 l • Weight with pump: 9 kg • Weight without pump: 7 kg

GARAGE BEST BOX G

(Garage version) Lifting rainwater, from washing areas, garage, ramps, etc...• Predisposed to pump type Best One Vox • Free passage: 20 mm • Outlet diam.: 1”
1 /
4 • Tank capacity: 30 l • Weight with pump: 12 kg • Weight without pump: 10 kg
430 mm

MINIRIGHT

Lifting of sewage for basements laundries, small households, etc. (from 4 to 6 people) option of use underground or on surface.• Predisposed to pump type Right series • Free passage: 35 mm • Outlet diam.: 50-63 mm • Tank capacity: 100 l • Weight with pump: 26 kg • Weight without pump: 20,3 kg
635 mm 730 mm 510 mm
