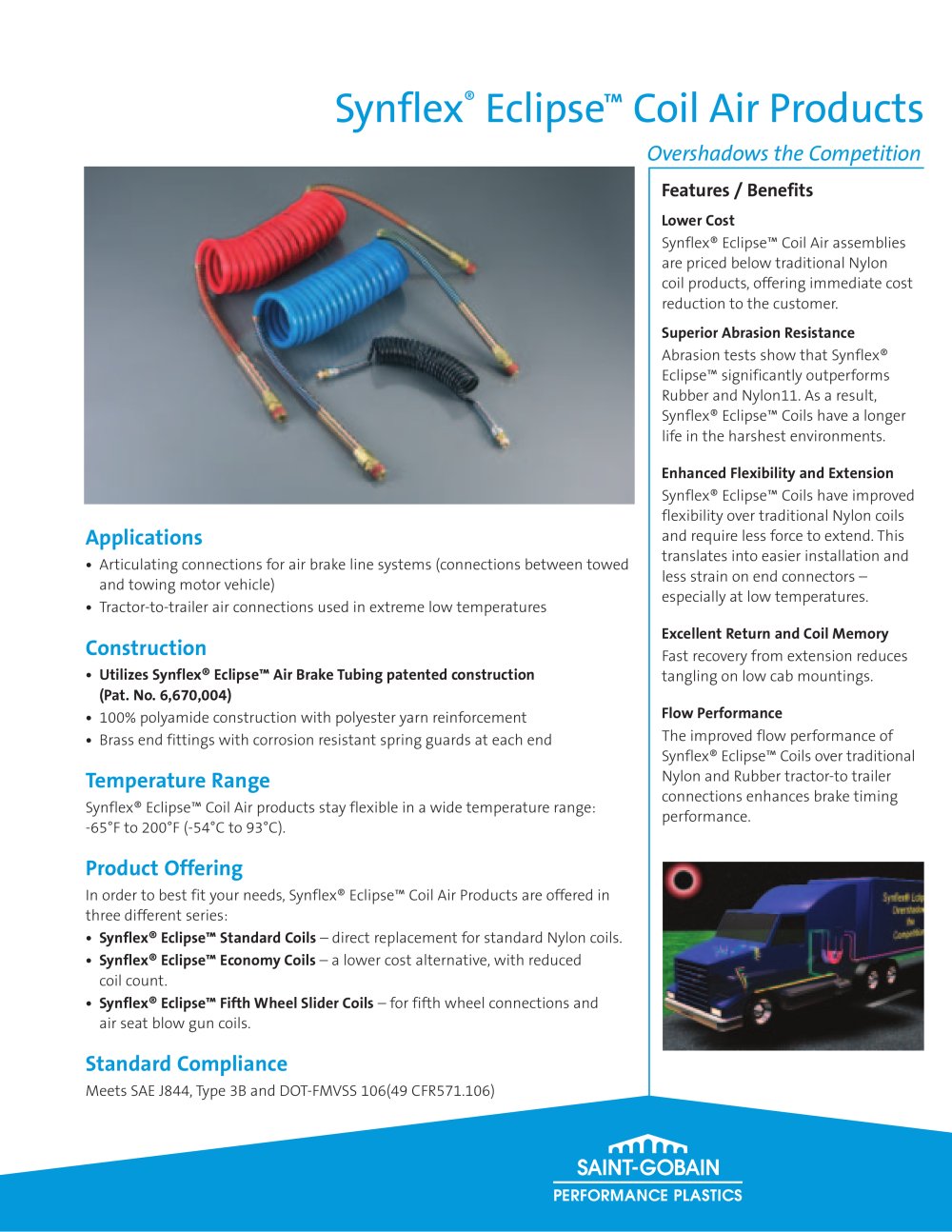

Synflex

®

Eclipse

™

Coil Air Products

Overshadows the Competition

Features / Benefits

Lower Cost Synflex® Eclipse™ Coil Air assembliesare priced below traditional Nylon coil products, offering immediate cost reduction to the customer. Superior Abrasion Resistance Abrasion tests show thatSynflex®Eclipse™ significantly outperforms Rubber and Nylon11. As a result, Synflex® Eclipse™ Coils have a longer life in the harshestenvironments. Enhanced Flexibility and Extension ExcellentReturn and Coil Memory Synflex® Eclipse™ Coils have improvedflexibility over traditional Nylon coils and require less force to extend. This translates into easier installation and less strain on end connectors – especially atlow temperatures. Fastrecovery from extension reducestangling on low cab mountings. Flow Performance The improved flow performance ofSynflex® Eclipse™ Coils over traditional Nylon and Rubber tractor-to trailer connections enhances brake timing performance.

Applications

• Articulating connections for air brake line systems (connections between towedand towing motor vehicle) • Tractor-to-trailer air connections used in extreme low temperatures

Construction

•Utilizes Synflex® Eclipse™ Air Brake Tubing patented construction (Pat. No. 6,670,004) • 100% polyamide construction with polyester yarn reinforcement • Brass end fittings with corrosion resistantspring guards ateach end

Temperature Range

Synflex® Eclipse™ Coil Air products stay flexible in a wide temperature range:-65°F to 200°F (-54°C to 93°C).

ProductOffering

In order to bestfityour needs, Synflex® Eclipse™ Coil Air Products are offered in three differentseries: •Synflex® Eclipse™ Standard Coils – directreplacementfor standard Nylon coils. •Synflex® Eclipse™ Economy Coils – a lower costalternative, with reduced coil count. •Synflex® Eclipse™ Fifth Wheel Slider Coils – for fifth wheel connections and air seatblow gun coils.

Standard Compliance

Meets SAE J844, Type 3B and DOT-FMVSS 106(49 CFR571.106)
