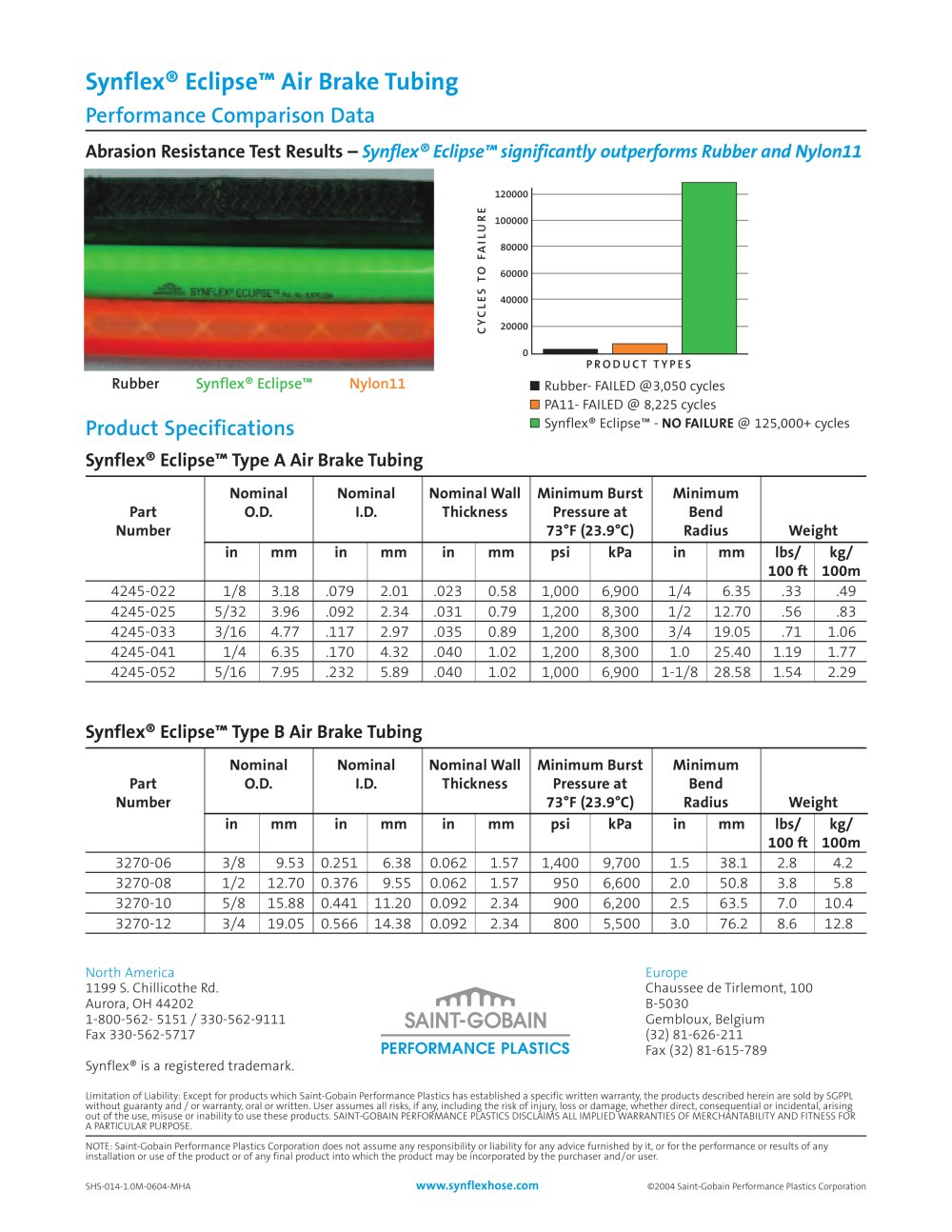

Synflex® Eclipse™ Air Brake Tubing

Performance Comparison Data

Abrasion Resistance Test Results - Synflex® Eclipse™ significantly outperforms Rubber and Nylon11

120000 100000

80000

60000

40000

20000

PRODUCT TYPES

■ Rubber- FAILED @3,050 cycles □ PA11- FAILED @ 8,225 cycles

■ Synflex® Eclipse™ - NO FAILURE @ 125,000+ cycles

Rubber

Product Specifications

Synflex® Eclipse™ Type A Air Brake Tubing


	Nominal		Nominal		Nominal Wall		Minimum Burst		Minimum
Part	O.D.		I.D.		Thickness		Pressure at		Bend
Number							73°F (23.9°C)		Radius		Weight
	in	mm	in	mm	in	mm		kPa	in	mm	lbs/ 100 ft	kg/ 100m
4245-022	1/8	3.18	.079	2.01	.023	0.58	1,000	6,900	1/4	6.35	.33	.49
4245-025	5/32	3.96	.092	2.34	.031	0.79	1,200	8,300	1/2	12.70	.56	.83
4245-033	3/16	4.77	.117	2.97	.035	0.89	1,200	8,300	3/4	19.05	.71	1.06
4245-041	1/4	6.35	.170	4.32	.040	1.02	1,200	8,300	1.0	25.40	1.19	1.77
4245-052	5/16	7.95	.232	5.89	.040	1.02	1,000	6,900	1-1/8	28.58	1.54	2.29

Synflex® Eclipse™ Type B Air Brake Tubing


	Nominal		Nominal		Nominal Wall		Minimum Burst		Minimum
Part	O.D.		I.D.		Thickness		Pressure at		Bend
Number							73°F (23.9°C)		Radius		Weight
	in	mm	in	mm	in	mm		kPa	in	mm	lbs/ 100 ft	kg/ 100m
3270-06	3/8	9.53	0.251	6.38	0.062	1.57	1,400	9,700	1.5	38.1	2.8	4.2
3270-08	1/2	12.70	0.376	9.55	0.062	1.57	950	6,600	2.0	50.8	3.8	5.8
3270-10	5/8	15.88	0.441	11.20	0.092	2.34	900	6,200	2.5	63.5	7.0	10.4
3270-12	3/4	19.05	0.566	14.38	0.092	2.34	800	5,500	3.0	76.2	8.6	12.8

North America

1199 S. Chillicothe Rd.

Aurora, OH 44202

1-800-562- 5151 / 330-562-9111

Fax 330-562-5717

Synflex® is a registered trademark.

Europe

Chaussee de Tirlemont, 100

B-5030

Gembloux, Belgium

(32) 81-626-211

Fax (32) 81-615-789

rfffYtYi

SAI NT-GOBAI N

PERFORMANCE PLASTICS

Limitation of Liability: Except for products which Saint-Gobain Performance Plastics has established a specific written warranty, the products described herein are sold by SGPPL without guaranty and / or warranty, oral or written. User assumes all risks, if any, including the risk of injury, loss or damage, whether direct, consequential or incidental, arising out of the use, misuse or inability to use these products. SAINT-GOBAIN PERFORMANCE PLASTICS DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR

A PARTICULAR PURPOSE.

NOTE: Saint-Gobain Performance Plastics Corporation does not assume any responsibility or liability for any advice furnished by it, or for the performance or results of any installation or use of the product or of any final product into which the product may be incorporated by the purchaser and/or user.

www.synflexhose.com

SHS-014-1.0M-0604-MHA
