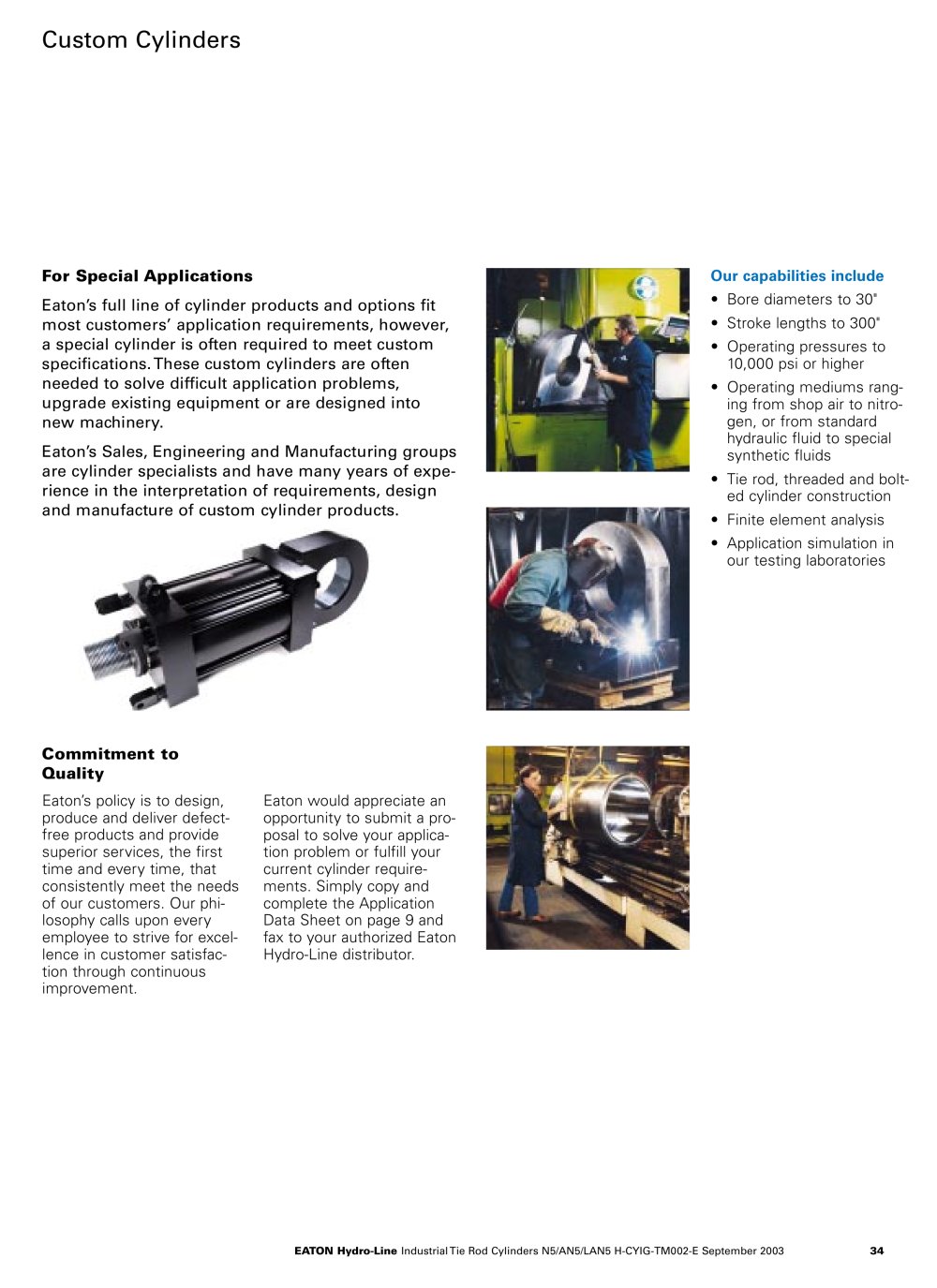

Custom Cylinders

For Special Applications

Our capabilities include

Eaton’s full line of cylinder products and options fitmost customers’ application requirements, however, a special cylinder is often required to meet custom specifications. These custom cylinders are often needed to solve difficult application problems, upgrade existing equipment or are designed into new machinery.Eaton’s Sales, Engineering and Manufacturing groupsare cylinder specialists and have many years of expe- rience in the interpretation of requirements, design and manufacture of custom cylinder products.

•Bore diameters to 30" •Stroke lengths to 300" •Operating pressures to10,000 psi or higher•Operating mediums rang-ing from shop air to nitro-gen, or from standard hydraulic fluid to special synthetic fluids•Tie rod, threaded and bolt-ed cylinder construction •Finite element analysis •Application simulation inour testing laboratories

Commitment to Quality

Eaton’s policy is to design,produce and deliver defect-free products and provide superior services, the firsttime and every time, thatconsistently meet the needs of our customers. Our phi-losophy calls upon everyemployee to strive for excel- lence in customer satisfac-tion through continuousimprovement. Eaton would appreciate anopportunity to submit a pro-posal to solve your applica-tion problem or fulfill your current cylinder require-ments. Simply copy andcomplete the Application Data Sheet on page 9 andfax to your authorized EatonHydro-Line distributor.
