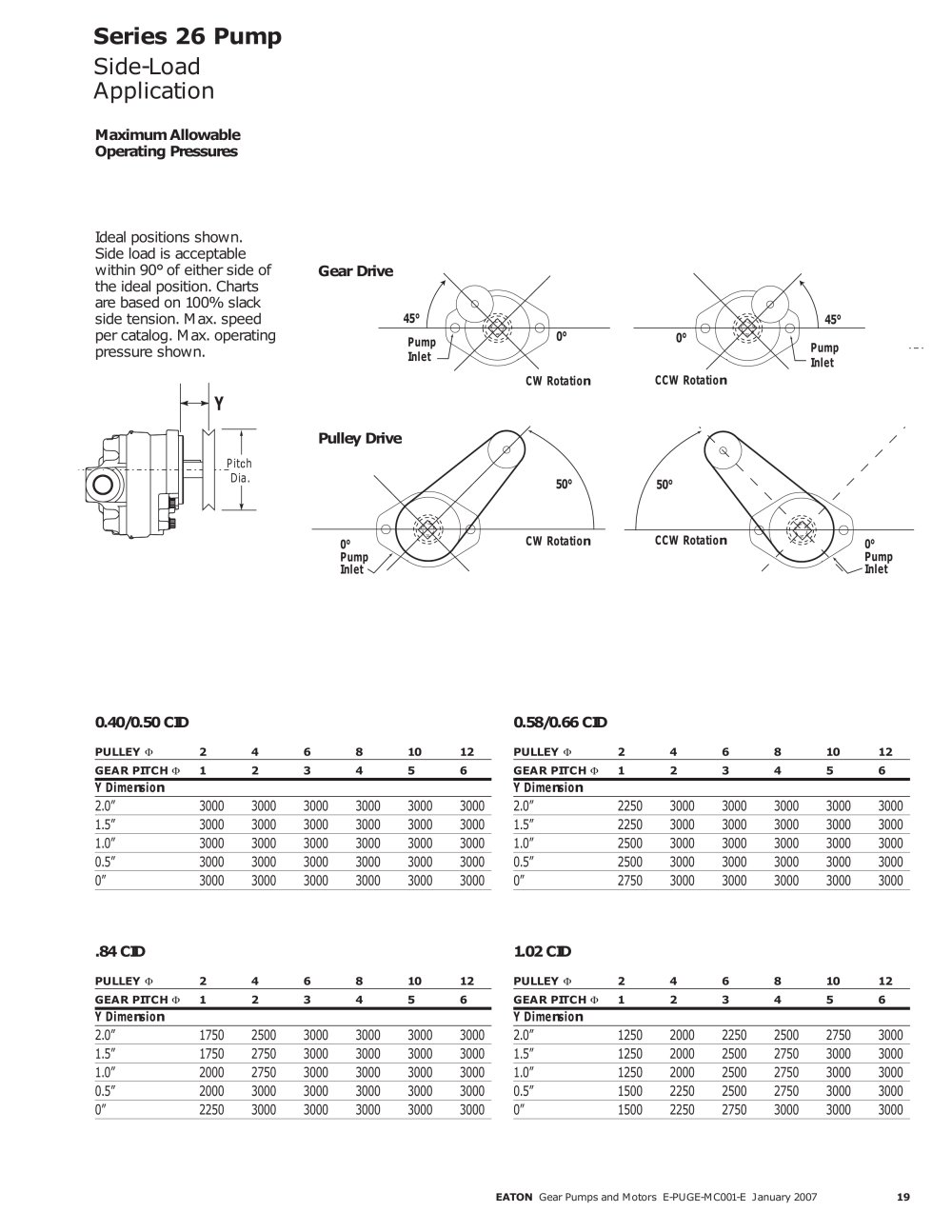

Series 26 Pump Side-LoadApplication

Maximum AllowableOperating Pressures Ideal positions shown. Side load is acceptablewithin 90°of either side of the ideal position. Chartsare based on 100% slackside tension. Max. speedper catalog. Max. operatingpressure shown. Gear Drive Pulley Drive

45° 50° PumpInletPumpInlet 0° 0°45° CW Rotation CW Rotation CCW Rotation CCW Rotation

Y

Pit c hDia. 50° 0°Pump Inlet 0°Pump Inlet

0.40/0.50 CID 0.58/0.66 CID

PULLEY 2 4 6 8 10 12 PULLEY 2 4 6 8 10 12 GEAR PITCH 1 2 3 4 5 6 GEAR PITCH 1 2 3 4 5 6 Y Dimension Y Dimension 2.0”300030003000300030003000 2.0”225030003000300030003000 1.5”300030003000300030003000 1.5”225030003000300030003000 1.0”300030003000300030003000 1.0”250030003000300030003000 0.5”300030003000300030003000 0.5”250030003000300030003000 0”300030003000300030003000 0”275030003000300030003000

.84 CID 1.02 CID

PULLEY 2 4 6 8 10 12 PULLEY 2 4 6 8 10 12 GEAR PITCH 1 2 3 4 5 6 GEAR PITCH 1 2 3 4 5 6 Y Dimension Y Dimension 2.0”175025003000300030003000 2.0”125020002250250027503000 1.5”175027503000300030003000 1.5”125020002500275030003000 1.0”200027503000300030003000 1.0”125020002500275030003000 0.5”200030003000300030003000 0.5”150022502500275030003000 0”225030003000300030003000 0”150022502750300030003000
Gear Pumps and Motors E-PUGE-MC001-E January 2007 19EATON
