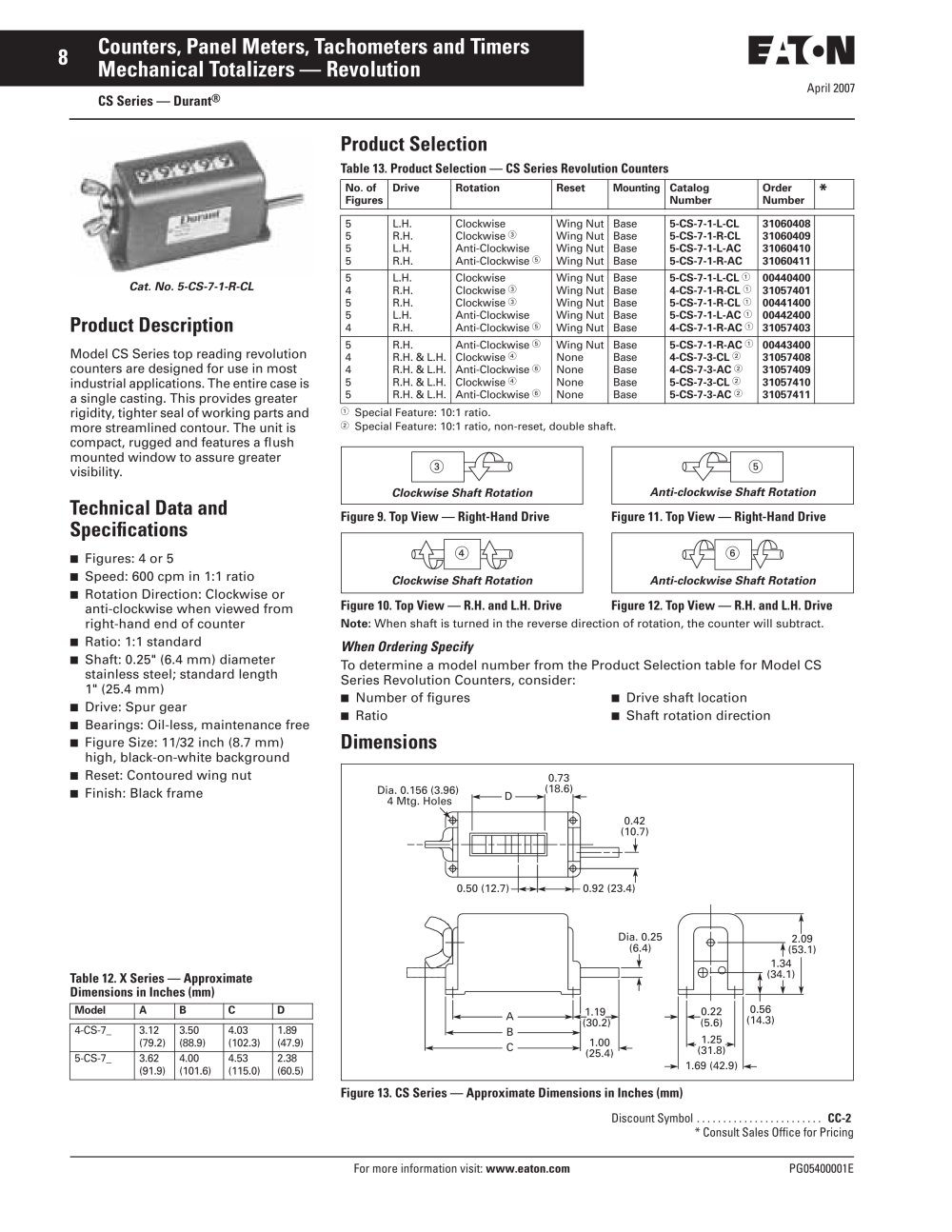

Counters, Panel Meters, Tachometers and Timers Mechanical Totalizers — Revolution

CS Series — Durant®

Product Selection

Table 13. Product Selection — CS Series Revolution Counters


No. of	Drive	Rotation	Reset
Figures

Mounting

Catalog Number

Order Number


5	L.H.	Clockwise	Wing Nut	Base	5-CS-7-1-L-CL	31060408
5	R.H.	Clockwise ©	Wing Nut	Base	5-CS-7-1-R-CL	31060409
5	L.H.	Anti-Clockwise	Wing Nut	Base	5-CS-7-1-L-AC	31060410
5	R.H.	Anti-Clockwise ©	Wing Nut	Base	5-CS-7-1-R-AC	31060411
5	L.H.	Clockwise	Wing Nut	Base	5-CS-7-1-L-CL ©	00440400
4	R.H.	Clockwise ^©	Wing Nut	Base	4-CS-7-1-R-CL ©	31057401
5	R.H.	Clockwise ©	Wing Nut	Base	5-CS-7-1-R-CL ©	00441400
5	L.H.	Anti-Clockwise	Wing Nut	Base	5-CS-7-1-L-AC ©	00442400
4	R.H.	Anti-Clockwise ^©	Wing Nut	Base	4-CS-7-1-R-AC ©	31057403
5	R.H.	Anti-Clockwise ^©	Wing Nut	Base	5-CS-7-1-R-AC ©	00443400
4	R.H. & L.H.	Clockwise ©	None	Base	4-CS-7-3-CL ©	31057408
4	R.H. & L.H.	Anti-Clockwise ©	None	Base	4-CS-7-3-AC ©	31057409
5	R.H. & L.H.	Clockwise ^©	None	Base	5-CS-7-3-CL ^©	31057410
5	R.H. & L.H.	Anti-Clockwise ^©	None	Base	5-CS-7-3-AC ^©	31057411

Cat. No. 5-CS-7-1-R-CL

Product Description

Model CS Series top reading revolution counters are designed for use in most industrial applications. The entire case is a single casting. This provides greater rigidity, tighter seal of working parts and more streamlined contour. The unit is compact, rugged and features a flush mounted window to assure greater visibility.

Technical Data and Specifications

■ Figures: 4 or 5

■ Speed: 600 cpm in 1:1 ratio

■ Rotation Direction: Clockwise or anti-clockwise when viewed from right-hand end of counter

■ Ratio: 1:1 standard

■ Shaft: 0.25" (6.4 mm) diameter stainless steel; standard length 1" (25.4 mm)

■ Drive: Spur gear

■ Bearings: Oil-less, maintenance free

■ Figure Size: 11/32 inch (8.7 mm) high, black-on-white background

■ Reset: Contoured wing nut

■ Finish: Black frame

Special Feature: 10:1 ratio.

Special Feature: 10:1 ratio, non-reset, double shaft.


		©
	*Clockwise Shaft Rotation*


	^\_
	*Anti-clockwise Shaft Rotation*

Figure 11. Top View — Right-Hand Drive

Figure 9. Top View — Right-Hand Drive


			to?
	*Clockwise Shaft Rotation*


		©
	*Anti-clockwise Shaft Rotation*

Figure 10. Top View — R.H. and L.H. Drive Figure 12. Top View — R.H. and L.H. Drive

Note: When shaft is turned in the reverse direction of rotation, the counter will subtract.

When Ordering Specify

To determine a model number from the Product Selection table for Model CS Series Revolution Counters, consider:

■ Number of figures ■ Drive shaft location

■ Ratio ■ Shaft rotation direction

Dimensions

0.73 (18.6)

Dia. 0.156 (3.96) 4 Mtg. Holes

0.42 (10.7)

0.50 (12.7)

0.92 (23.4)

Dia. 0.25 (6.4)

2.09

f (53.1)

1.34 (34.1)


		1—1-
-,_
	1	1.19 _
		(30.2)
		1.00

Table 12. X Series — Approximate Dimensions in Inches (mm)

IA J B J C J D

0.56 (14.3)

Model

0.22 "(5.6)

1.25

(31.8)

1.69 (42.9)


4-CS-7_	3.12 (79.2)	3.50 (88.9)	4.03 (102.3)	1.89 (47.9)
5-CS-7_	3.62 (91.9)	4.00 (101.6)	4.53 (115.0)	2.38 (60.5)

Figure 13. CS Series — Approximate Dimensions in Inches (mm)

Discount Symbol

........................ CC-2

* Consult Sales Office for Pricing

For more information visit: www.eaton.com
