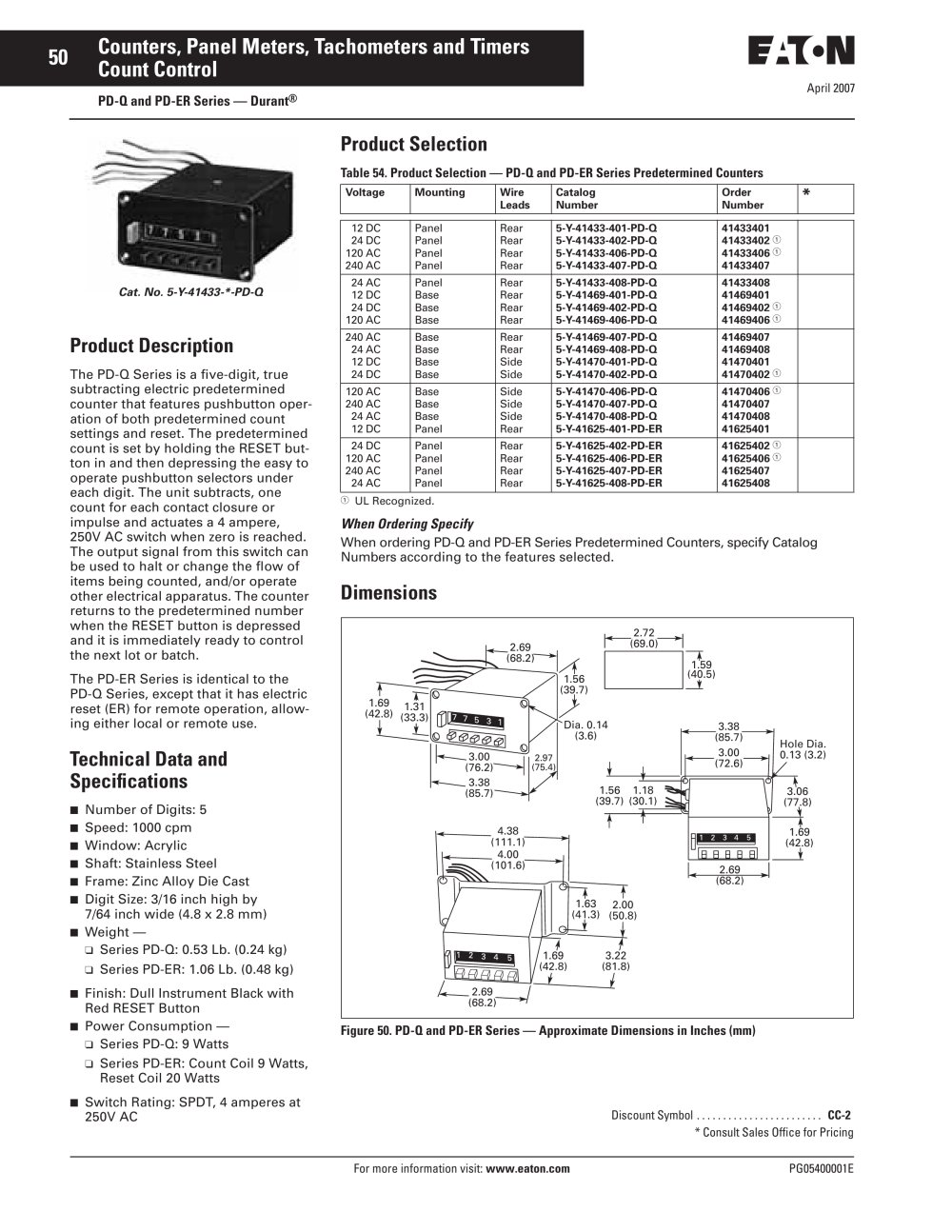

Counters, Panel Meters, Tachometers and Timers Count Control

Product Selection

Table 54. Product Selection — PD-Q and PD-ER Series Predetermined Counters

Voltage

Mounting

Wire Leads

Catalog Number

Order Number


12 DC	Panel	Rear	5-Y-41433-401-PD-Q	41433401
24 DC	Panel	Rear	5-Y-41433-402-PD-Q	41433402 ©
120 AC	Panel	Rear	5-Y-41433-406-PD-Q	41433406 ©
240 AC	Panel	Rear	5-Y-41433-407-PD-Q	41433407
24 AC	Panel	Rear	5-Y-41433-408-PD-Q	41433408
12 DC	Base	Rear	5-Y-41469-401-PD-Q	41469401
24 DC	Base	Rear	5-Y-41469-402-PD-Q	41469402 ^©
120 AC	Base	Rear	5-Y-41469-406-PD-Q	41469406 ^©
240 AC	Base	Rear	5-Y-41469-407-PD-Q	41469407
24 AC	Base	Rear	5-Y-41469-408-PD-Q	41469408
12 DC	Base	Side	5-Y-41470-401-PD-Q	41470401
24 DC	Base	Side	5-Y-41470-402-PD-Q	41470402 ^©
120 AC	Base	Side	5-Y-41470-406-PD-Q	41470406 ^©
240 AC	Base	Side	5-Y-41470-407-PD-Q	41470407
24 AC	Base	Side	5-Y-41470-408-PD-Q	41470408
12 DC	Panel	Rear	5-Y-41625-401-PD-ER	41625401
24 DC	Panel	Rear	5-Y-41625-402-PD-ER	41625402 ^©
120 AC	Panel	Rear	5-Y-41625-406-PD-ER	41625406 ^©
240 AC	Panel	Rear	5-Y-41625-407-PD-ER	41625407
24 AC	Panel	Rear	5-Y-41625-408-PD-ER	41625408

Cat. No. 5-Y-41433-*-PD-Q

Product Description

The PD-Q Series is a five-digit, true subtracting electric predetermined counter that features pushbutton operation of both predetermined count settings and reset. The predetermined count is set by holding the RESET button in and then depressing the easy to operate pushbutton selectors under each digit. The unit subtracts, one count for each contact closure or impulse and actuates a 4 ampere, 250V AC switch when zero is reached. The output signal from this switch can be used to halt or change the flow of items being counted, and/or operate other electrical apparatus. The counter returns to the predetermined number when the RESET button is depressed and it is immediately ready to control the next lot or batch.

The PD-ER Series is identical to the PD-Q Series, except that it has electric reset (ER) for remote operation, allowing either local or remote use.

Technical Data and Specifications

■ Number of Digits: 5

■ Speed:1000 cpm

■ Window: Acrylic

■ Shaft: Stainless Steel

■ Frame: Zinc Alloy Die Cast

■ Digit Size: 3/16 inch high by 7/64 inch wide (4.8 x 2.8 mm)

■ Weight —

□ Series PD-Q: 0.53 Lb. (0.24 kg)

□ Series PD-ER: 1.06 Lb. (0.48 kg)

■ Finish: Dull Instrument Black with Red RESET Button

■ Power Consumption —

□ Series PD-Q: 9 Watts

□ Series PD-ER: Count Coil 9 Watts,

Reset Coil 20 Watts

■ Switch Rating: SPDT, 4 amperes at

250V AC

When Ordering Specify

When ordering PD-Q and PD-ER Series Predetermined Counters, specify Catalog Numbers according to the features selected.

Dimensions


	_u_2.72_„
	(69.0)

		1.59
		(40.5)

2.69

(68.2)

1.56 (39.7)

1.69 ₁?T ^(42.8> (33.3)

Dia. 0.14

(3.6)

3.38 (85.7)

3.00 (72.6)

Hole Dia. 0.13 (3.2)

2.97 (75.4)1

\*--

^(76.2)—*l

_3.38 IX'

(85.7)---*Jr

1.56 1.18 (39.7) (30.1)

—V

3.06 (77.8)

1.69 (42.8)

4.38 (111.1) 4.00 (101.6)

2.69

(68.2)

2.00 (50.8)

1.63

1.69 (42.8)

3.22 (81.8)

2.69 (68.2)

Figure 50. PD-Q and PD-ER Series — Approximate Dimensions in Inches (mm)

Discount Symbol

.................. CC-2

* Consult Sales Office for Pricing

For more information visit: www.eaton.com

PG05400001E
