F;T.N

April 2007

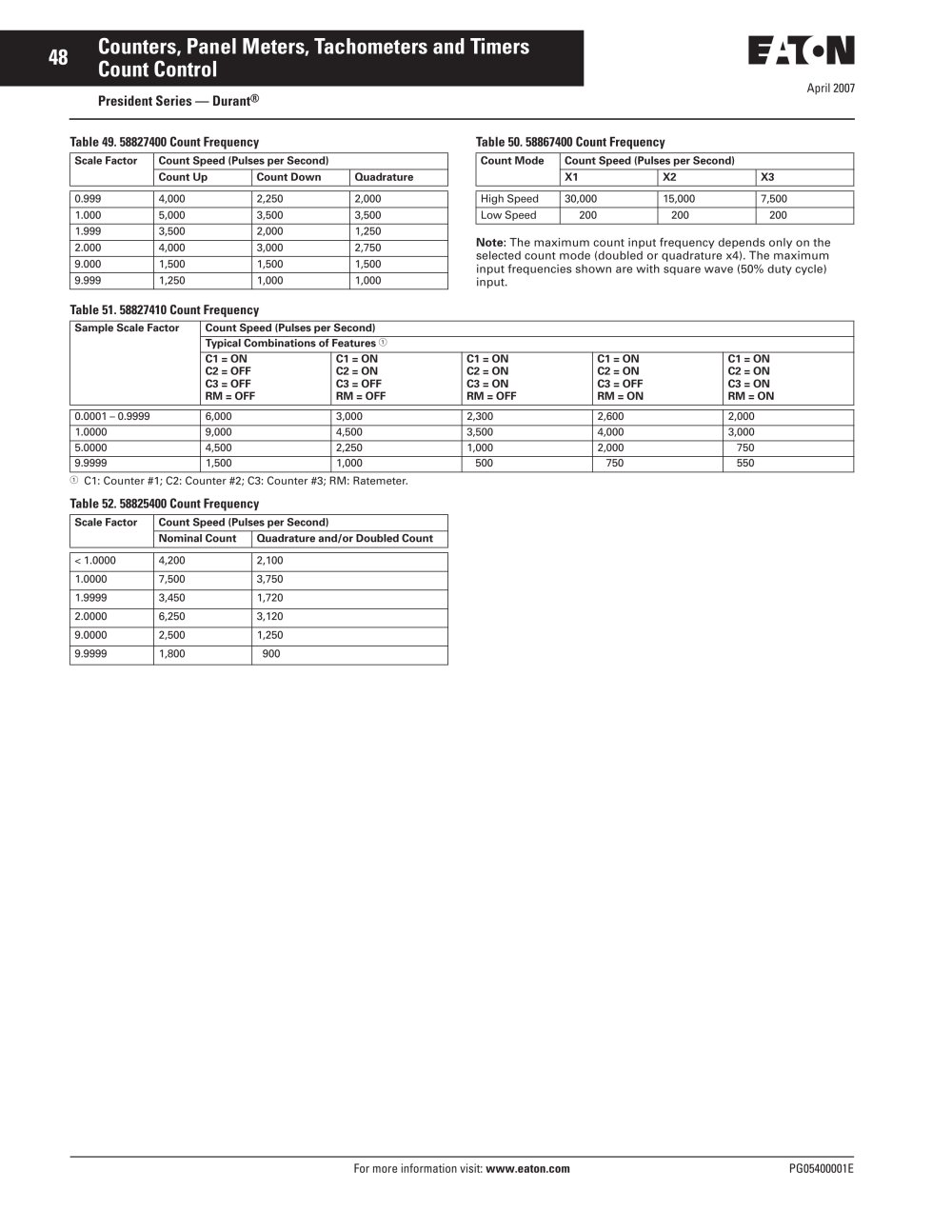

Counters, Panel Meters, Tachometers and Timers Count Control

President Series — Durant®

Table 49. 58827400 Count Frequency

I Scale Factor I Count Speed (Pulses per Second)

Table 50. 58867400 Count Frequency


Count Mode	Count Speed (Pulses per Second)
Count Mode	X1	X2	X3
High Speed	30,000	15,000	7,500
Low Speed	200	200	200


	Count Up	Count Down	Quadrature
0.999	4,000	2,250	2,000
1.000	5,000	3,500	3,500
1.999	3,500	2,000	1,250
2.000	4,000	3,000	2,750
9.000	1,500	1,500	1,500
9.999	1,250	1,000	1,000

Note: The maximum count input frequency depends only on the selected count mode (doubled or quadrature x4). The maximum input frequencies shown are with square wave (50% duty cycle) input.

Table 51. 58827410 Count Frequency


Sample Scale Factor	Count Speed (Pulses per Second)
	Typical Combinations of Features ©
	C1 = ON C2 = OFF C3 = OFF RM = OFF	C1 = ON C2 = ON C3 = OFF RM = OFF	C1 = ON C2 = ON C3 = ON RM = OFF	C1 = ON C2 = ON C3 = OFF RM = ON	C1 = ON C2 = ON C3 = ON RM = ON
0.0001 - 0.9999	6,000	3,000	2,300	2,600	2,000
1.0000	9,000	4,500	3,500	4,000	3,000
5.0000	4,500	2,250	1,000	2,000	750
9.9999	1,500	1,000	500	750	550


	Scale Factor	Count Speed (Pulses per Second)
		Nominal Count \| Quadrature and/or Doubled Count


< 1.0000	4,200	2,100
1.0000	7,500	3,750
1.9999	3,450	1,720
2.0000	6,250	3,120
9.0000	2,500	1,250
9.9999	1,800	900

For more information visit: www.eaton.com

PG05400001E
