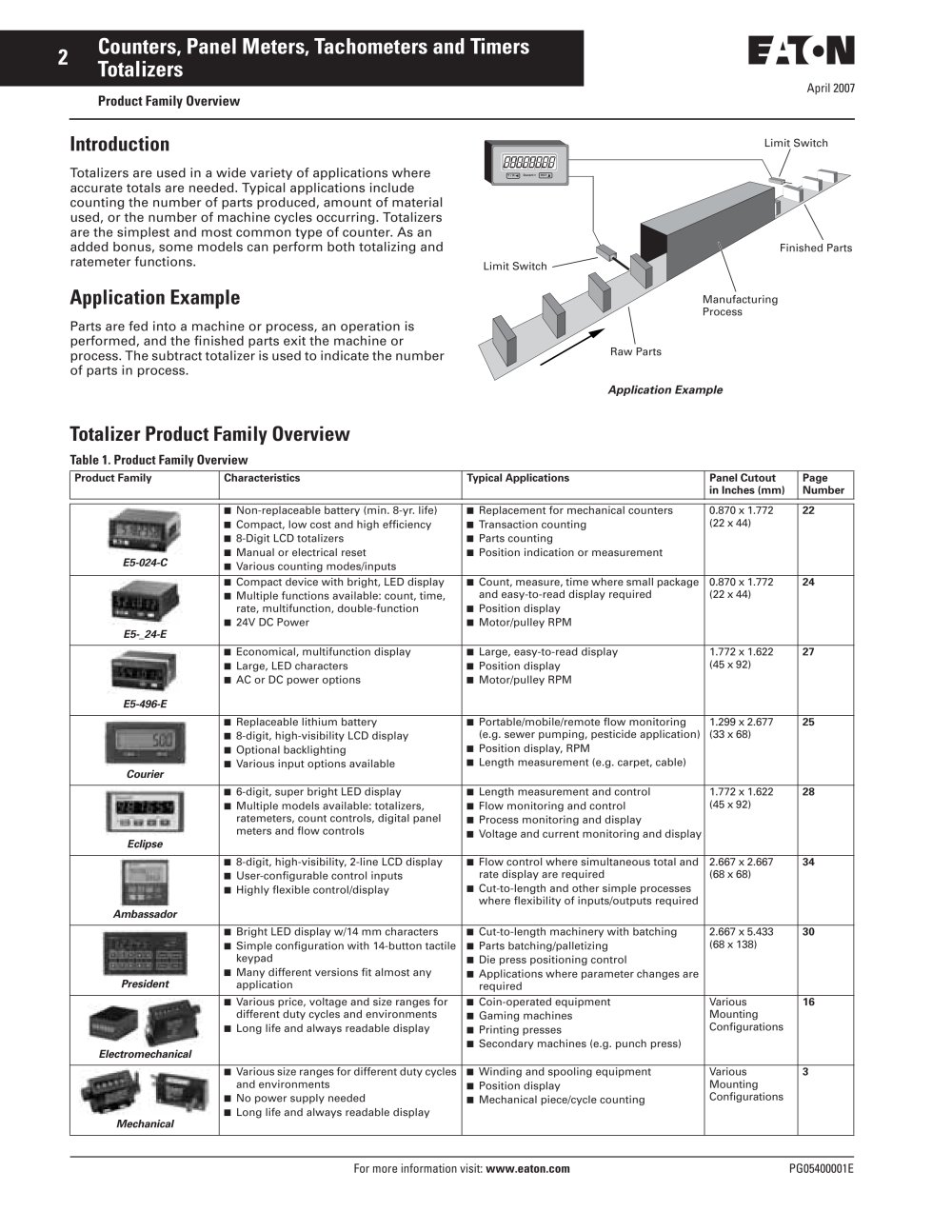

Specific Control & Display Products - 9191 2 Counters, Panel Meters, Tachometers and Timers Totalizers

April 2007

Product Family Overview

Introduction

Totalizers are used in a wide variety of applications where accurate totals are needed. Typical applications include counting the number of parts produced, amount of material used, or the number of machine cycles occurring. Totalizers are the simplest and most common type of counter. As an added bonus, some models can perform both totalizing and ratemeter functions.

® RSTT / RDurant Finished Parts Limit Switch Limit Switch

Application Example

ManufacturingProcess

Parts are fed into a machine or process, an operation is performed, and the finished parts exit the machine or process. The subtract totalizer is used to indicate the number of parts in process.

Raw Parts

Application Example

Totalizer Product Family Overview

Table 1. Product Family Overview

Product FamilyCharacteristicsTypical ApplicationsPanel Cutoutin Inches (mm)PageNumber Non-replaceable battery (min. 8-yr. life) Replacement for mechanical counters 22 Compact, low cost and high efficiency Transaction counting 8-Digit LCD totalizers Parts counting Manual or electrical reset Position indication or measurement0.870 x 1.772(22 x 44) E5-024-C Various counting modes/inputs Compact device with bright, LED display Count, measure, time where small package and easy-to-read display required 24 Multiple functions available: count, time, rate, multifunction, double-function Position display 24V DC Power Motor/pulley RPM0.870 x 1.772(22 x 44) E5-_24-E Economical, multifunction display Large, easy-to-read display 27 Large, LED characters Position display AC or DC power options Motor/pulley RPM1.772 x 1.622(45 x 92) E5-496-E Replaceable lithium battery Portable/mobile/remote flow monitoring (e.g. sewer pumping, pesticide application) 25 8-digit, high-visibility LCD display Optional backlighting Position display, RPM Various input options available Length measurement (e.g. carpet, cable)1.299 x 2.677(33 x 68) Courier 6-digit, super bright LED display Length measurement and control 28 Multiple models available: totalizers, ratemeters, count controls, digital panel meters and flow controls Flow monitoring and control Process monitoring and display Voltage and current monitoring and display1.772 x 1.622(45 x 92) Eclipse 8-digit, high-visibility, 2-line LCD display Flow control where simultaneous total and rate display are required 34 User-configurable control inputs Highly flexible control/display Cut-to-length and other simple processes where flexibility of inputs/outputs required2.667 x 2.667(68 x 68) Ambassador Bright LED display w/14 mm characters Cut-to-length machinery with batching 30 Simple configuration with 14-button tactile keypad Parts batching/palletizing Die press positioning control Many different versions fit almost any application Applications where parameter changes are required2.667 x 5.433(68 x 138) President 16 Various price, voltage and size ranges for different duty cycles and environments Coin-operated equipment Gaming machines Long life and always readable display Printing presses Secondary machines (e.g. punch press)Various Mounting Configurations Electromechanical 3 Various size ranges for different duty cycles and environments Winding and spooling equipment Position display No power supply needed Mechanical piece/cycle countingVarious Mounting Configurations Long life and always readable display Mechanical
