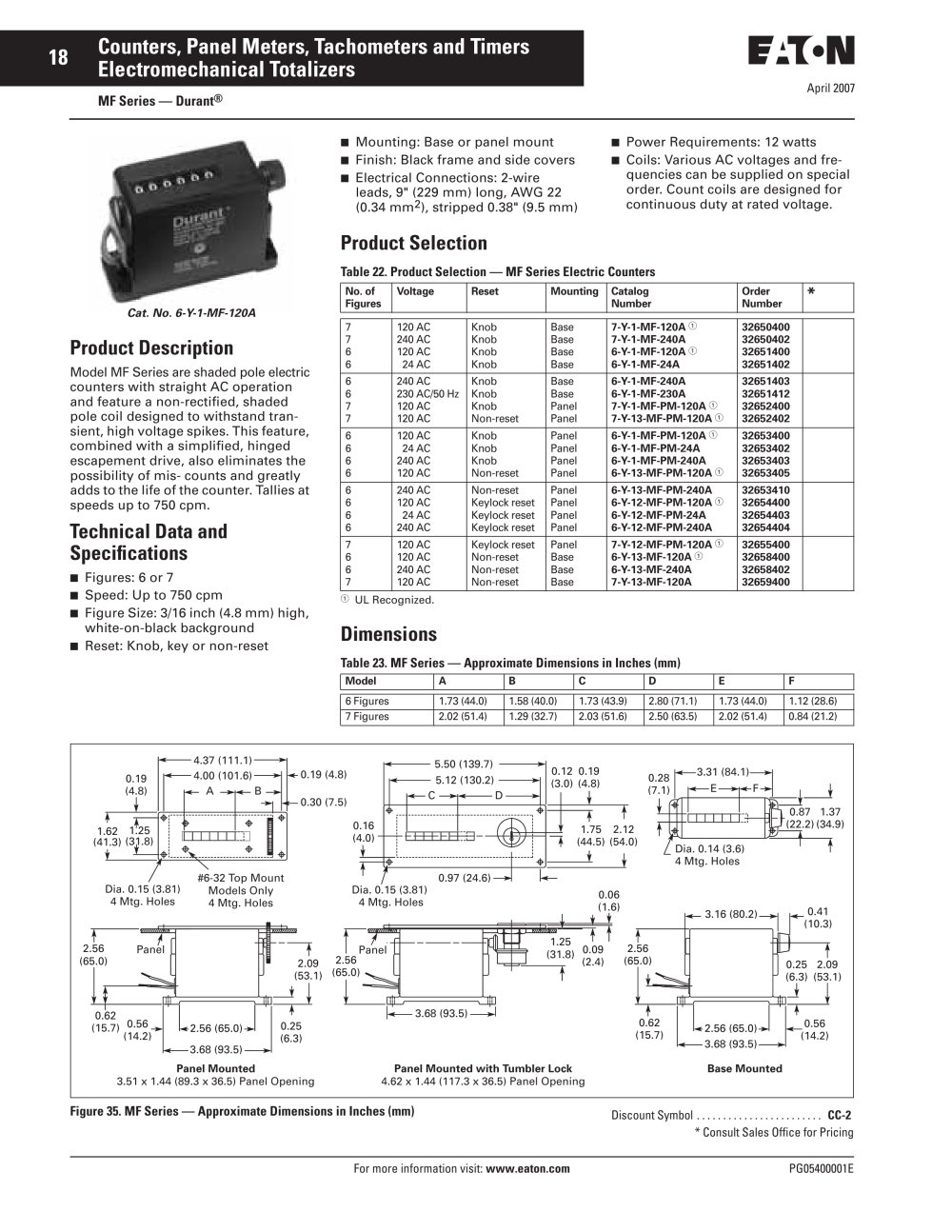

Counters, Panel Meters, Tachometers and Timers Electromechanical Totalizers


No. of	Voltage	Reset	Mounting	Catalog	Order	*
Figures				Number	Number

Cat. No. 6-Y-1-MF-120A

Product Description

Model MF Series are shaded pole electric counters with straight AC operation and feature a non-rectified, shaded pole coil designed to withstand transient, high voltage spikes. This feature, combined with a simplified, hinged escapement drive, also eliminates the possibility of mis- counts and greatly adds to the life of the counter. Tallies at speeds up to 750 cpm.

Technical Data and Specifications

■ Figures: 6 or 7

■ Speed: Up to 750 cpm

■ Figure Size: 3/16 inch (4.8 mm) high, white-on-black background

■ Reset: Knob, key or non-reset


7	120 AC	Knob	Base	7-Y-1-MF-120A ©	32650400
7	240 AC	Knob	Base	7-Y-1-MF-240A	32650402
6	120 AC	Knob	Base	6-Y-1-MF-120A ©	32651400
6	24 AC	Knob	Base	6-Y-1-MF-24A	32651402
6	240 AC	Knob	Base	6-Y-1-MF-240A	32651403
6	230 AC/50 Hz	Knob	Base	6-Y-1-MF-230A	32651412
7	120 AC	Knob	Panel	7-Y-1-MF-PM-120A ©	32652400
7	120 AC	Non-reset	Panel	7-Y-13-MF-PM-120A ©	32652402
6	120 AC	Knob	Panel	6-Y-1-MF-PM-120A ©	32653400
6	24 AC	Knob	Panel	6-Y-1-MF-PM-24A	32653402
6	240 AC	Knob	Panel	6-Y-1-MF-PM-240A	32653403
6	120 AC	Non-reset	Panel	6-Y-13-MF-PM-120A ©	32653405
6	240 AC	Non-reset	Panel	6-Y-13-MF-PM-240A	32653410
6	120 AC	Keylock reset	Panel	6-Y-12-MF-PM-120A ©	32654400
6	24 AC	Keylock reset	Panel	6-Y-12-MF-PM-24A	32654403
6	240 AC	Keylock reset	Panel	6-Y-12-MF-PM-240A	32654404
7	120 AC	Keylock reset	Panel	7-Y-12-MF-PM-120A ^©	32655400
6	120 AC	Non-reset	Base	6-Y-13-MF-120A ©	32658400
6	240 AC	Non-reset	Base	6-Y-13-MF-240A	32658402
7	120 AC	Non-reset	Base	7-Y-13-MF-120A	32659400

Dimensions

Table 23. MF Series — Approximate Dimensions in Inches (mm)


Model	A	B	C	D	E	F
6 Figures	1.73 (44.0)	1.58 (40.0)	1.73 (43.9)	2.80 (71.1)	1.73 (44.0)	1.12 (28.6)
7 Figures	2.02 (51.4)	1.29 (32.7)	2.03 (51.6)	2.50 (63.5)	2.02 (51.4)	0.84 (21.2)

4.37 (111.1)

-4.00 (101.6)

5.50 (139.7) 5.12 (130.2)

0.12 0.19 (3.0) (4.8)

3.31 (84.1)

E—«-W-F-H

-0.19 (4.8)

0.28 (7.1) I

0.19 (4.8)

C-»-t-«-D-H I

0.30 (7.5)

2.12

0.87 1.37 (22.2)(34.9)

"f »

0.16 (4.0) i_

1.62 1^T25 (41.3) (31.8) t_

1.75

......

(44.5) (54.0)

Dia. 0.14 (3.6) 4 Mtg. Holes

0.97 (24.6)

#6-32 Top Mount Models Only 4 Mtg. Holes

Dia. 0.15 (3.81) 4 Mtg. Holes

Dia. 0.15 (3.81)

4 Mtg. Holes

0.06 (1.6)

0.41 (10.3)

3.16 (80.2)

t T

0.09 (2.4)

1.25 (31.8)

^—F

2.09 (53.1)

2.56 (65.0)

Panel

0.25 2.09 (6.3) (53.1)

2.56 (65.0)

0.62 (15.7)

,_0.56 (14.2)

-3.68 (93.5)-

0.62 (15.7)

0.56_H(14.2)

0.25

(6.3)

t2.56 (65.0H

3.68 (93.5)

*2.56 (65.0)-i -3.68 (93.5)-

Base Mounted

Panel Mounted

3.51 x 1.44 (89.3 x 36.5) Panel Opening

Panel Mounted with Tumbler Lock

4.62 x 1.44 (117.3 x 36.5) Panel Opening

Figure 35. MF Series — Approximate Dimensions in Inches (mm)

Discount Symbol

.................. CC-2

* Consult Sales Office for Pricing
