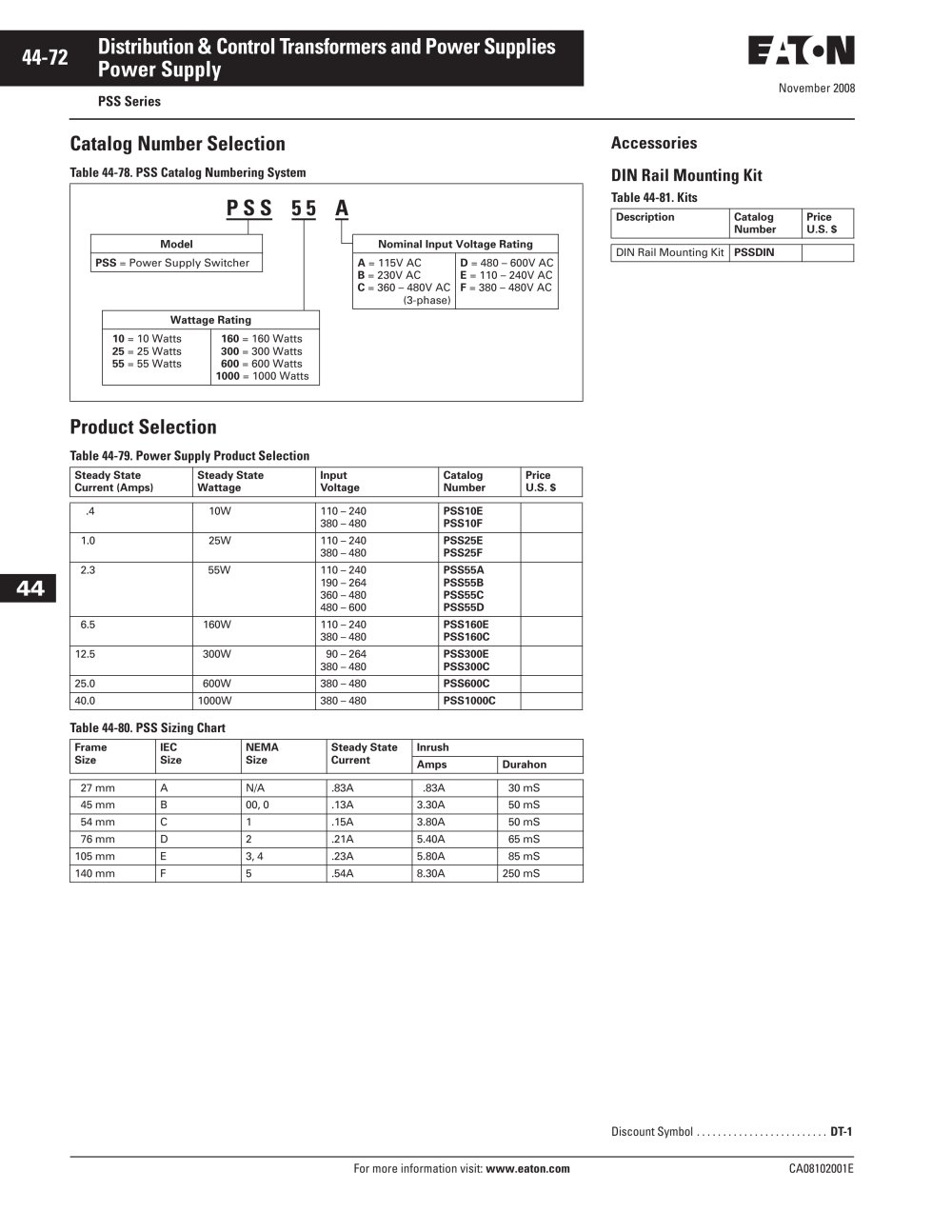

44-72 Distribution & Control Transformers and Power Supplies Power Supply

November 2008

PSS Series

Catalog Number Selection

AccessoriesDIN Rail Mounting Kit

Table 44-78. PSS Catalog Numbering System

P S S 5 5 A

Table 44-81. Kits

DescriptionCatalogNumberPriceU.S. $ Model Nominal Input Voltage Rating DIN Rail Mounting Kit PSSDIN PSS = Power Supply Switcher A = 115V AC D = 480 – 600V AC B = 230V AC E = 110 – 240V AC C = 360 – 480V AC(3-phase) F = 380 – 480V AC Wattage Rating 10 = 10 Watts 160 = 160 Watts 25 = 25 Watts 300 = 300 Watts 55 = 55 Watts 600 = 600 Watts 1000 = 1000 Watts

Product Selection

Table 44-79. Power Supply Product Selection Table 44-80. PSS Sizing Chart

Steady StateCurrent (Amps)Steady StateWattageInputVoltageCatalogNumberPriceU.S. $ .410W110 – 240380 – 480 PSS10EPSS10F 1.025W110 – 240380 – 480 PSS25EPSS25F PSS55APSS55BPSS55C PSS55D 6.5160W110 – 240380 – 480 2.355W110 – 240190 – 264 360 – 480480 – 600 PSS160EPSS160C

44

12.5300W90 – 264380 – 480 PSS300EPSS300C 25.0600W380 – 480 PSS600C 40.01000W380 – 480 PSS1000C Frame SizeIEC SizeNEMA SizeSteady StateCurrentInrushAmpsDurahon 27 mmAN/A.83A.83A30 mS45 mmB00, 0.13A3.30A50 mS 54 mmC1.15A3.80A50 mS76 mmD2.21A5.40A65 mS105 mmE3, 4.23A5.80A85 mS 140 mmF5.54A8.30A250 mS

Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . . DT-1 For more information visit: www.eaton.com CA08102001E
