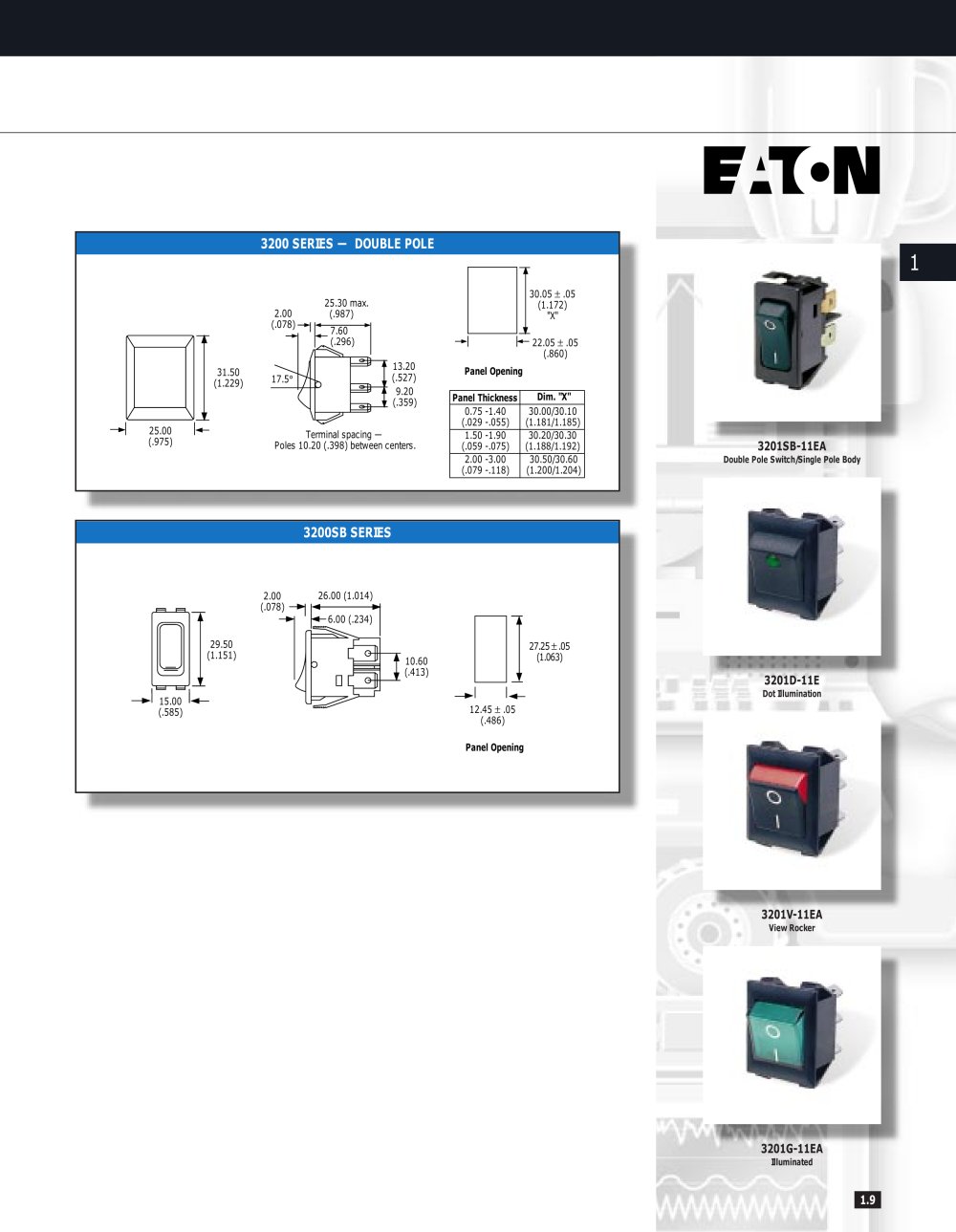

3200 SERIES — DOUBLE POLE

Switches - 3100-3200 Series - 11915 1

± .05(1.172)"X" 2.00(.078)25.30 max.(.987) 7.60 (.296) 22.05 ± .05(.860)30.05 Panel Opening 17.5 ° 9.20(.359)13.20(.527)Terminal spacing —Poles 10.20 (.398) between centers. Panel ThicknessDim. "X" 0.75 -1.40(.029 -.055)30.00/30.10(1.181/1.185)1.50 -1.90(.059 -.075)30.20/30.30(1.188/1.192)2.00 -3.00(.079 -.118)30.50/30.60(1.200/1.204) 25.00(.975)31.50(1.229)

3201SB-11EA

Double Pole Switch/Single Pole Body

3200SB SERIES

2.00(.078)26.00 (1.014)10.60(.413)6.00 (.234) 29.50(1.151)15.00(.585) 27.25 ± .05(1.063)

3201D-11E

Dot Illumination 12.45 ± .05(.486) Panel Opening

3201V-11EA

View Rocker

3201G-11EA

Illuminated

1.9
