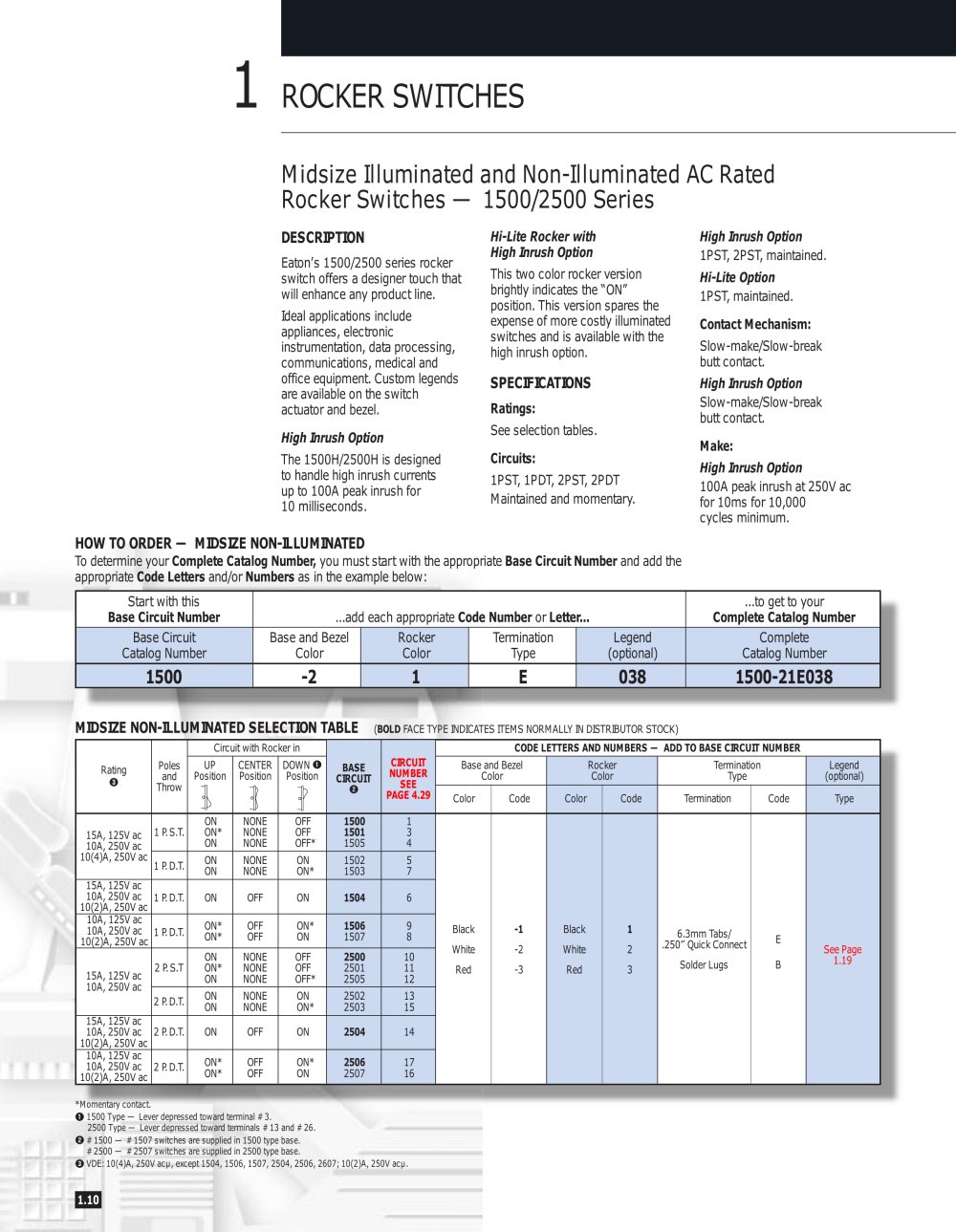

1
ROCKER SAHChES
Midsize Illuminated and Non-Illuminated AC Rated Rocker Switches — 1500/2500 Series
DESCRIPTION
Eaton's 1500/2500 series rocker switch offers a designer touch that will enhance any product line.
Ideal applications include appliances, electronic instrumentation, data processing, communications, medical and office equipment. Custom legends are available on the switch actuator and bezel.
High Inrush Option
The 1500H/2500H is designed to handle high inrush currents up to 100A peak inrush for 10 milliseconds.
Hi-Lite Rocker with High Inrush Option
This two color rocker version brightly indicates the "ON" position. This version spares the expense of more costly illuminated switches and is available with the high inrush option.
SPECIFICATIONS
Ratings:
See selection tables. Circuits:
1PST, 1PDT, 2PST, 2PDT Maintained and momentary.
High Inrush Option
1PST, 2PST, maintained. Hi-Lite Option 1PST, maintained.
Contact Mechanism:
Slow-m ake/Slow - break butt contact.
High Inrush Option
Slow-m ake/Slow - break butt contact.
Make:
High Inrush Option
100A peak inrush at 250V ac for 10ms for 10,000 cycles minimum.
HOW TO ORDER - MIDSIZE NON-ILLUMINATED
To determine your Complete Catalog Number, you must start with the appropriate Base Circuit Number and add the
Start with this Base Circuit Number
...add each appropriate Code Number or Letter...
...to get to your Complete Catalog Number
Base Circuit Catalog Number
Base and Bezel Color
Rocker Color
Termination Type
Legend (optional)
Complete Catalog Number
1500
-2
1
E
038
1500-21E038
MIDSIZE NON-ILLUMINATED SELECTION TABLE (boldface type indicates items normally in distributor stock)
Circuit with Rocker in
code letters and numbers —
add to base circuit number
Rating
0
Poles and Throw
UP Position
CENTER Position
DOWN ©
Position
base circuit
circuit number
see page 4.29
Base
and Bezel
Color
Rocker Color
Termination Type
Legend
(optional)
i
ě
ě
0
Color
Code
Color
Code
Termination
Code
Type
15A, 125V ac 10A, 250V ac
1 PS.T
ON ON* ON
NONE NONE NONE
OFF OFF OFF*
1500 1501
1505
1
3 4
10(4)A, 250V ac
1 PD.T
ON ON
NONE NONE
ON
ON*
1502
1503
5 7
15A, 125V ac 10A, 250V ac 10(2)A, 250V ac
1 PD.T
ON
OFF
ON
1504
6
10A, 125V ac 10A, 250V ac 10(2)A, 250V ac
1 P. D.T.
ON* ON*
OFF OFF
ON*
ON
1506
1507
9 8
Black White
Red
-1
-2 -3
Black
White Red
1
2 3
6.3mm Tabs/ .250" Quick Connect
E
See Page 1.19
15A, 125V ac 10A, 250V ac
2 PS.T
ON ON* ON
NONE
NONE NONE
OFF OFF
OFF*
2500
2501 2505
10
11 12
Solder Lugs
B
2 PD.T
ON ON
NONE
NONE
ON
ON*
2502 2503
13 15
15A, 125V ac 10A, 250V ac 10(2)A, 250V ac
2 P. D.T.
ON
OFF
ON
2504
14
10A, 125V ac 10A, 250V ac 10(2)A, 250V ac
2 P. D.T.
ON* ON*
OFF OFF
ON* ON
2506
2507
17 16
•Momentary contact.
O 1500 Type — Lever depressed toward terminal # 3.
2500 Type — Lever depressed toward terminals #13 and #26. 0 # 1500 — # 1507 switches are supplied in 1500 type base.
# 2500 — # 2507 switches are supplied in 2500 type base. 0 VDE: 10(4)A, 250V ac^, except 1504, 1506, 1507, 2504, 2506, 2607; 10(2)A, 250V ac^.
