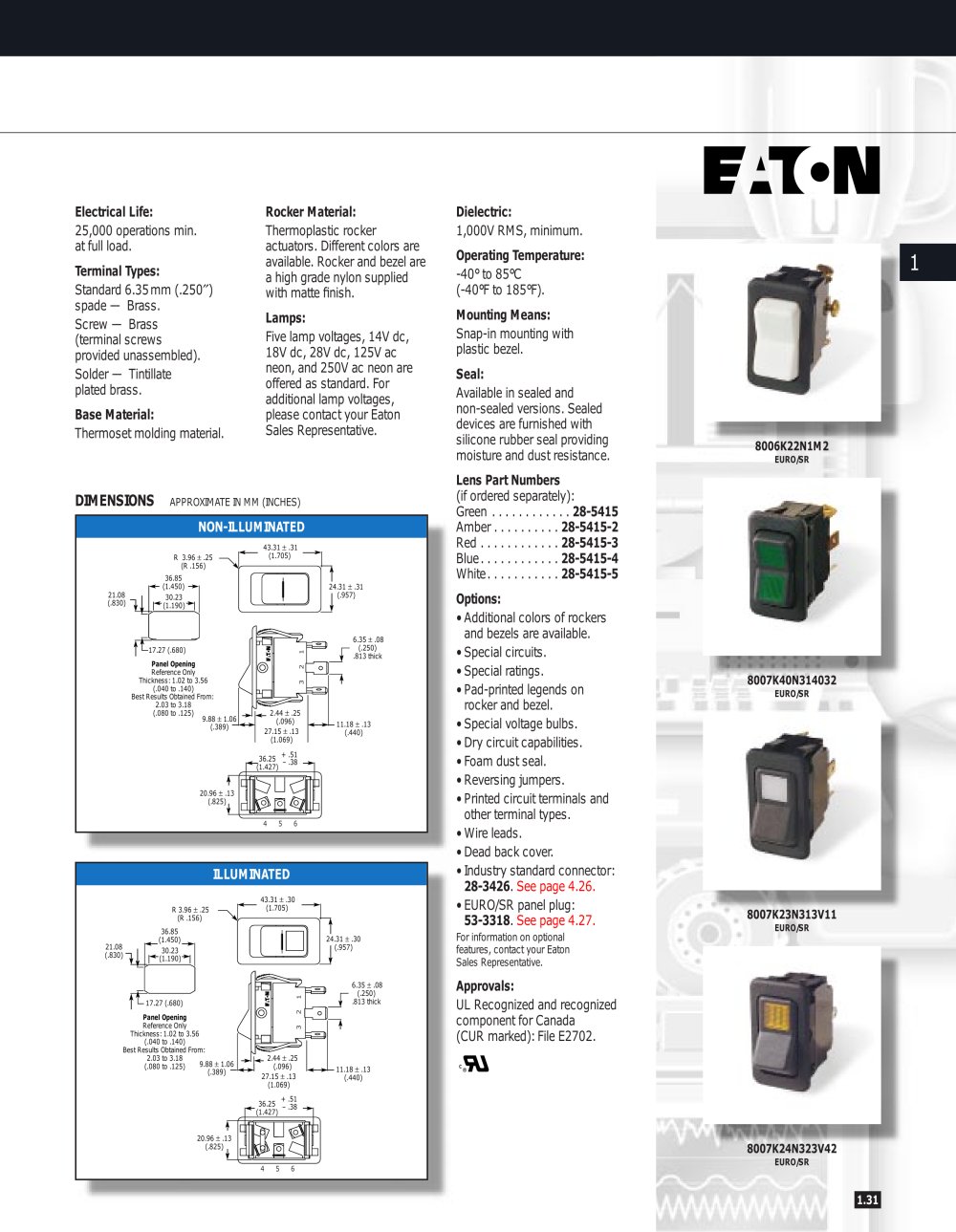

Rocker Switches - EuroSr Series - Eaton Commercial Controls - #2

25,000 operations min. at full load.

Standard 6.35 mm (.250") spade — Brass. Screw — Brass (terminal screws provided unassembled). Solder — Tintillate plated brass.

Thermoset molding material.

Thermoplastic rocker actuators. Different colors are available. Rocker and bezel are a high grade nylon supplied with matte finish.

Five lamp voltages, 14V dc, 18V dc, 28V dc, 125V ac neon, and 250V ac neon are offered as standard. For additional lamp voltages, please contact your Eaton Sales Representative.

1,000V RMS, minimum.

-40° to 85°C (-40°F to 185°F).

Snap-in mounting with plastic bezel.

Available in sealed and non-sealed versions. Sealed devices are furnished with silicone rubber seal providing moisture and dust resistance.

(if ordered separately):

Green............ 28-5415

Amber.......... 28-5415-2

Red............ 28-5415-3

Blue............ 28-5415-4

White........... 28-5415-5

• Additional colors of rockers and bezels are available.

• Special circuits.

• Special ratings.

• Pad-printed legends on rocker and bezel.

• Special voltage bulbs.

• Dry circuit capabilities.

• Foam dust seal.

• Reversing jumpers.

• Printed circuit terminals and other terminal types.

• Wire leads.

• Dead back cover.

• Industry standard connector: 28-3426. See page 4.26.

• EURO/SR panel plug: 53-3318. See page 4.27.

For information on optional features, contact your Eaton Sales Representative.

UL Recognized and recognized component for Canada (CUR marked): File E2702.

DIM ENSIONS APPROXIMATE IN MM (INCHES)

43.31 ± .31 (1.705)

R 3.96 ± .25 —v (R .156) V

36.85

«- (1.450) -*

30.23

D

24.31 ± .31 I (.957)

21.08 , (.830) "1 I

6.35 ± .08

(.250)

.813 thick

17.27 (.680)

Reference Only Thickness: 1.02 to 3.56

(.040 to .140)

Best Results Obtained From: 2.03 to 3.18

(.080 to .125)

9.88 ± 1.06 (.389)

11.18 ± .13

(.440)

36.25 _ 38 ~1.427)

20.96 ± .13 (.825)

4 5 6

R 3.96 ± .25

(R .156)

36.85

«_(1.450)__>

30.23 r*~(1.190)*|

21.08

(.830) "1 I

6.35 ± .08

(.250)

.813 thick

17.27 (.680)

Reference Only Thickness: 1.02 to 3.56 (.040 to .140) Best Results Obtained From: 2.03 to 3.18

. 2.44 ± .25

(.096) 27.15 ± .13

(1.069)

. 36.25 +_ (1.427) ^.

9.88 ± 1.06 (.389)

(.080 to .125)

11.18 ± .13

(.440)

20.96 ± .13

(.825)

4 5 6
