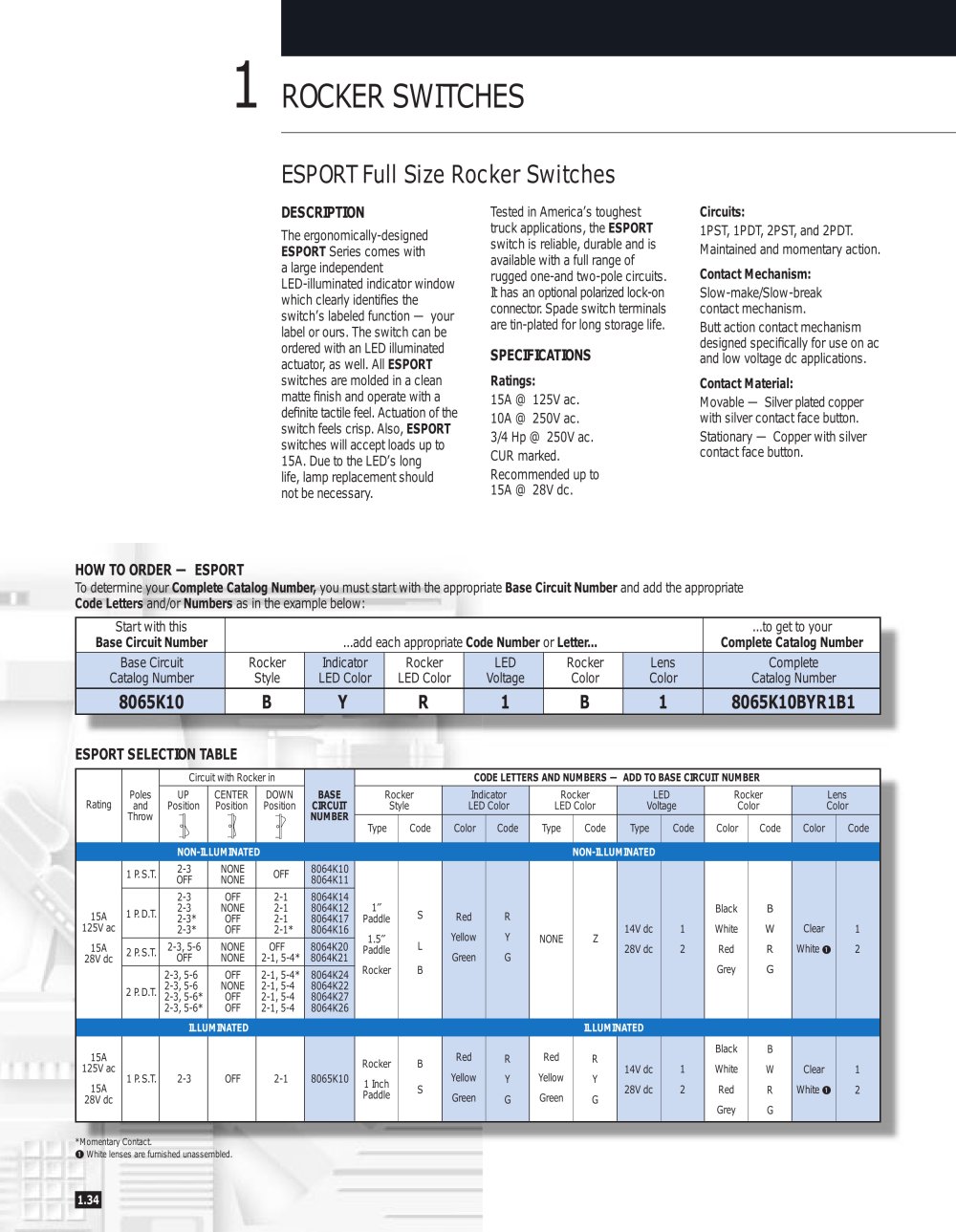

ROCKER SWITCHES

ESPORT Full Size Rocker Switches

DESCRIPTION

The ergonomically-designed ESPORT Series comes with a large independent LED-illuminated indicator window which clearly identifies the switch's labeled function — your label or ours. The switch can be ordered with an LED illuminated actuator, as well. All ESPORT switches are molded in a clean matte finish and operate with a definite tactile feel. Actuation of the switch feels crisp. Also, ESPORT switches will accept loads up to 15A. Due to the LED's long life, lamp replacement should not be necessary.

Tested in America's toughest truck applications, the ESPORT switch is reliable, durable and is available with a full range of rugged one-and two-pole circuits. It has an optional polarized lock-on connector. Spade switch terminals are tin-plated for long storage life.

SPECIFICATIONS

Ratings:

15A @ 125V ac. 10A @ 250V ac. 3/4 Hp @ 250V ac. CUR marked. Recommended up to 15A @ 28V dc.

Circuits:

1PST, 1PDT, 2PST, and 2PDT Maintained and momentary action.

Contact Mechanism:

Slow-make/Slow-break contact mechanism. Butt action contact mechanism designed specifically for use on ac and low voltage dc applications.

Contact Material:

Movable — Silver plated copper with silver contact face button. Stationary — Copper with silver contact face button.

HOW TO ORDER - ESPORT

To determine your Complete Catalog Number, you must start with the appropriate Base Circuit Number and add the appropriate Code Letters and/or Numbers as in the example below:


Start with this							...to get to your
Base Circuit Number		...add each appropriate Code Number or Letter...					Complete Catalog Number
Base Circuit	Rocker	Indicator	Rocker	LED	Rocker	Lens	Complete
Catalog Number	Style	LED Color	LED Color	Voltage	Color	Color	Catalog Number
8065K10	B	Y	R	1	B	1	8065K10BYR1B1

ESPORT SELECTION TABLE

Circuit with Rocker in

code letters and numbers —

add to base circuit number

Rating

Poles and Throw

UP Position

CENTER Position

DOWN Position

base circuit number

Rocker Style

Indicator LED Color

Rocker

LED Color

LED Voltage

Rocker Color

Lens

Color

■

Type

Code

Color

Code

Type

Code

Type

Code

Color

Code

Color

Code

non-illuminate

non-illuminated

1 PS.T

2-3 OFF

NONE NONE

OFF

8064K10 8064K11

15A 125V ac

1 PD.T

2-3 2-3 2-3* 2-3*

OFF NONE

OFF

2-1 2-1 2-1

2-1*

8064K14 8064K12 8064K17

8064K16

1" Paddle

1.5" Paddle

Red

Yellow Green

Y G

NONE

14V dc

Black White

B W

Clear

15A 28V dc

2 PS.T

2-3, 5-6

OFF

NONE NONE

OFF 2-1, 5-4*

8064K20

8064K21

28V dc

Red

White O

2 PD.T

2-3, 5-6 2-3, 5-6 2-3, 5-6* 2-3, 5-6*

OFF

NONE OFF OFF

2-1, 5-4*

2-1, 5-4 2-1, 5-4 2-1, 5-4

8064K24 8064K22 8064K27 8064K26

Rocker

Grey

illuminated

15A 125V ac

15A

28V dc

1 PS.T.

2-3

OFF

2-1

8065K10

Rocker

1 Inch Paddle

Red Yellow Green

R Y G

Red

Yellow Green

R Y G

14V dc 28V dc

1 2

Black White Red

Grey

B W R G

Clear White O

1 2

•Momentary Contact.

Q White lenses are furnished unassembled.

^™

M.34
