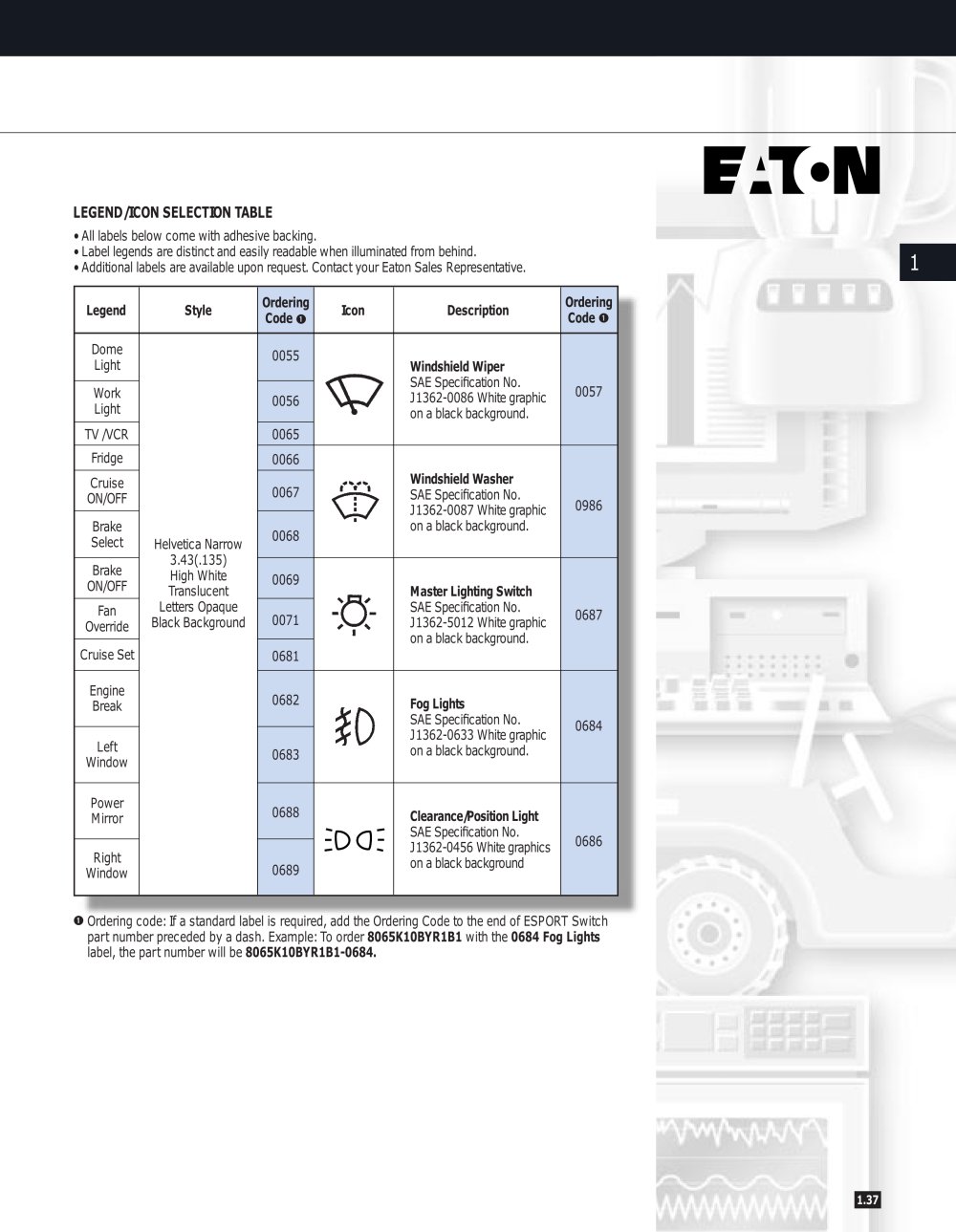

LEGEND/ICON SELECTION TABLE

• All labels below come with adhesive backing.

• Label legends are distinct and easily readable when illuminated from behind.

• Additional labels are available upon request. Contact your Eaton Sales Representative.

1

Ordering

Code Q

Ordering Code Q

Legend

Style

Icon

Description

Windshield Wiper

SAE Specification No. J1362-0086 White graphic on a black background.

0057

0056

TV /VCR

0065

0066

Windshield Washer

SAE Specification No. J1362-0087 White graphic

on ablack background.

Cruise ON/OFF

I t I

0067

0986

0068

Helvetica Narrow 3.43(.135) High White Translucent Letters Opaque Black Background

0069

Master Lighting Switch

SAE Specification No. J1362-5012 White graphic on a black background.

-s-

ran Override

0687

0071

Cruise Set

0681

Fog Lights

SAE Specification No.

J1362-0633 White graphic

on a black background.

0684

Left Window

0683

0688

Clearance/Position Light

SAE Specification No. J1362-0456 White graphics on a black background

:DO:

0686

Right Window

0689

O Ordering code: If a standard label is required, add the Ordering Code to the end of ESPORT Switch part number preceded by a dash. Example: To order 8065K10BYR1B1 with the 0684 Fog Lights label, the part number will be 8065K10BYR1B1 -0684.
