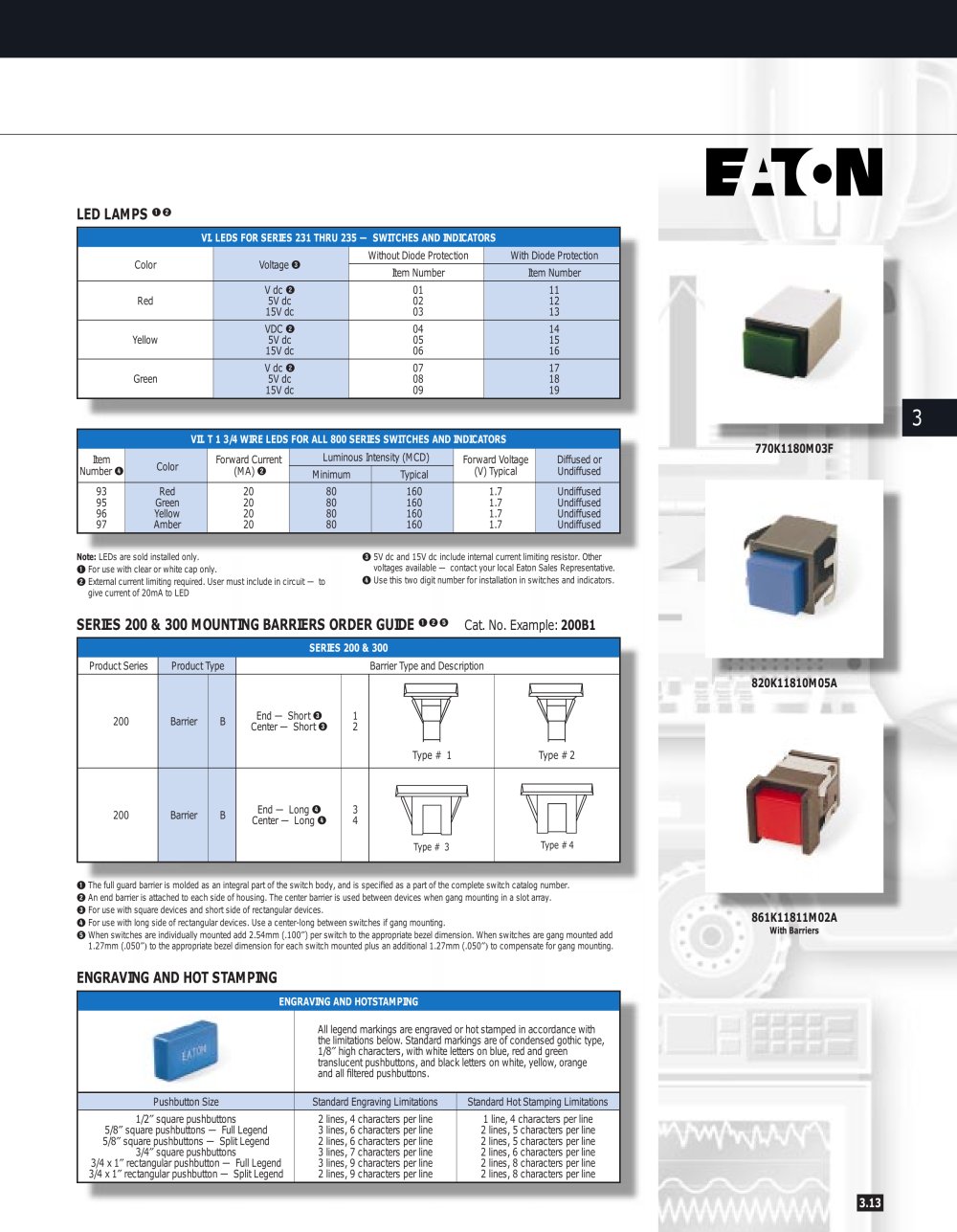

F±T<

LED LAMPS ^Q©


	leds for series 231 thru 2.	5 — switches and indicators '
iüüüüüüüüüM Color	Voltage ©	Without Diode Protection	With Diode Protection
iüüüüüüüüüM Color	Voltage ©	Item Number	Item Number
Red	V dc © 5V dc 15V dc	01 02 03	11 12 13
Yellow	VDC © 5V dc 15V dc	04 05 06	14 15 16
Green	V dc © 5V dc 15V dc	07 08 09	17 18 19


■		vii. t 1 3/4 wire leds for all 800 series switches and indicators
Item	Color		Forward Current	Luminous Intensity (MCD)		Forward Voltage	Diffused or
Number ©	Color		(MA) ©	Minimum	Typical	(V) Typical	Undiffused
93 95 96 97	Red Green Yellow Amber		20 20 20 20	80 80 80 80	160 160 160 160	1.7 1.7 1.7 1.7	Undiffused Undiffused Undiffused Undiffused

770K1180M03F

0 5V dc and 15V dc include internal current limiting resistor. Other

voltages available — contact your local Eaton Sales Representative. © Use this two digit number for installation in switches and indicators.

Note: LEDs are sold installed only. O For use with clear or white cap only.

0 External current limiting required. User must include in circuit — to give current of 20mA to LED

SERIES 200 & 300 MOUNTING BARRIERS ORDER GUIDE ⁰⁰⁰ Cat. No. Example: 200B1

:ries 200 & 300

Barrier Type and Description

Product Series

Product Type

820K11810M05A

End — Short © Center — Short ©

Barrier

200

Type # 1

Type # 2

YÏÏ7

Yn7

End — Long O Center — Long O

Barrier

200

Type # 4

Type # 3

O The full guard barrier is molded as an integral part of the switch body, and is specified as a part of the complete switch catalog number. 0 An end barrier is attached to each side of housing. The center barrier is used between devices when gang mounting in a slot array. E For use with square devices and short side of rectangular devices.

0 For use with long side of rectangular devices. Use a center-long between switches if gang mounting.

0 When switches are individually mounted add 2.54mm (.100") per switch to the appropriate bezel dimension. When switches are gang mounted add 1.27mm (.050") to the appropriate bezel dimension for each switch mounted plus an additional 1.27mm (.050") to compensate for gang mounting.

861K11811M02A

With Barriers

ENGRAVING AND HOT STAMPING


engraving and hotstamping
0	All legend markings are engraved or hot stamped in accordance with the limitations below. Standard markings are of condensed gothic type, 1/8" high characters, with white letters on blue, red and green translucent pushbuttons, and black letters on white, yellow, orange and all filtered pushbuttons.
Pushbutton Size	Standard Engraving Limitations	Standard Hot Stamping Limitations
1/2" square pushbuttons 5/8" square pushbuttons — Full Legend 5/8" square pushbuttons — Split Legend 3/4" square pushbuttons 3/4 x 1 " rectangular pushbutton — Full Legend 3/4 x 1 " rectangular pushbutton — Split Legend	2 lines, 4 characters per line 3 lines, 6 characters per line 2 lines, 6 characters per line 3 lines, 7 characters per line 3 lines, 9 characters per line 2 lines, 9 characters per line	1 line, 4 characters per line 2 lines, 5 characters per line 2 lines, 5 characters per line 2 lines, 6 characters per line 2 lines, 8 characters per line 2 lines, 8 characters per line

(L13|
