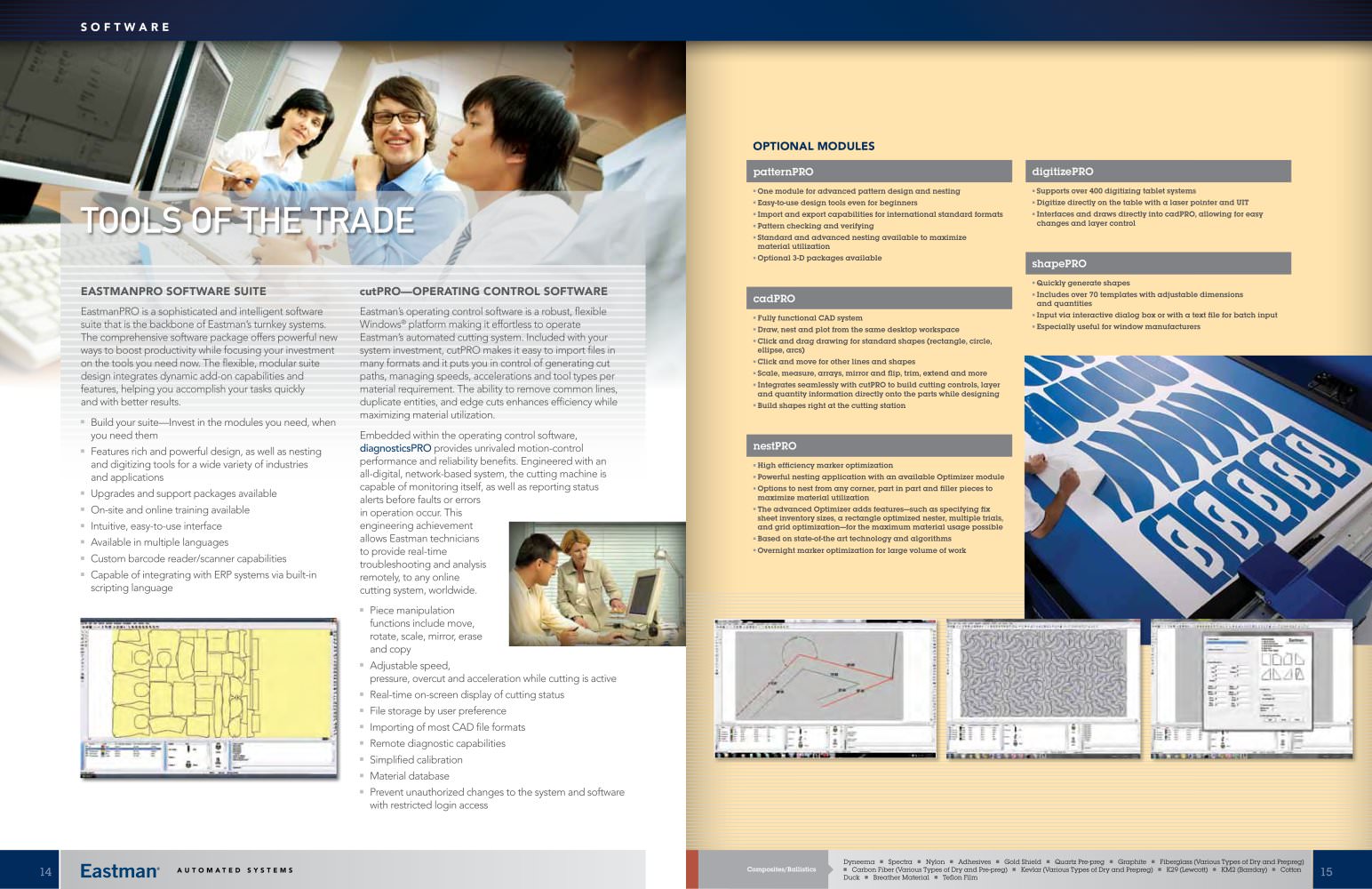

Optional Modules patternPRO �¡�¡ One module for advanced pattern design and nesting �¡�¡ Easy-to-use design tools even for beginners �¡�¡ Import and export capabilities for international standard formats �¡�¡ Pattern checking and verifying �¡�¡ Standard and advanced nesting available to maximize material utilization �¡�¡ Optional 3-D packages available cadPRO �¡�¡ Fully functional CAD system �¡�¡ Draw, nest and plot from the same desktop workspace �¡�¡ Click and drag drawing for standard shapes (rectangle, circle, ellipse, arcs) �¡�¡ Click and move for other lines and shapes �¡�¡ Scale, measure, arrays, mirror and flip, trim, extend and more �¡�¡ Integrates seamlessly with cutPRO to build cutting controls, layer and quantity information directly onto the parts while designing �¡�¡ Build shapes right at the cutting station nestPRO �¡�¡ High efficiency marker optimization �¡�¡ Powerful nesting application with an available Optimizer module �¡�¡ Options to nest from any corner, part in part and filler pieces to maximize material utilization �¡�¡ The advanced Optimizer adds features—such as specifying fix sheet inventory sizes, a rectangle optimized nester, multiple trials, and grid optimization—for the maximum material usage possible �¡�¡ Based on state-of-the art technology and algorithms �¡�¡ Overnight marker optimization for large volume of work A u t o m a t e d S y s t e m s Dyneema �¡ Spectra �¡ Nylon �¡ Adhesives �¡ Gold Shield �¡ Quartz Pre-preg �¡ Graphite �¡ Fiberglass (Various Types of Dry and Prepreg) �¡ Carbon Fiber (Various Types of Dry and Pre-preg) �¡ Kevlar (Various Types of Dry and Prepreg) �¡ K29 (Lewcott) �¡ KM2 (Barrday) �¡ Cotton Duck �¡ Breather Material �¡ Teflon Film 14 Composites/Ballistics 15 s o f t w a r e EastmanPRO Software Suite EastmanPRO is a sophisticated and intelligent software suite that is the backbone of Eastman’s turnkey systems. The comprehensive software package offers powerful new ways to boost productivity while focusing your investment on the tools you need now. The flexible, modular suite design integrates dynamic add-on capabilities and features, helping you accomplish your tasks quickly and with better results. �¡ Build your suite—Invest in the modules you need, when you need them �¡ Features rich and powerful design, as well as nesting and digitizing tools for a wide variety of industries and applications �¡ Upgrades and support packages available �¡ On-site and online training available �¡ Intuitive, easy-to-use interface �¡ Available in multiple languages �¡ Custom barcode reader/scanner capabilities �¡ Capable of integrating with ERP systems via built-in scripting language cutPRO—Operating Control Software Eastman’s operating control software is a robust, flexible Windows® platform making it effortless to operate Eastman’s automated cutting system. Included with your system investment, cutPRO makes it easy to import files in many formats and it puts you in control of generating cut paths, managing speeds, accelerations and tool types per material requirement. The ability to remove common lines, duplicate entities, and edge cuts enhances efficiency while maximizing material utilization. Embedded within the operating control software, diagnosticsPRO provides unrivaled motion-control performance and reliability benefits. Engineered with an all-digital, network-based system, the cutting machine is capable of monitoring itself, as well as reporting status alerts before faults or errors in operation occur. This engineering achievement allows Eastman technicians to provide real-time troubleshooting and analysis remotely, to any online cutting system, worldwide. �¡ Piece manipulation functions include move, rotate, scale, mirror, erase and copy �¡ Adjustable speed, pressure, overcut and acceleration while cutting is active �¡ Real-time on-screen display of cutting status �¡ File storage by user preference �¡ Importing of most CAD file formats �¡ Remote diagnostic capabilities �¡ Simplified calibration �¡ Material database �¡ Prevent unauthorized changes to the system and software with restricted login access Tools of the trade digitizePRO �¡�¡ Supports over 400 digitizing tablet systems �¡�¡ Digitize directly on the table with a laser pointer and UIT �¡�¡ Interfaces and draws directly into cadPRO, allowing for easy changes and layer control shapePRO �¡�¡ Quickly generate shapes �¡�¡ Includes over 70 templates with adjustable dimensions and quantities �¡�¡ Input via interactive dialog box or with a text file for batch input �¡�¡ Especially useful for window manufacturers
