16mm 15.8 x 15.8mm IP40 100mA42VAC

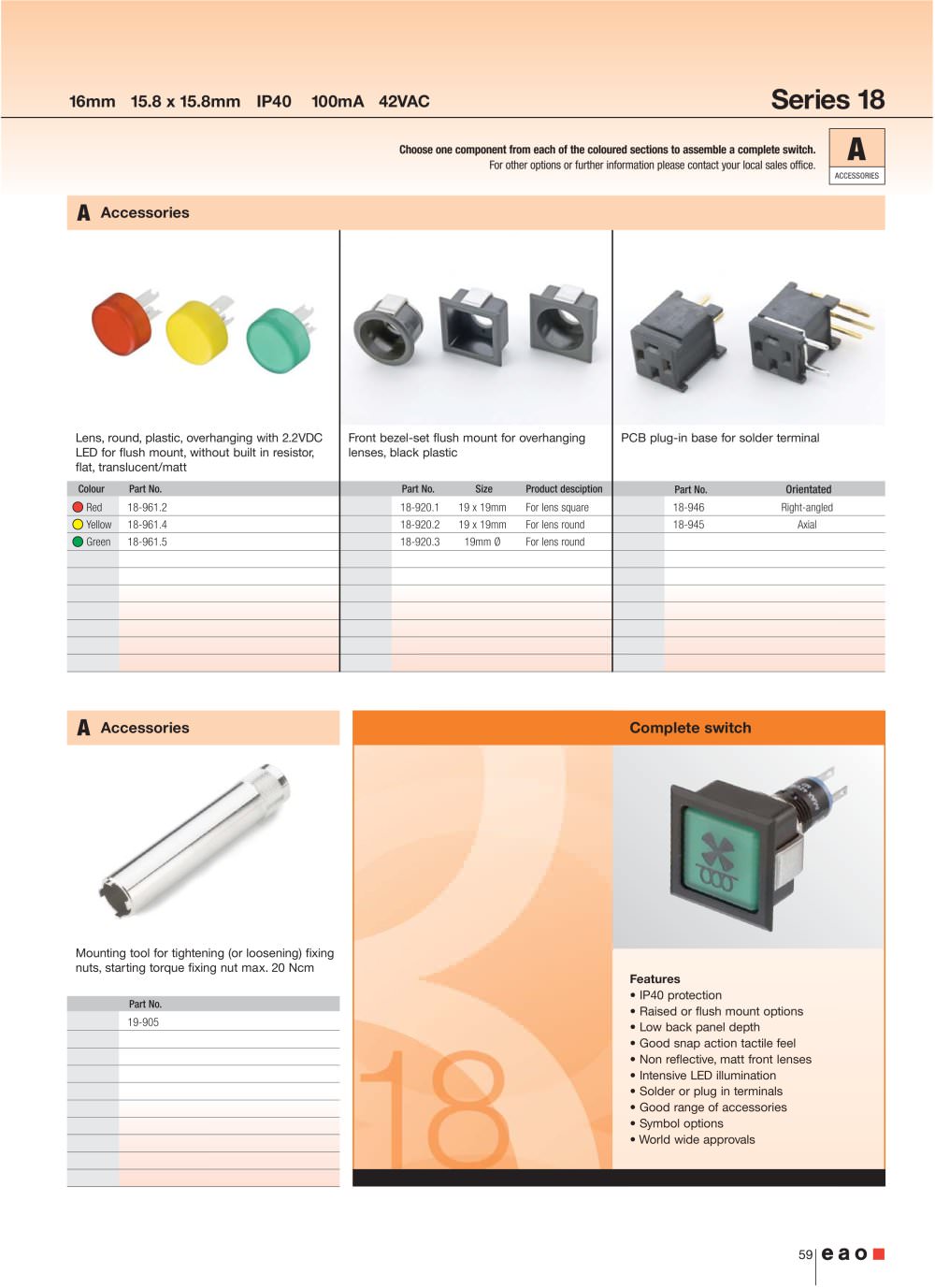

Transportation Catalogue - 9307 Series 18

Choose one component from each of the coloured sections to assemble a complete switch. For other options or further information please contact your local sales office.

ACCESSORIES

A

A A

Accessories Accessories

Lens,round,plastic,overhanging with 2.2VDC LED for flush mount,without built in resistor,flat,translucent/matt Front bezel-set flush mount for overhanginglenses,black plastic PCB plug-in base for solder terminal

ColourPart No. Part No.SizeProduct desciption Part No. Orientated RedYellowGreen 18-961.2 18-920.119 x 19mmFor lens square 18-946Right-angled 18-961.4 18-920.219 x 19mmFor lens round 18-945Axial 18-961.5 18-920.319mm ØFor lens round

A

Accessories Complete switch

Mounting tool for tightening (or loosening) fixingnuts,starting torque fixing nut max.20 Ncm Features

Part No.

• IP40 protection • Raised or flush mount options • Low back panel depth • Good snap action tactile feel • Non reflective,matt front lenses • Intensive LED illumination • Solder or plug in terminals • Good range of accessories • Symbol options • World wide approvals

19-905

59
