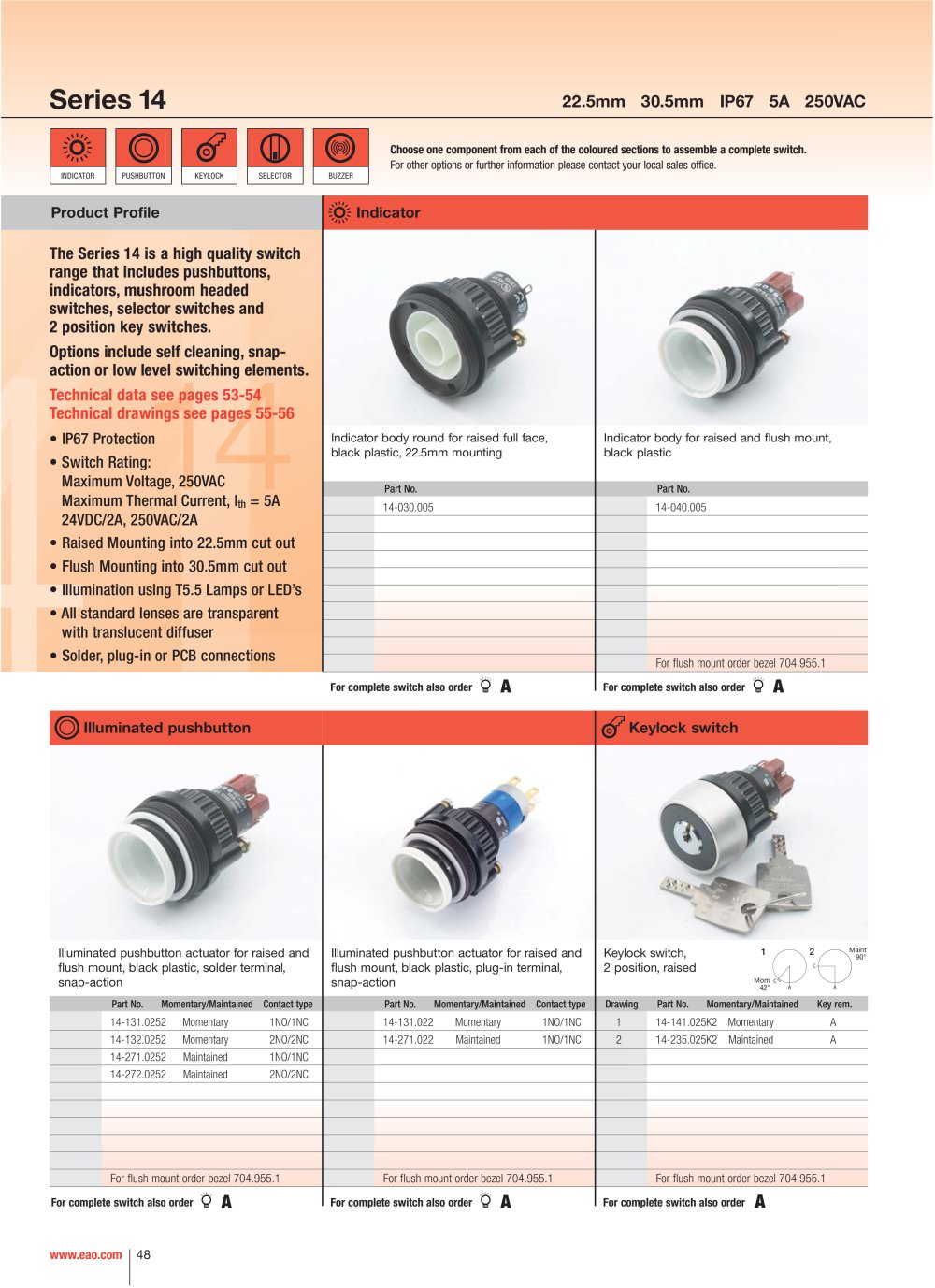

Series 14

22.5mm 30.5mm IP67 5A 250VAC

Choose one component from each of the coloured sections to assemble a complete switch.

For other options or further information please contact your local sales office.

INDICATOR

PUSHBUTTON

KEYLOCK

SELECTOR

BUZZER

Product Profile

The Series 14 is a high quality switch range that includes pushbuttons, indicators, mushroom headed

switches, selector switches and

2 position key switches.

Options include self cleaning, snap-action or low level switching elements.

Technical data see pages 53-54 Technical drawings see pages 55-56

• IP67 Protection

• Switch Rating: Maximum Voltage, 250VAC Maximum Thermal Current, Ith = 5A 24VDC/2A, 250VAC/2A

• Raised Mounting into 22.5mm cut out

• Flush Mounting into 30.5mm cut out

• Illumination using T5.5 Lamps or LED's

• All standard lenses are transparent with translucent diffuser

• Solder, plug-in or PCB connections

Indicator body round for raised full face, black plastic, 22.5mm mounting

Part No.

14-030.005

Indicator body for raised and flush mount, black plastic

Part No.

14-040.005

For flush mount order bezel 704.955.1

For complete switch also order Q A


(Q) Illuminated pushbutton				Keylock switch
Illuminated pushbutto flush mount, black pla snap-action	w n actuator for rai istic, solder term	1 sed and nal,	Illuminated pushbutton actuator for raised and flush mount, black plastic, plug-in terminal, snap-action	Keylock switch, 1 ^~\² ^~\^M90ⁿ° ² ^{position,raised} Mom *V\J\\)*
Part No. Momentary/Maintained Contact type			Part No. Momentary/Maintained Contact type	Drawing	Part No. Momentary/Maintained Key rem.
14-131.0252 Momentary 1NO/1NC			14-131.022 Momentary 1NO/1NC	1	14-141.025K2 Momentary A
14-132.0252 Momentary 2NO/2NC			14-271.022 Maintained 1NO/1NC	2	14-235.025K2 Maintained A
14-271.0252 Maintained 1NO/1NC
14-272.0252 Maintained 2NO/2NC





For flush mount order bezel 704.955.1			For flush mount order bezel 704.955.1		For flush mount order bezel 704.955.1
For complete switch also order Q A			For complete switch also order Q A	For complete switch also order A
