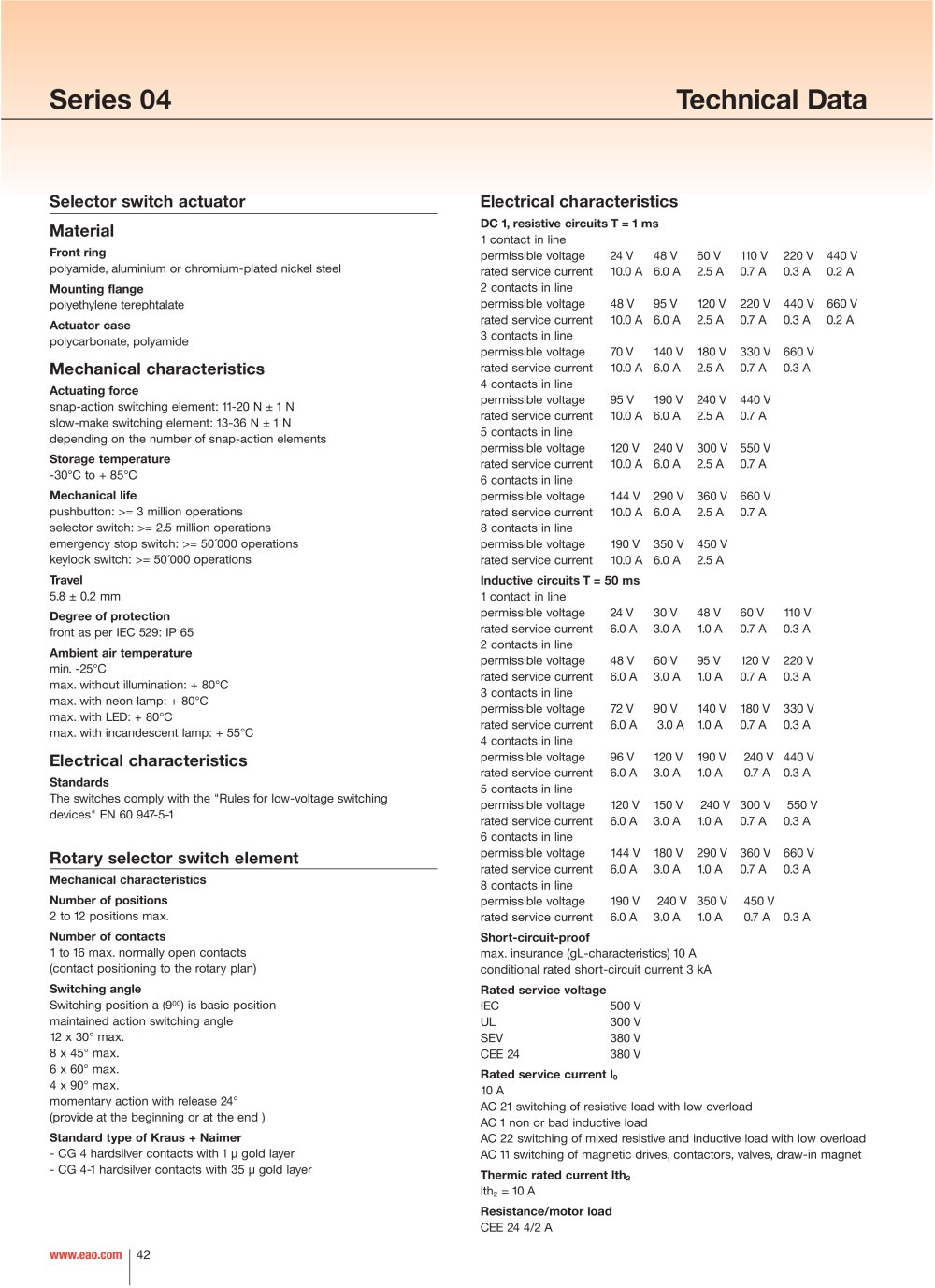

| Series 04 | ||||||||||||||||
| Technical Data | ||||||||||||||||
| Selector switch actuator | ||||||||||||||||
| Electrical characteristics DC 1, resistive circuits T = 1 ms 1 contact in line permissible voltage 24 V 48 V 60 V 110 V 220 V 440 V rated service current 10.0 A 6.0 A 2.5 A 0.7 A 0.3 A 0.2 A 2 contacts in line permissible voltage 48 V 95 V 120 V 220 V 440 V 660 V rated service current 10.0 A 6.0 A 2.5 A 0.7 A 0.3 A 0.2 A 3 contacts in line permissible voltage 70 V 140 V 180 V 330 V 660 V rated service current 10.0 A 6.0 A 2.5 A 0.7 A 0.3 A 4 contacts in line permissible voltage 95 V 190 V 240 V 440 V rated service current 10.0 A 6.0 A 2.5 A 0.7 A 5 contacts in line permissible voltage 120 V 240 V 300 V 550 V rated service current 10.0 A 6.0 A 2.5 A 0.7 A 6 contacts in line permissible voltage 144 V 290 V 360 V 660 V rated service current 10.0 A 6.0 A 2.5 A 0.7 A 8 contacts in line permissible voltage 190 V 350 V 450 V rated service current 10.0 A 6.0 A 2.5 A Inductive circuits T = 50 ms 1 contact in line permissible voltage 24 V 30 V 48 V 60 V 110 V rated service current 6.0 A 3.0 A 1.0 A 0.7 A 0.3 A 2 contacts in line permissible voltage 48 V 60 V 95 V 120 V 220 V rated service current 6.0 A 3.0 A 1.0 A 0.7 A 0.3 A 3 contacts in line permissible voltage 72 V 90 V 140 V 180 V 330 V rated service current 6.0 A 3.0 A 1.0 A 0.7 A 0.3 A 4 contacts in line permissible voltage 96 V 120 V 190 V 240 V 440 V rated service current 6.0 A 3.0 A 1.0 A 0.7 A 0.3 A 5 contacts in line permissible voltage 120 V 150 V 240 V 300 V 550 V rated service current 6.0 A 3.0 A 1.0 A 0.7 A 0.3 A 6 contacts in line permissible voltage 144 V 180 V 290 V 360 V 660 V rated service current 6.0 A 3.0 A 1.0 A 0.7 A 0.3 A 8 contacts in line permissible voltage 190 V 240 V 350 V 450 V rated service current 6.0 A 3.0 A 1.0 A 0.7 A 0.3 A Short-circuit-proof max. insurance (gL-characteristics) 10 A conditional rated short-circuit current 3 kA Rated service voltage IEC 500 V UL 300 V SEV 380 V CEE 24 380 V Rated service current l0 10 A AC 21 switching of resistive load with low overload AC 1 non or bad inductive load AC 22 switching of mixed resistive and inductive load with low overload AC 11 switching of magnetic drives, contactors, valves, draw-in magnet Thermic rated current lth2 lth2 = 10 A Resistance/motor load CEE 24 4/2 A | ||||||||||||||||
| Material Front ring polyamide, aluminium or chromium-plated nickel steel Mounting flange polyethylene terephtalate Actuator case polycarbonate, polyamide Mechanical characteristics Actuating force snap-action switching element: 11-20 N ± 1 N slow-make switching element: 13-36 N ± 1 N depending on the number of snap-action elements Storage temperature -30°C to + 85°C Mechanical life pushbutton: >= 3 million operations selector switch: >= 2.5 million operations emergency stop switch: >= 50'000 operations keylock switch: >= 50'000 operations Travel 5.8 ± 0.2 mm Degree of protection front as per IEC 529: IP 65 Ambient air temperature min. -25°C max. without illumination: + 80°C max. with neon lamp: + 80°C max. with LED: + 80°C max. with incandescent lamp: + 55°C Electrical characteristics Standards The switches comply with the "Rules for low-voltage switching devices" EN 60 947-5-1 | ||||||||||||||||
| Rotary selector switch element Mechanical characteristics Number of positions 2 to 12 positions max. Number of contacts 1 to 16 max. normally open contacts (contact positioning to the rotary plan) Switching angle Switching position a (900) is basic position maintained action switching angle 12 x 30° max. 8 x 45° max. 6 x 60° max. 4 x 90° max. momentary action with release 24° (provide at the beginning or at the end ) Standard type of Kraus + Naimer - CG 4 hardsilver contacts with 1 u gold layer - CG 4-1 hardsilver contacts with 35 u gold layer | ||||||||||||||||
| 42 | ||||||||||||||||
| www.eao.com | ||||||||||||||||
