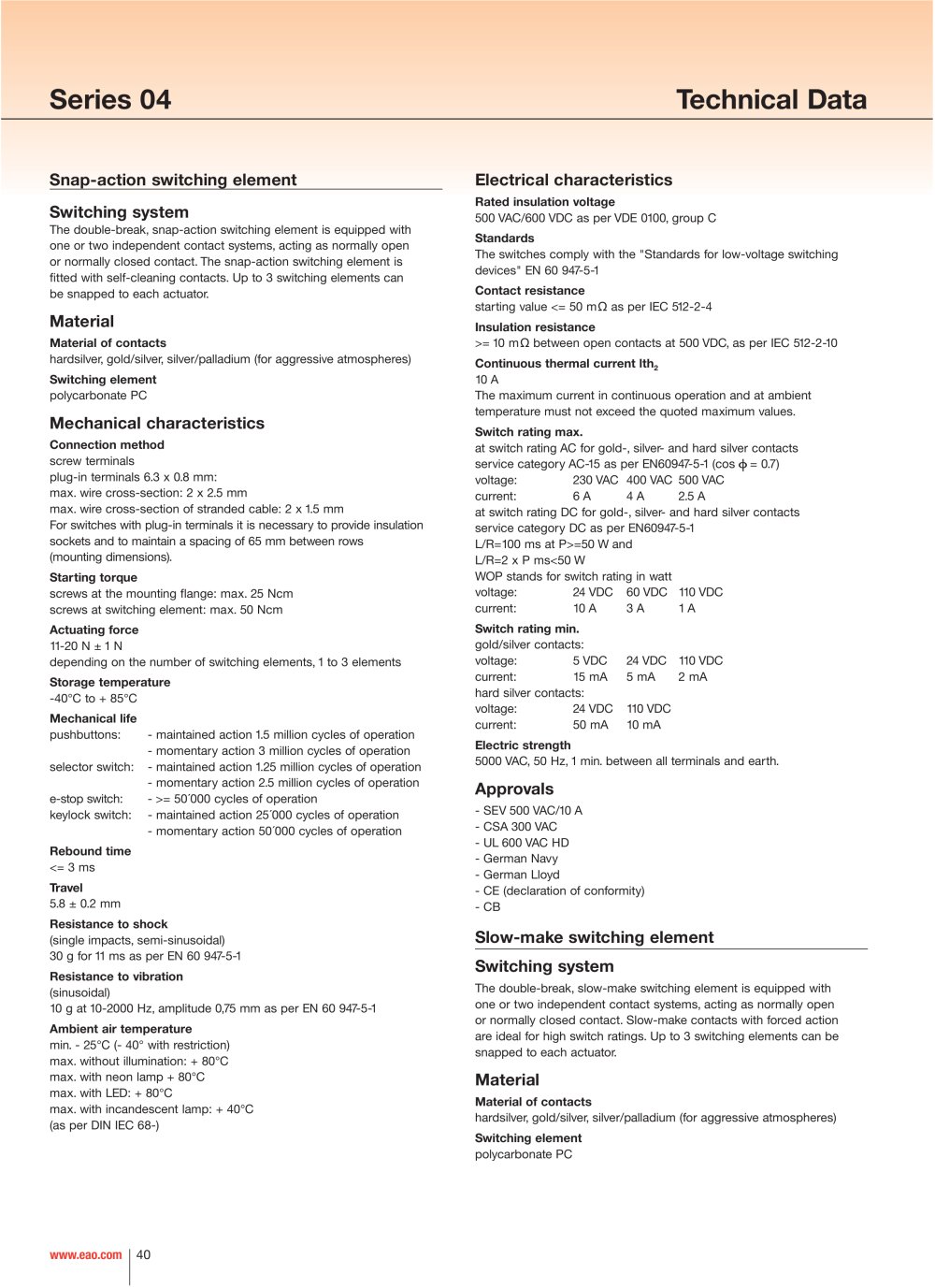

500 VAC/600 VDC as per VDE 0100, group C

The switches comply with the "Standards for low-voltage switching devices" EN 60 947-5-1

starting value <= 50 mO as per IEC 512-2-4 Insulation resistance

>= 10 mCI between open contacts at 500 VDC, as per IEC 512-2-10 Continuous thermal current lth₂

10 A

The maximum current in continuous operation and at ambient temperature must not exceed the quoted maximum values.

at switch rating AC for gold-, silver- and hard silver contacts

service category AC-15 as per EN60947-5-1 (cos o = 0.7)

voltage: 230 VAC 400 VAC 500 VAC

current: 6 A 4 A 2.5 A

at switch rating DC for gold-, silver- and hard silver contacts

service category DC as per EN60947-5-1

L/R=100 ms at P>=50 W and

L/R=2 x P ms<50 W

WOP stands for switch rating in watt

voltage: 24 VDC 60 VDC 110 VDC

The double-break, snap-action switching element is equipped with one or two independent contact systems, acting as normally open or normally closed contact. The snap-action switching element is fitted with self-cleaning contacts. Up to 3 switching elements can be snapped to each actuator.

hardsilver, gold/silver, silver/palladium (for aggressive atmospheres)

polycarbonate PC

screw terminals

plug-in terminals 6.3 x 0.8 mm:

max. wire cross-section: 2 x 2.5 mm

max. wire cross-section of stranded cable: 2 x 1.5 mm

For switches with plug-in terminals it is necessary to provide insulation

sockets and to maintain a spacing of 65 mm between rows

(mounting dimensions).

screws at the mounting flange: max. 25 Ncm screws at switching element: max. 50 Ncm

Actuating force 11-20 N ± 1 N

depending on the number of switching elements, 1 to 3 elements

-40°C to + 85°C

10 A

current:

3 A 1 A

gold/silver contacts: voltage: 5 VDC

current: 15 mA

hard silver contacts: voltage: 24 VDC

current: 50 mA

24 VDC 110 VDC 5 mA 2 mA

110 VDC

10 mA

pushbuttons:

selector switch:

e-stop switch: keylock switch:

■ maintained action 1.5 million cycles of operation

■ momentary action 3 million cycles of operation

■ maintained action 1.25 million cycles of operation

■ momentary action 2.5 million cycles of operation >= 50'000 cycles of operation maintained action 25'000 cycles of operation momentary action 50'000 cycles of operation

5000 VAC, 50 Hz, 1 min. between all terminals and earth.

- SEV 500 VAC/10 A

- CSA 300 VAC

- UL600 VAC HD

- German Navy

- German Lloyd

- CE (declaration of conformity)

- CB

The double-break, slow-make switching element is equipped with one or two independent contact systems, acting as normally open or normally closed contact. Slow-make contacts with forced action are ideal for high switch ratings. Up to 3 switching elements can be snapped to each actuator.

hardsilver, gold/silver, silver/palladium (for aggressive atmospheres)

polycarbonate PC

<= 3 ms

5.8 ± 0.2 mm

(single impacts, semi-sinusoidal) 30 g for 11 ms as per EN 60 947-5-1

(sinusoidal)

10 g at 10-2000 Hz, amplitude 0,75 mm as per EN 60 947-5-1

min. - 25°C (- 40° with restriction) max. without illumination: + 80°C max. with neon lamp + 80°C max. with LED: + 80°C max. with incandescent lamp: + 40°C (as per DIN IEC 68-)

40
