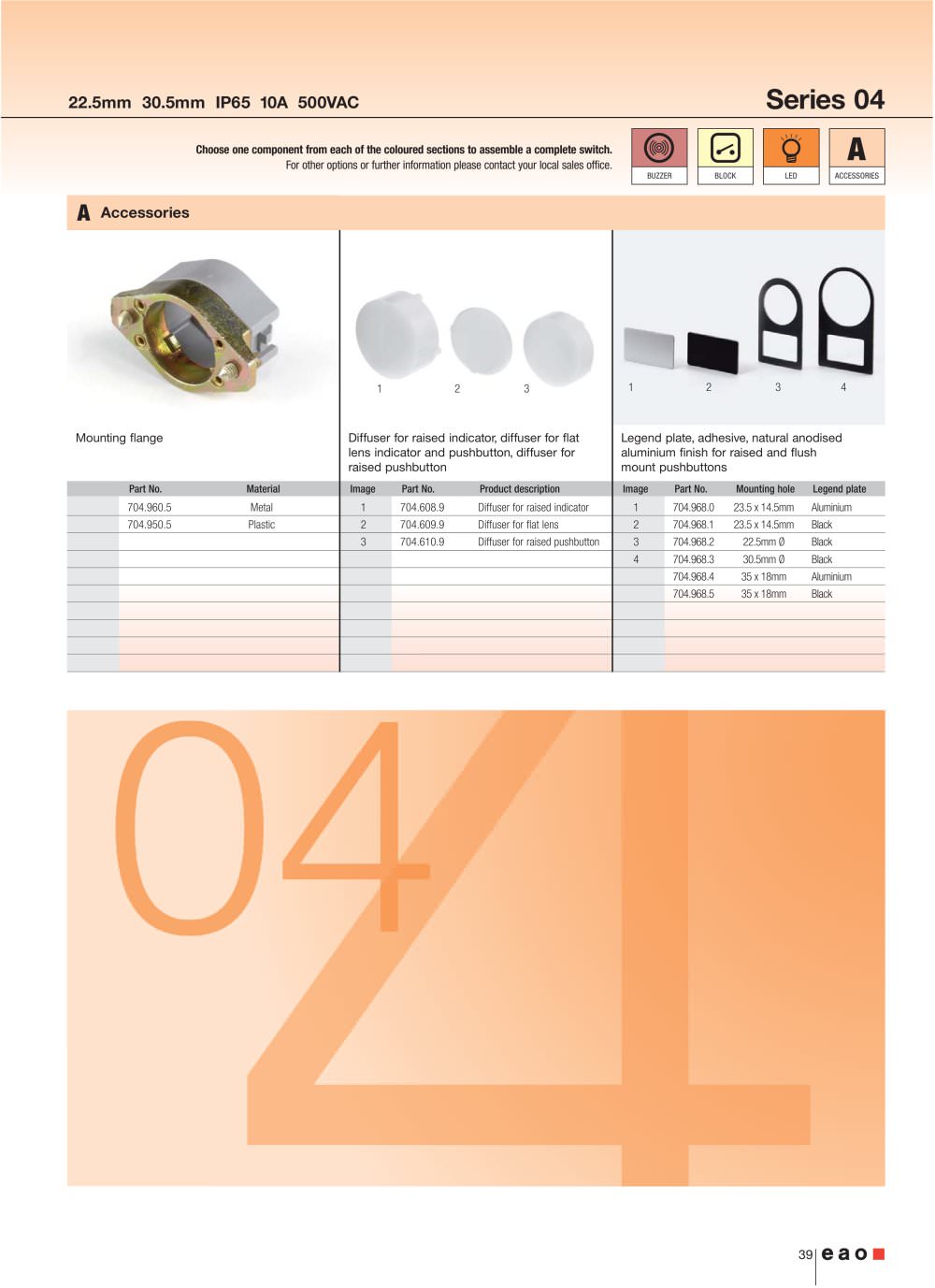

22.5mm 30.5mm IP65 10A500VAC

Transportation Catalogue - 9307 Series 04

Choose one component from each of the coloured sections to assemble a complete switch. For other options or further information please contact your local sales office.

BUZZER BLOCK LED ACCESSORIES

A

A

Accessories

123 1234

Mounting flange Diffuser for raised indicator,diffuser for flat lens indicator and pushbutton,diffuser for raised pushbutton Legend plate,adhesive,natural anodised aluminium finish for raised and flush mount pushbuttons

Part No.Material ImagePart No.Product description ImagePart No.Mounting holeLegend plate 704.960.5Metal 1704.608.9Diffuser for raised indicator 1704.968.023.5 x 14.5mmAluminium 704.950.5Plastic 2704.609.9Diffuser for flat lens 2704.968.123.5 x 14.5mmBlack 3704.610.9Diffuser for raised pushbutton 3704.968.222.5mm Ø Black 4704.968.330.5mm Ø Black 704.968.435 x 18mmAluminium 704.968.535 x 18mmBlack

39
