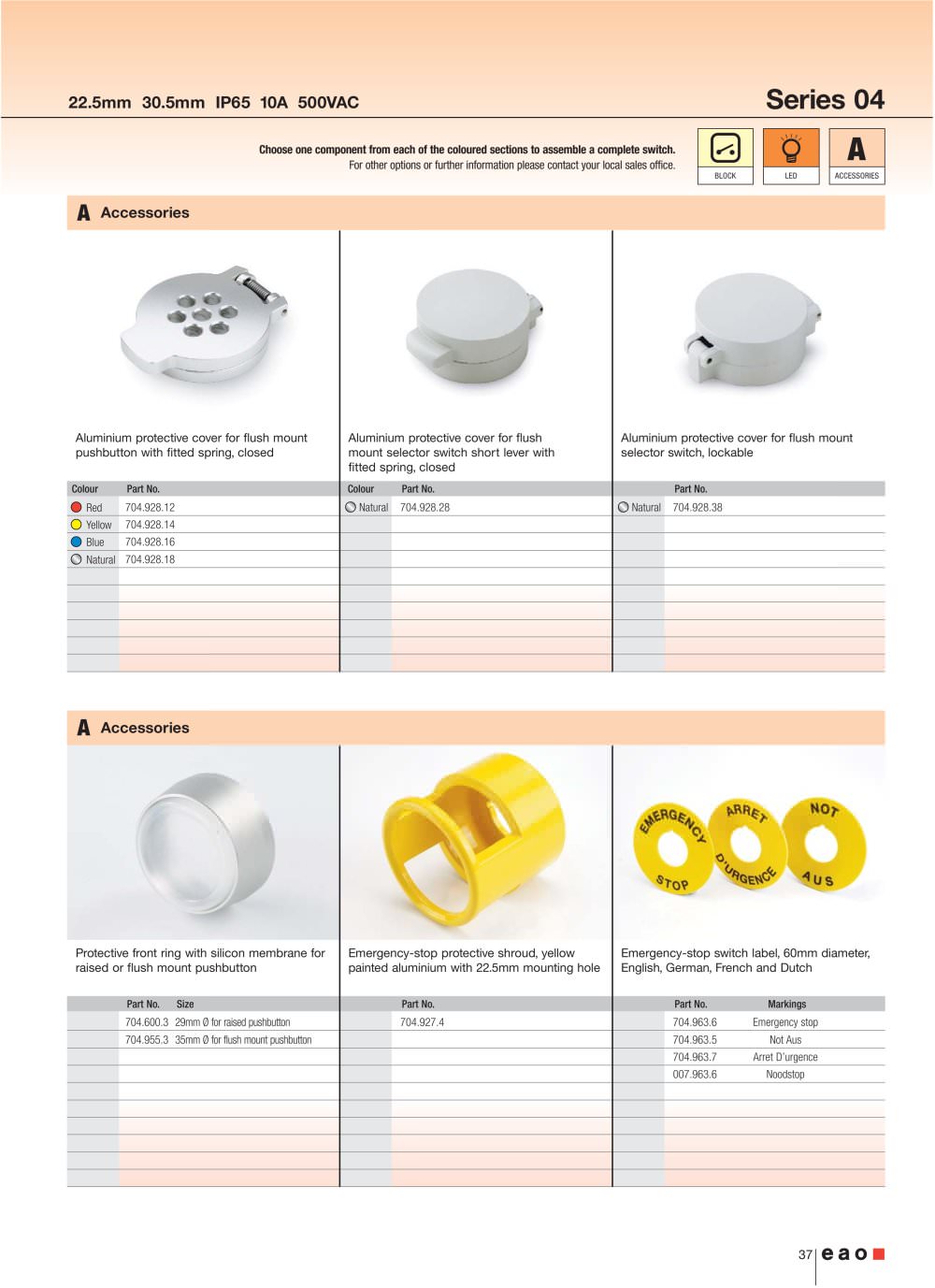

Series 04

22.5mm 30.5mm IP65 10A 500VAC

Choose one component from each of the coloured sections to assemble a complete switch.

For other options or further information please contact your local sales office.

A Accessories

Aluminium protective cover for flush mount pushbutton with fitted spring, closed

Colour Part No.

O Red 704.928.12

O Yellow 704.928.14

O Blue 704.928.16

O Natural 704.928.18

Aluminium protective cover for flush mount selector switch short lever with fitted spring, closed

Aluminium protective cover for flush mount selector switch, lockable


A Accessories 0 Protective front ring with silicon membrane for raised or flush mount pushbutton	Emergency-stop protective shroud, yellow painted aluminium with 22.5mm mounting hole	\ «t₀_? So^ «Us Emergency-stop switch label, 60mm diameter, English, German, French and Dutch
Part No. Size	Part No.	Part No. Markings
704.600.3 29mm 0 for raised pushbutton	704.927.4	704.963.6 Emergency stop
704.955.3 35mm 0 for flush mount pushbutton		704.963.5 Not Aus
		704.963.7 Arret D'urgence
		007.963.6 Noodstop

eao
