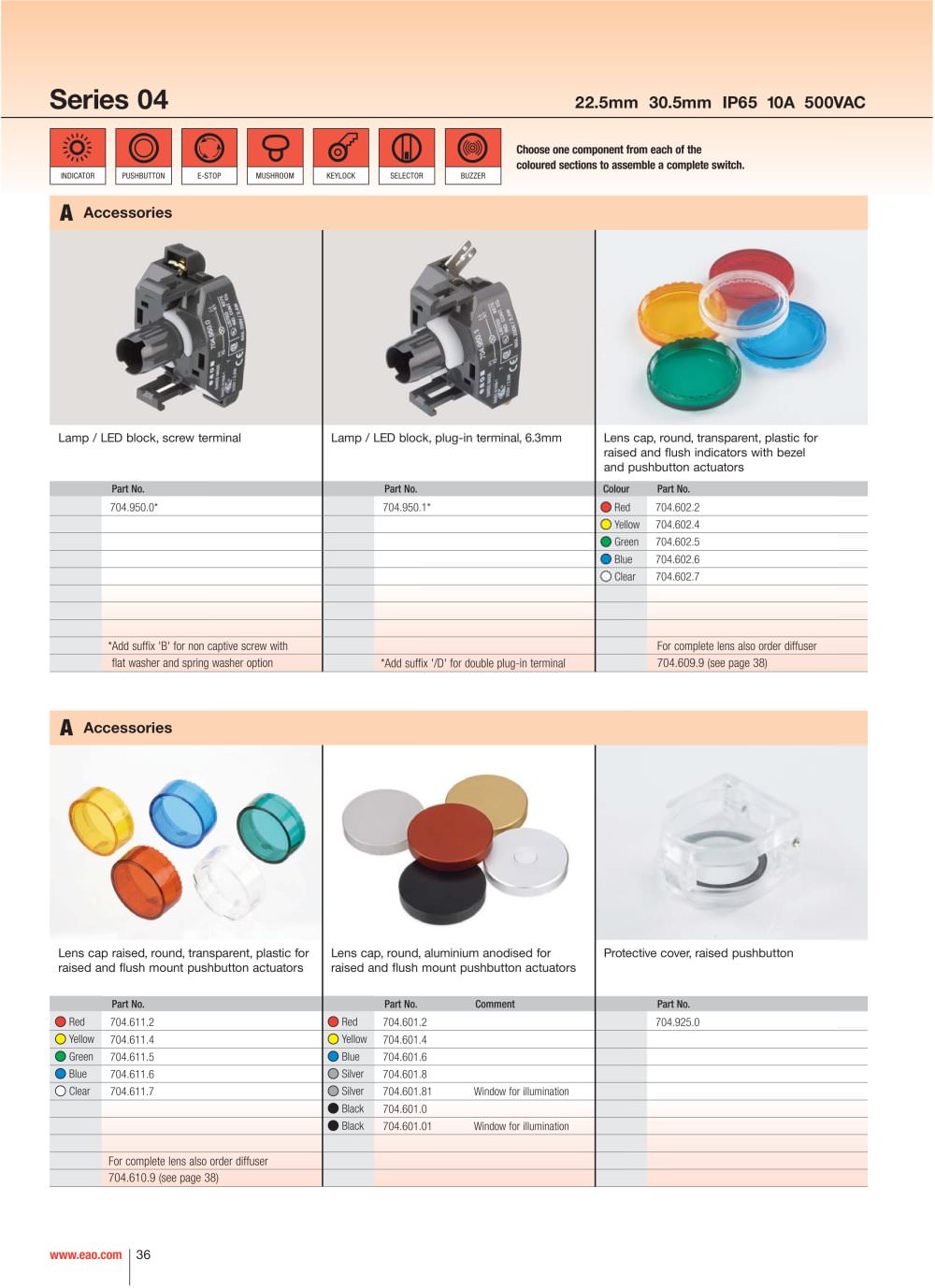

Series 04

22.5mm 30.5mm IP65 10A500VAC

Choose one component from each of the coloured sections to assemble a complete switch.

INDICATOR PUSHBUTTON E-STOP MUSHROOM KEYLOCK SELECTOR BUZZER

A

Accessories

Lamp / LED block,screw terminal Lamp / LED block,plug-in terminal,6.3mm Lens cap,round,transparent,plastic for raised and flush indicators with bezel and pushbutton actuators

Part No. Part No. ColourPart No. 704.950.0* 704.950.1* RedYellow GreenBlue Clear 704.602.2 704.602.4 704.602.5 704.602.6 704.602.7

*Add suffix 'B' for non captive screw with flat washer and spring washer option*Add suffix '/D' for double plug-in terminal For complete lens also order diffuser704.609.9 (see page 38)

A

Accessories

Lens cap raised,round,transparent,plastic for raised and flush mount pushbutton actuators Lens cap,round,aluminium anodised forraised and flush mount pushbutton actuators Protective cover,raised pushbutton

Part No. Part No.Comment Part No. RedYellowGreen BlueClear 704.611.2 Red YellowBlue SilverSilver BlackBlack 704.601.2 704.925.0 704.611.4 704.601.4 704.611.5 704.601.6 704.611.6 704.601.8 704.611.7 704.601.81Window for illumination 704.601.0 704.601.01Window for illumination

For complete lens also order diffuser 704.610.9 (see page 38)

www.eao.com 36
