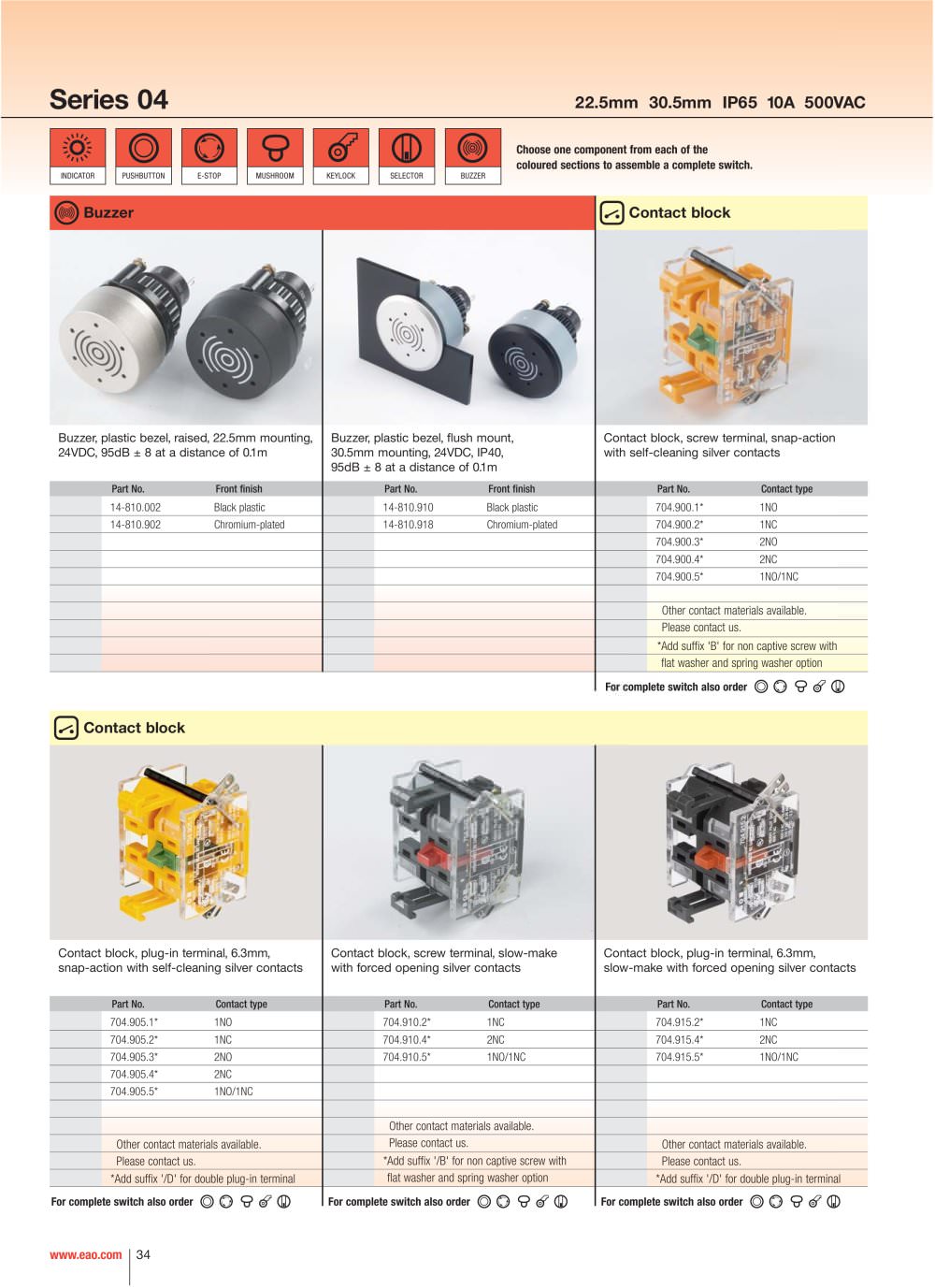

Series 04 22.5mm 30.5mm IP65 10A500VAC

Choose one component from each of the coloured sections to assemble a complete switch.

INDICATOR PUSHBUTTON E-STOP MUSHROOM KEYLOCK SELECTOR BUZZER

Buzzer Contact block

Buzzer,plastic bezel,raised,22.5mm mounting, 24VDC,95dB ±8 at a distance of 0.1m Buzzer,plastic bezel,flush mount, 30.5mm mounting,24VDC,IP40, 95dB ±8 at a distance of 0.1m Contact block,screw terminal,snap-action with self-cleaning silver contacts

Part No.Front finish Part No.Front finish Part No.Contact type 14-810.002Black plastic 14-810.910Black plastic 704.900.1*1NO 14-810.902Chromium-plated 14-810.918Chromium-plated 704.900.2*1NC 704.900.3*2NO 704.900.4*2NC 704.900.5*1NO/1NC

*Add suffix 'B' for non captive screw with flat washer and spring washer optionOther contact materials available.Please contact us. Other contact materials available.Please contact us.Other contact materials available.Please contact us.Other contact materials available.Please contact us.

For complete switch also order

Contact block

Contact block,plug-in terminal,6.3mm,snap-action with self-cleaning silver contacts Contact block,screw terminal,slow-make with forced opening silver contacts Contact block,plug-in terminal,6.3mm, slow-make with forced opening silver contacts

Part No.Contact type Part No.Contact type Part No.Contact type 704.905.1*1NO 704.910.2*1NC 704.915.2*1NC 704.905.2*1NC 704.910.4*2NC 704.915.4*2NC 704.905.3*2NO 704.910.5*1NO/1NC 704.915.5*1NO/1NC 704.905.4*2NC 704.905.5*1NO/1NC

*Add suffix '/B' for non captive screw with flat washer and spring washer option*Add suffix '/D' for double plug-in terminal*Add suffix '/D' for double plug-in terminal

For complete switch also order For complete switch also order For complete switch also order
