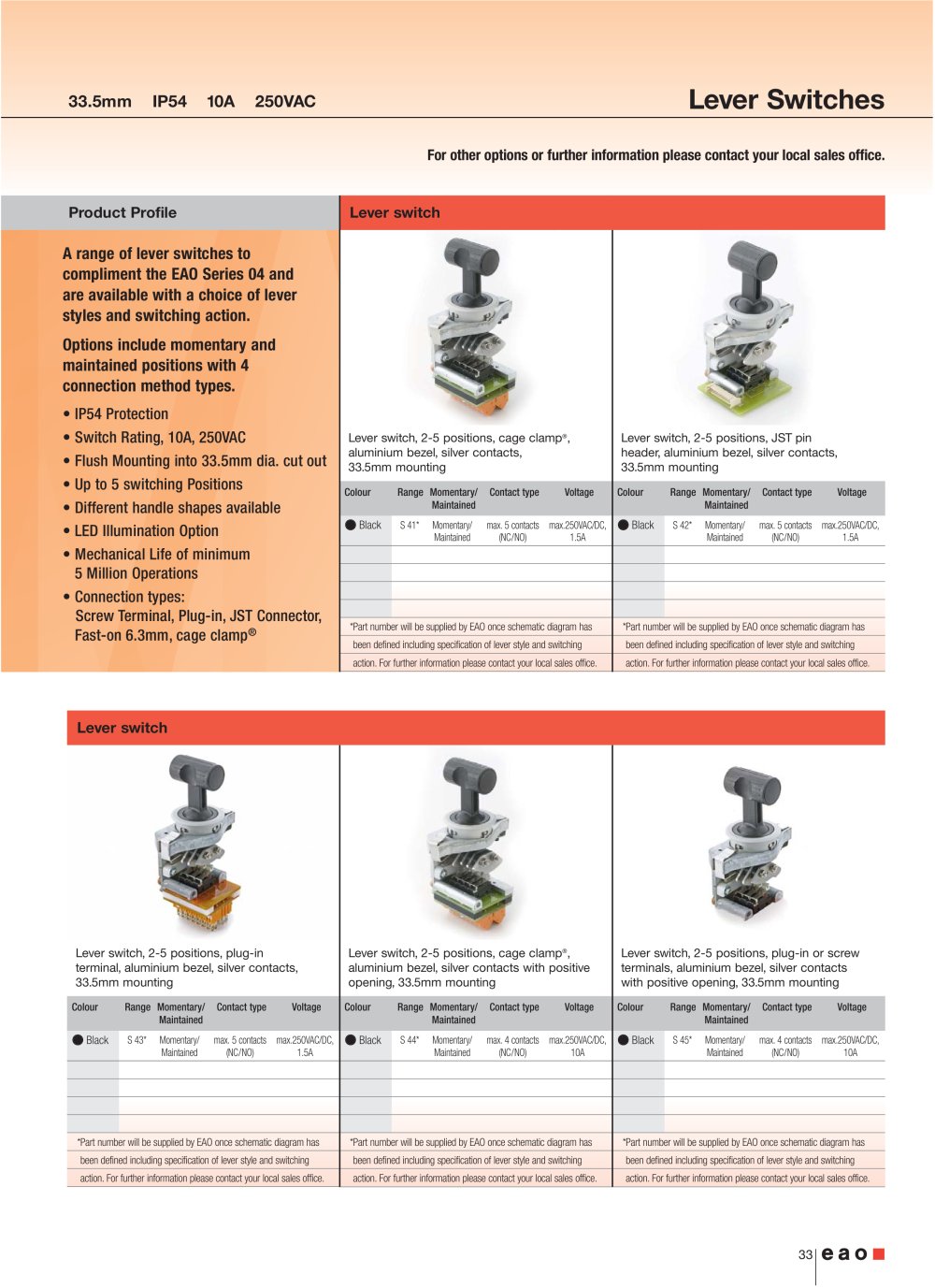

33.5mm IP54 10A250VAC Lever Switches

For other options or further information please contact your local sales office. Product Profile Lever switch

A range of lever switches to compliment the EAO Series 04 and are available with a choice of lever styles and switching action.Options include momentary and maintained positions with 4 connection method types.

• IP54 Protection • Switch Rating,10A,250VAC • Flush Mounting into 33.5mm dia. cut out• Up to 5 switching Positions • Different handle shapes available • LED Illumination Option• Mechanical Life of minimum 5 Million Operations• Connection types:Screw Terminal,Plug-in,JST Connector,Fast-on 6.3mm,cage clamp

Lever switch,2-5 positions,cage clamp

®

,aluminium bezel,silver contacts, 33.5mm mounting Lever switch,2-5 positions,JSTpin header,aluminium bezel,silver contacts, 33.5mm mounting

ColourRange Momentary/Contact typeVoltageMaintained ColourRange Momentary/Contact typeVoltageMaintained

Black

S 41*Momentary/max.5 contactsmax.250VAC/DC,

Black

S 42*Momentary/max.5 contactsmax.250VAC/DC, Maintained(NC/NO)1.5A Maintained(NC/NO)1.5A ® *Part number will be supplied by EAO once schematic diagram hasbeen defined including specification of lever style and switchingaction.For further information please contact your local sales office.*Part number will be supplied by EAO once schematic diagram hasbeen defined including specification of lever style and switchingaction.For further information please contact your local sales office. *Part number will be supplied by EAO once schematic diagram hasbeen defined including specification of lever style and switching action.For further information please contact your local sales office.*Part number will be supplied by EAO once schematic diagram hasbeen defined including specification of lever style and switching action.For further information please contact your local sales office.*Part number will be supplied by EAO once schematic diagram hasbeen defined including specification of lever style and switching action.For further information please contact your local sales office.

Lever switch

Lever switch,2-5 positions,cage clamp

®

,aluminium bezel,silver contacts with positive opening,33.5mm mounting Lever switch,2-5 positions,plug-in or screw terminals,aluminium bezel,silver contacts with positive opening,33.5mm mountingLever switch,2-5 positions,plug-in terminal,aluminium bezel,silver contacts, 33.5mm mounting

ColourRange Momentary/Contact typeVoltageMaintained ColourRange Momentary/Contact typeVoltageMaintained ColourRange Momentary/Contact typeVoltageMaintained

Black

S 43*Momentary/max.5 contactsmax.250VAC/DC,

Black

S 44*Momentary/max.4 contactsmax.250VAC/DC,

Black

S 45*Momentary/max.4 contactsmax.250VAC/DC, Maintained(NC/NO)1.5A Maintained(NC/NO)10A Maintained(NC/NO)10A

33
