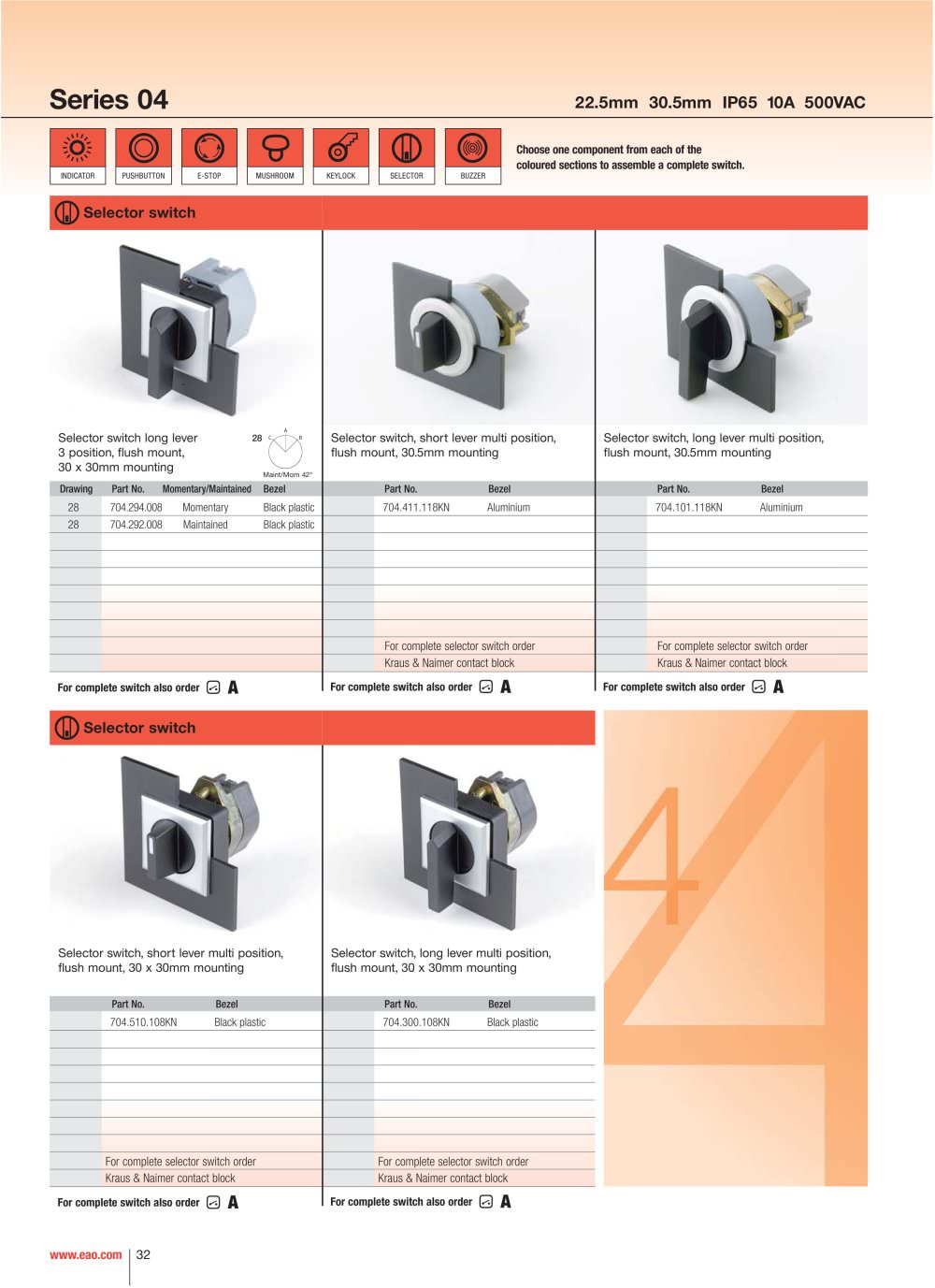

Series 04

22.5mm 30.5mm IP65 10A500VAC

Choose one component from each of the coloured sections to assemble a complete switch.

INDICATOR PUSHBUTTON E-STOP MUSHROOM KEYLOCK SELECTOR BUZZER

Selector switch

ABC

Selector switch long lever3 position,flush mount, 30 x 30mm mounting

28

Selector switch,short lever multi position, flush mount,30.5mm mounting Selector switch,long lever multi position, flush mount,30.5mm mounting

Maint/Mom 42° DrawingPart No. Momentary/Maintained Bezel Part No.Bezel Part No.Bezel 28704.294.008MomentaryBlack plastic 704.411.118KNAluminium 704.101.118KNAluminium 28704.292.008MaintainedBlack plastic

For complete selector switch order Kraus & Naimer contact blockFor complete selector switch order Kraus & Naimer contact block

For complete switch also order

A

For complete switch also order

A

For complete switch also order

A

Selector switch

Selector switch,short lever multi position,flush mount,30 x 30mm mounting Selector switch,long lever multi position, flush mount,30 x 30mm mounting

Part No.Bezel Part No.Bezel 704.510.108KNBlack plastic 704.300.108KNBlack plastic

For complete selector switch order Kraus & Naimer contact blockFor complete selector switch order Kraus & Naimer contact block

For complete switch also order

A

For complete switch also order

A

www.eao.com 32
