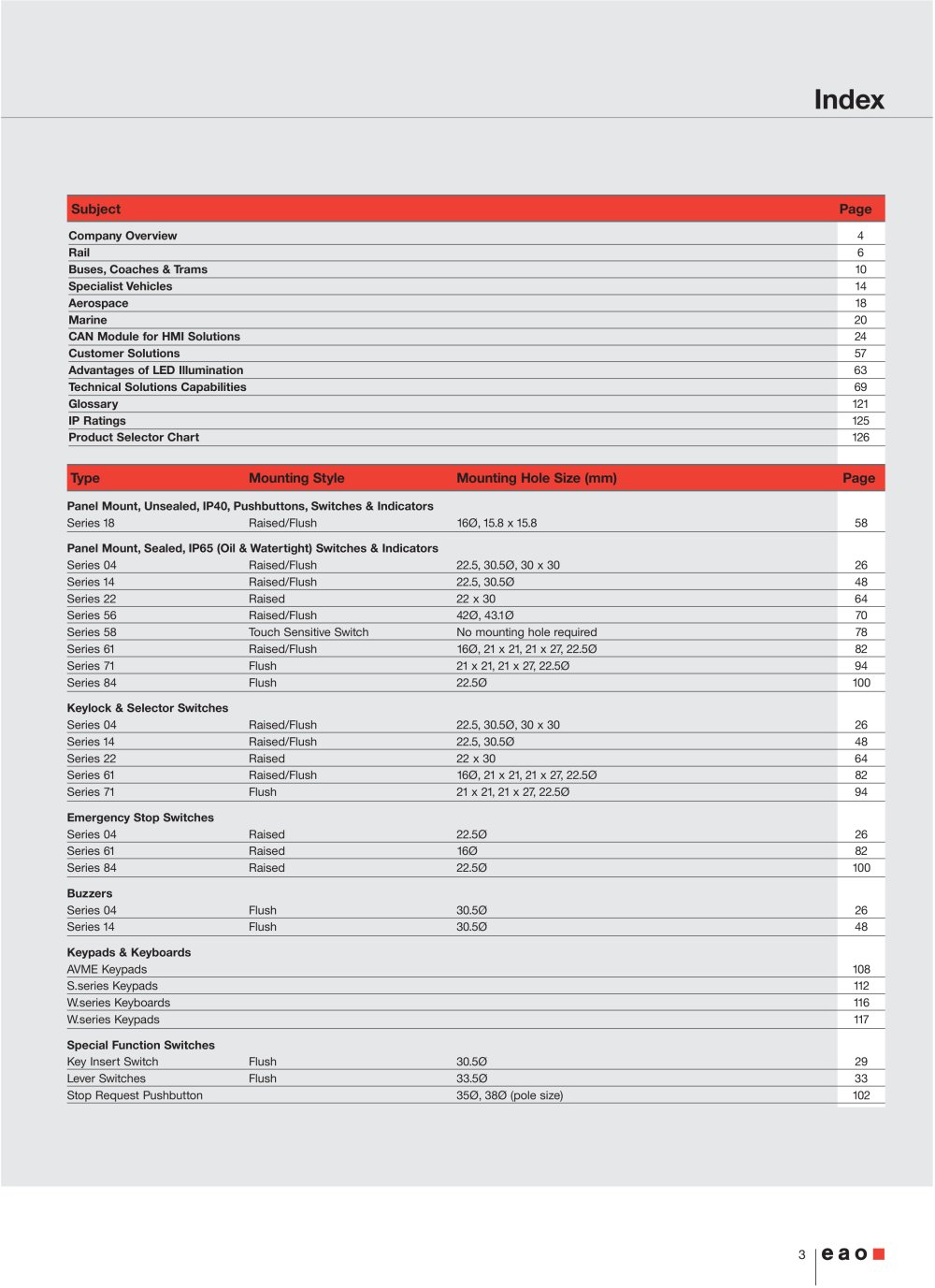

Index

SubjectPage

Company Overview 4 Rail 6 Buses,Coaches & Trams 10 Specialist Vehicles 14 Aerospace 18 Marine 20 CAN Module for HMI Solutions 24 Customer Solutions 57 Advantages of LED Illumination 63 Technical Solutions Capabilities 69 Glossary 121 IP Ratings 125 Product Selector Chart 126

TypeMounting StyleMounting Hole Size (mm)Page

Panel Mount,Unsealed,IP40,Pushbuttons,Switches & Indicators Series 18Raised/Flush16Ø,15.8 x 15.858 Panel Mount,Sealed,IP65 (Oil & Watertight) Switches & Indicators Series 04Raised/Flush22.5,30.5Ø,30 x 3026 Series 14Raised/Flush22.5,30.5Ø48 Series 22Raised22 x 30 64 Series 56Raised/Flush42Ø,43.1Ø70 Series 58Touch Sensitive SwitchNo mounting hole required78 Series 61Raised/Flush16Ø,21x 21,21x 27,22.5Ø82 Series 71Flush21x 21,21x 27,22.5Ø94 Series 84Flush22.5Ø100 Keylock & Selector Switches Series 04Raised/Flush22.5,30.5Ø,30 x 3026 Series 14Raised/Flush22.5,30.5Ø48 Series 22Raised22 x 30 64 Series 61Raised/Flush16Ø,21x 21,21x 27,22.5Ø82 Series 71Flush21x 21,21x 27,22.5Ø94 Emergency Stop Switches Series 04Raised22.5Ø26 Series 61Raised16Ø82 Series 84Raised22.5Ø100 Buzzers Series 04Flush30.5Ø26 Series 14Flush30.5Ø48 Keypads & Keyboards AVME Keypads108 S.series Keypads112 W.series Keyboards116 W.series Keypads117 Special Function Switches Key Insert SwitchFlush30.5Ø29 Lever SwitchesFlush33.5Ø33 Stop Request Pushbutton35Ø,38Ø (pole size)102

3
