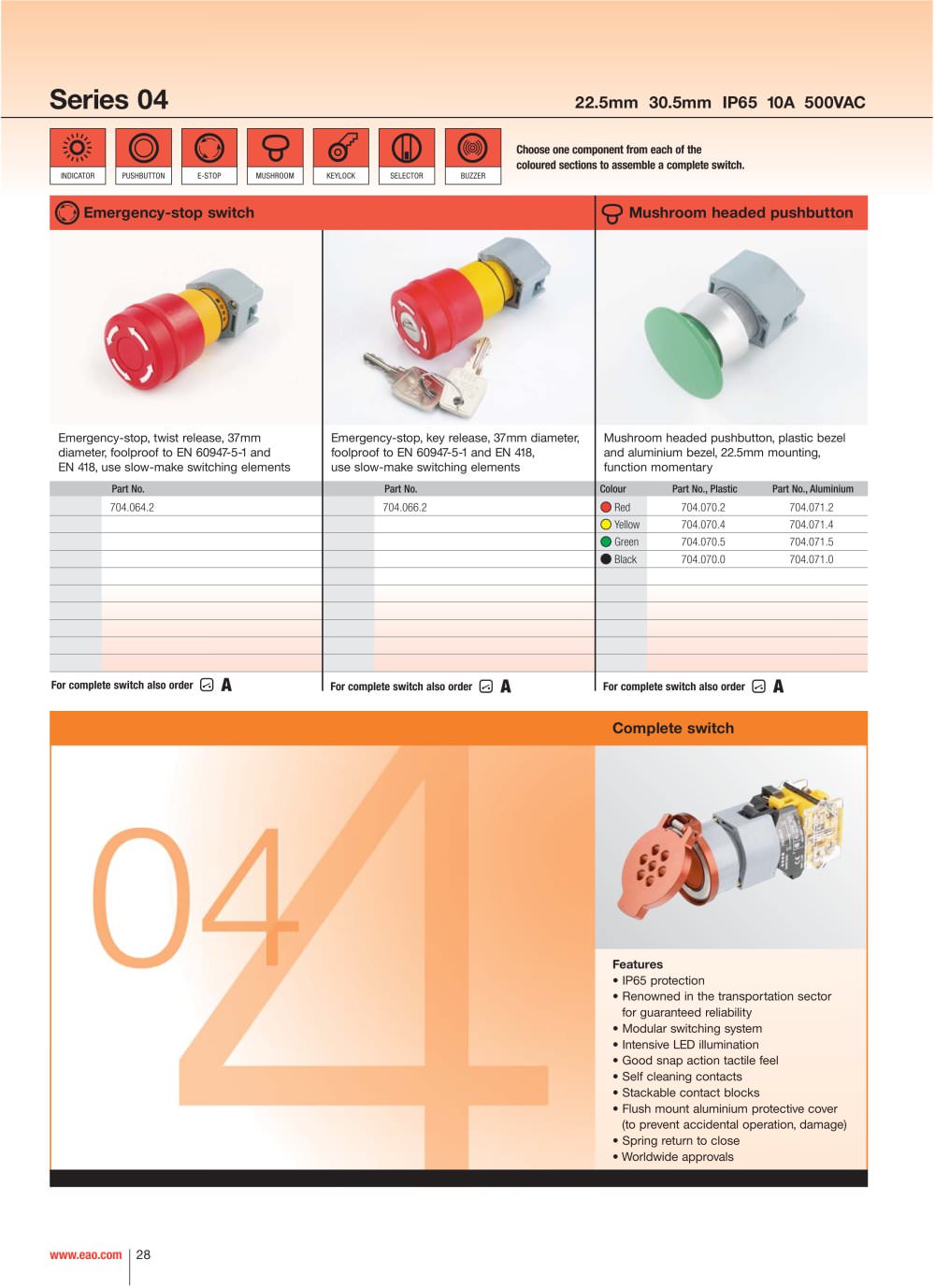

Series 04

22.5mm 30.5mm IP65 10A500VAC

Choose one component from each of the coloured sections to assemble a complete switch.

INDICATOR PUSHBUTTON E-STOP MUSHROOM KEYLOCK SELECTOR BUZZER

Emergency-stop switch Mushroom headed pushbutton

Emergency-stop,twist release,37mm diameter,foolproof to EN 60947-5-1and EN 418,use slow-make switching elements Emergency-stop,key release,37mm diameter, foolproof to EN 60947-5-1and EN 418, use slow-make switching elements Mushroom headed pushbutton,plastic bezel and aluminium bezel,22.5mm mounting, function momentary

Part No. Part No. ColourPart No.,PlasticPart No.,Aluminium 704.064.2 704.066.2 RedYellow GreenBlack 704.070.2704.071.2 704.070.4704.071.4 704.070.5704.071.5 704.070.0704.071.0 For complete switch also order

A

For complete switch also order

A

For complete switch also order

A

Complete switch

Features • IP65 protection • Renowned in the transportation sector for guaranteed reliability• Modular switching system • Intensive LED illumination • Good snap action tactile feel • Self cleaning contacts • Stackable contact blocks • Flush mount aluminium protective cover (to prevent accidental operation,damage)• Spring return to close • Worldwide approvals
