22.5mm 30.5mm IP65 10A500VAC

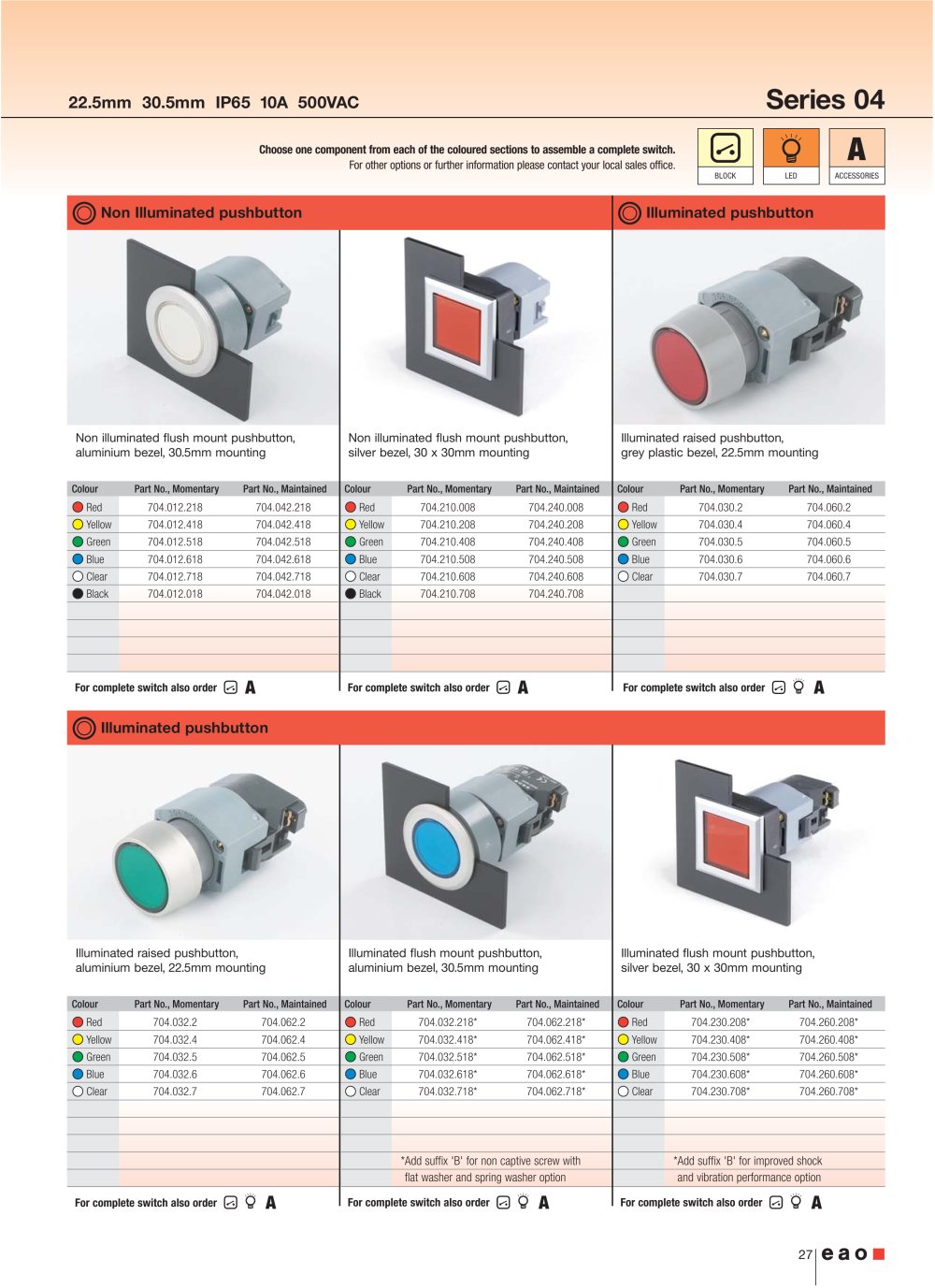

Transportation Catalogue - 9307 Series 04

Choose one component from each of the coloured sections to assemble a complete switch. For other options or further information please contact your local sales office.

BLOCK LED ACCESSORIES

A

Non Illuminated pushbutton Illuminated pushbutton

Non illuminated flush mount pushbutton,aluminium bezel,30.5mm mounting Non illuminated flush mount pushbutton,silver bezel,30 x 30mm mounting Illuminated raised pushbutton,grey plastic bezel,22.5mm mounting

ColourPart No.,MomentaryPart No.,Maintained ColourPart No.,MomentaryPart No.,Maintained ColourPart No.,MomentaryPart No.,Maintained RedYellow GreenBlue ClearBlack 704.012.218704.042.218 RedYellow GreenBlue ClearBlack 704.210.008704.240.008 RedYellow GreenBlue Clear 704.030.2704.060.2 704.012.418704.042.418 704.210.208704.240.208 704.030.4704.060.4 704.012.518704.042.518 704.210.408704.240.408 704.030.5704.060.5 704.012.618704.042.618 704.210.508704.240.508 704.030.6704.060.6 704.012.718704.042.718 704.210.608704.240.608 704.030.7704.060.7 704.012.018704.042.018 704.210.708704.240.708 For complete switch also order

A

For complete switch also order

A

For complete switch also order

A

Illuminated pushbutton

Illuminated raised pushbutton,aluminium bezel,22.5mm mounting Illuminated flush mount pushbutton, aluminium bezel,30.5mm mounting Illuminated flush mount pushbutton, silver bezel,30 x 30mm mounting

ColourPart No.,MomentaryPart No.,Maintained ColourPart No.,MomentaryPart No.,Maintained ColourPart No.,MomentaryPart No.,Maintained RedYellowGreen BlueClear 704.032.2704.062.2 RedYellowGreen BlueClear 704.032.218*704.062.218* Red YellowGreen BlueClear 704.230.208*704.260.208* 704.032.4704.062.4 704.032.418*704.062.418* 704.230.408*704.260.408* 704.032.5704.062.5 704.032.518*704.062.518* 704.230.508*704.260.508* 704.032.6704.062.6 704.032.618*704.062.618* 704.230.608*704.260.608* 704.032.7704.062.7 704.032.718*704.062.718* 704.230.708*704.260.708*

*Add suffix 'B' for non captive screw with flat washer and spring washer option *Add suffix 'B' for improved shock and vibration performance option

For complete switch also order

A

For complete switch also order

A

For complete switch also order

A

27
