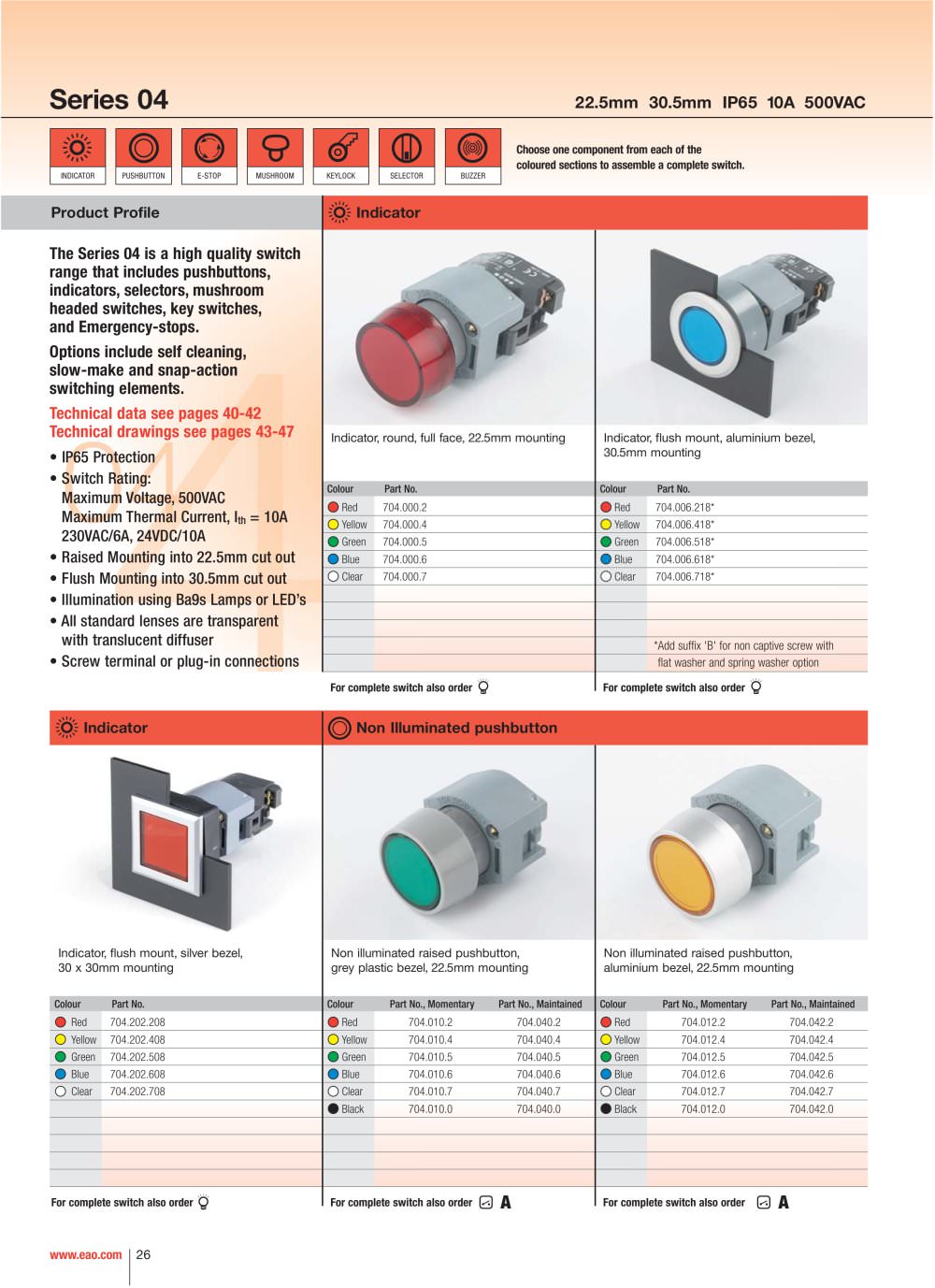

Series 04

22.5mm 30.5mm IP65 10A 500VAC

Choose one component from each of the coloured sections to assemble a complete switch.

INDICATOR

PUSHBUTTON

E-STOP

MUSHROOM

KEYLOCK

SELECTOR

BUZZER

CO) Indicator

Product Profile

The Series 04 is a high quality switch range that includes pushbuttons, indicators, selectors, mushroom

headed switches, key switches, and Emergency-stops.

Options include self cleaning, slow-make and snap-action switching elements.

Technical data see pages 40-42 Technical drawings see pages 43-47

• IP65 Protection

• Switch Rating: Maximum Voltage, 500VAC Maximum Thermal Current, Ith = 10A 230VAC/6A, 24VDC/10A

• Raised Mounting into 22.5mm cut out

• Flush Mounting into 30.5mm cut out

• Illumination using Ba9s Lamps or LED's

• All standard lenses are transparent with translucent diffuser

• Screw terminal or plug-in connections

Indicator, round, full face, 22.5mm mounting

Indicator, flush mount, aluminium bezel, 30.5mm mounting


Colour	Part No.	Colour	Part No.
ORed	704.000.2	ORed	704.006.218*
O Yellow	704.000.4	O Yellow	704.006.418*
O Green	704.000.5	O Green	704.006.518*
OBlue	704.000.6	OBlue	704.006.618*
O Clear	704.000.7	O Clear	704.006.718*



			*Add suffix 'B' for non captive screw with
			flat washer and spring washer option

For complete switch also order Q


;jO) Indicator			*(Q)* Non Illuminated pushbutton		Non illuminated raised pushbutton, aluminium bezel, 22.5mm mounting
Indicator, f 30 x 30mr		1 zel,	Non illuminated raised pushbutton, grey plastic bezel, 22.5mm mounting
Colour	Part No.		Colour	Part No., Momentary Part No., Maintained	Colour	Part No., Momentary Part No., Maintained
O Red	704.202.208		ORed	704.010.2 704.040.2	ORed	704.012.2 704.042.2
O Yellow	704.202.408		O Yellow	704.010.4 704.040.4	O Yellow	704.012.4 704.042.4
O Green	704.202.508		O Green	704.010.5 704.040.5	O Green	704.012.5 704.042.5
O Blue	704.202.608		OBlue	704.010.6 704.040.6	OBlue	704.012.6 704.042.6
O Clear	704.202.708		O Clear	704.010.7 704.040.7	O Clear	704.012.7 704.042.7
			• Black	704.010.0 704.040.0	• Black	704.012.0 704.042.0




For complete switch also order Q			For complete switch also order Q A		For complete switch also order Q A
