22.5mm IP67 42V100mAE-stop: IP65 3A250VAC

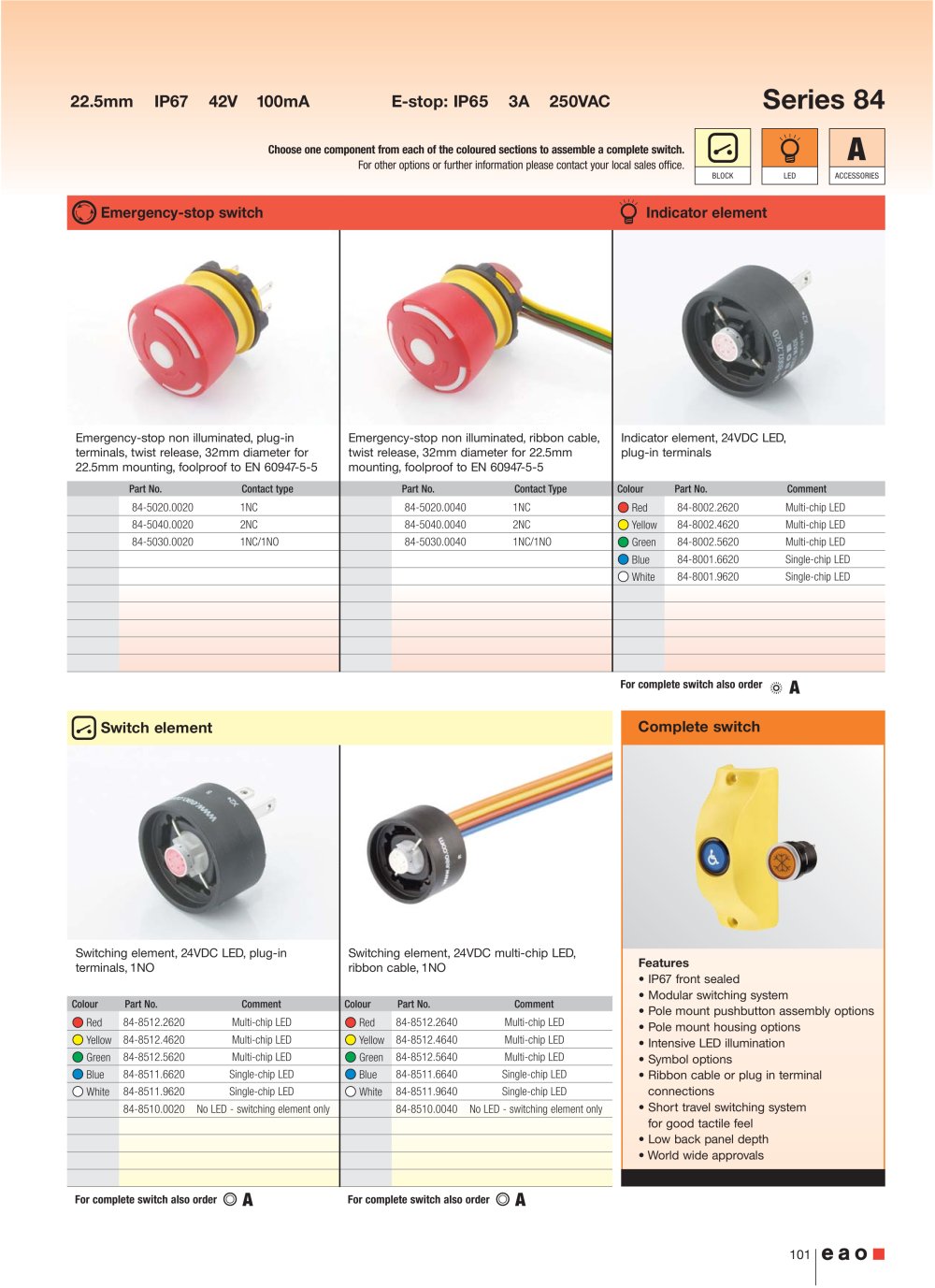

Transportation Catalogue - 9307 Series 84

Choose one component from each of the coloured sections to assemble a complete switch. For other options or further information please contact your local sales office.

BLOCK LED ACCESSORIES

A

Emergency-stop switch Indicator element

Emergency-stop non illuminated,plug-in terminals,twist release,32mm diameter for 22.5mm mounting,foolproof to EN 60947-5-5 Emergency-stop non illuminated,ribbon cable, twist release,32mm diameter for 22.5mm mounting,foolproof to EN 60947-5-5 Indicator element,24VDC LED,plug-in terminals

Part No.Contact type Part No.Contact Type ColourPart No.Comment 84-5020.00201NC 84-5020.00401NC RedYellow GreenBlue White 84-8002.2620Multi-chip LED 84-5040.00202NC 84-5040.00402NC 84-8002.4620Multi-chip LED 84-5030.00201NC/1NO 84-5030.00401NC/1NO 84-8002.5620Multi-chip LED 84-8001.6620Single-chip LED 84-8001.9620Single-chip LED For complete switch also order

A

Switch element Complete switch

Switching element,24VDC LED,plug-in terminals,1NO Switching element,24VDC multi-chip LED,ribbon cable,1NO Features • IP67 front sealed • Modular switching system • Pole mount pushbutton assembly options • Pole mount housing options • Intensive LED illumination • Symbol options • Ribbon cable or plug in terminal connections• Short travel switching system for good tactile feel• Low back panel depth • World wide approvals

ColourPart No.Comment ColourPart No.Comment RedYellowGreen BlueWhite 84-8512.2620Multi-chip LED RedYellowGreen BlueWhite 84-8512.2640Multi-chip LED 84-8512.4620Multi-chip LED 84-8512.4640Multi-chip LED 84-8512.5620Multi-chip LED 84-8512.5640Multi-chip LED 84-8511.6620Single-chip LED 84-8511.6640Single-chip LED 84-8511.9620Single-chip LED 84-8511.9640Single-chip LED 84-8510.0020No LED- switching element only 84-8510.0040No LED- switching element only For complete switch also order

A

For complete switch also order

A

101
