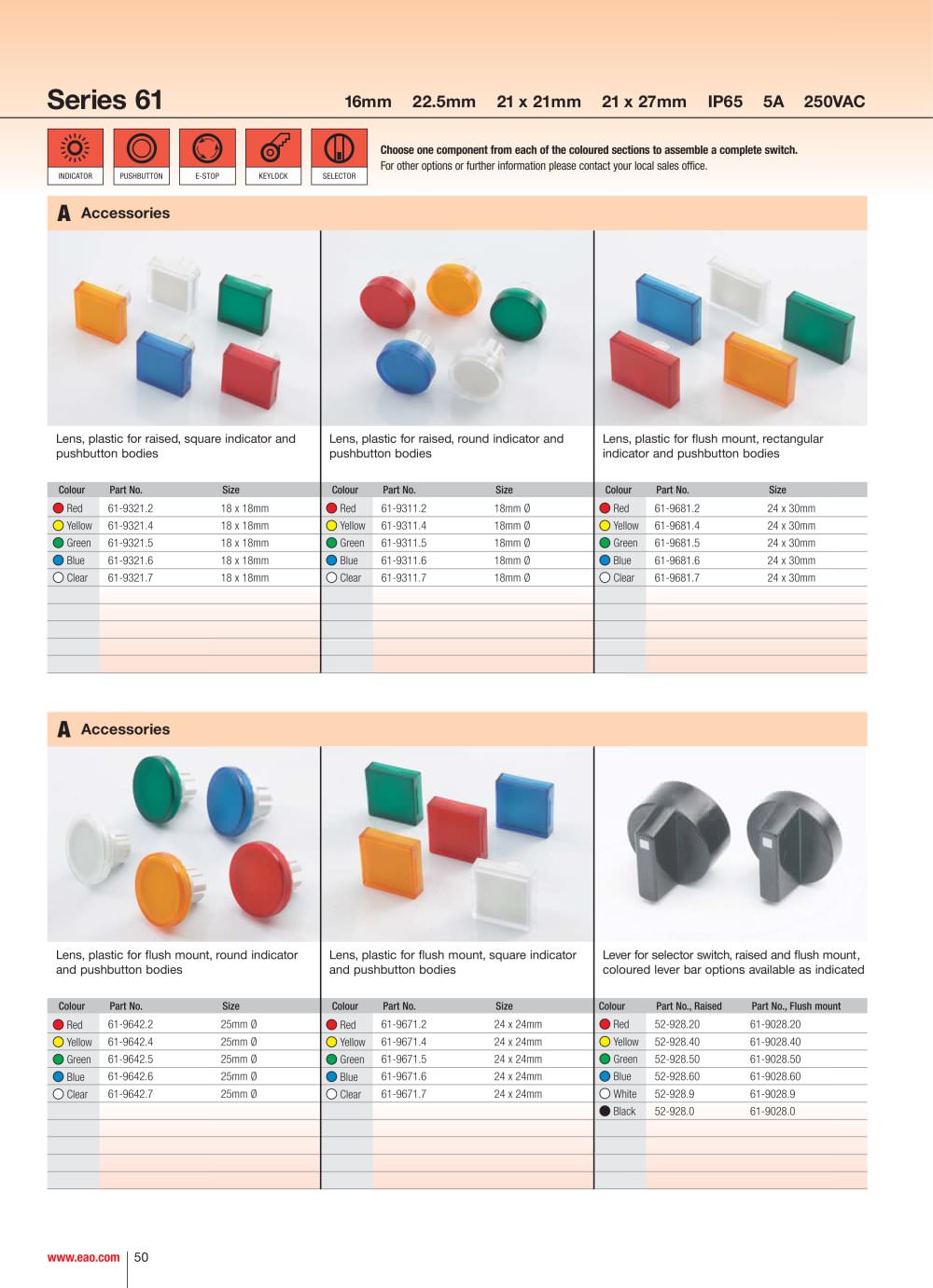

Series 61

16mm 22.5mm 21x 21mm 21x 27mm IP65 5A250VAC

Choose one component from each of the coloured sections to assemble a complete switch. For other options or further information please contact your local sales office.

INDICATOR PUSHBUTTON E-STOP KEYLOCK SELECTOR

A

Accessories

Lens,plastic for raised,square indicator and pushbutton bodies Lens,plastic for raised,round indicator and pushbutton bodies Lens,plastic for flush mount,rectangular indicator and pushbutton bodies

ColourPart No.Size ColourPart No.Size ColourPart No.Size RedYellow GreenBlueClear 61-9321.218 x 18mm Red Yellow GreenBlueClear 61-9311.218mm Ø Red Yellow GreenBlueClear 61-9681.224 x 30mm 61-9321.418 x 18mm 61-9311.418mm Ø 61-9681.424 x 30mm 61-9321.518 x 18mm 61-9311.518mm Ø 61-9681.524 x 30mm 61-9321.618 x 18mm 61-9311.618mm Ø 61-9681.624 x 30mm 61-9321.718 x 18mm 61-9311.718mm Ø 61-9681.724 x 30mm

A

Accessories

Lens,plastic for flush mount,round indicatorand pushbutton bodies Lens,plastic for flush mount,square indicator and pushbutton bodies Lever for selector switch,raised and flush mount,coloured lever bar options available as indicated

ColourPart No.Size ColourPart No.Size ColourPart No.,RaisedPart No.,Flush mount Red Yellow GreenBlueClear 61-9642.225mm Ø Red Yellow GreenBlueClear 61-9671.224 x 24mm RedYellowGreenBlue White Black 52-928.2061-9028.20 61-9642.425mm Ø 61-9671.424 x 24mm 52-928.4061-9028.40 61-9642.525mm Ø 61-9671.524 x 24mm 52-928.5061-9028.50 61-9642.625mm Ø 61-9671.624 x 24mm 52-928.6061-9028.60 61-9642.725mm Ø 61-9671.724 x 24mm 52-928.961-9028.9 52-928.061-9028.0

www.eao.com 50
