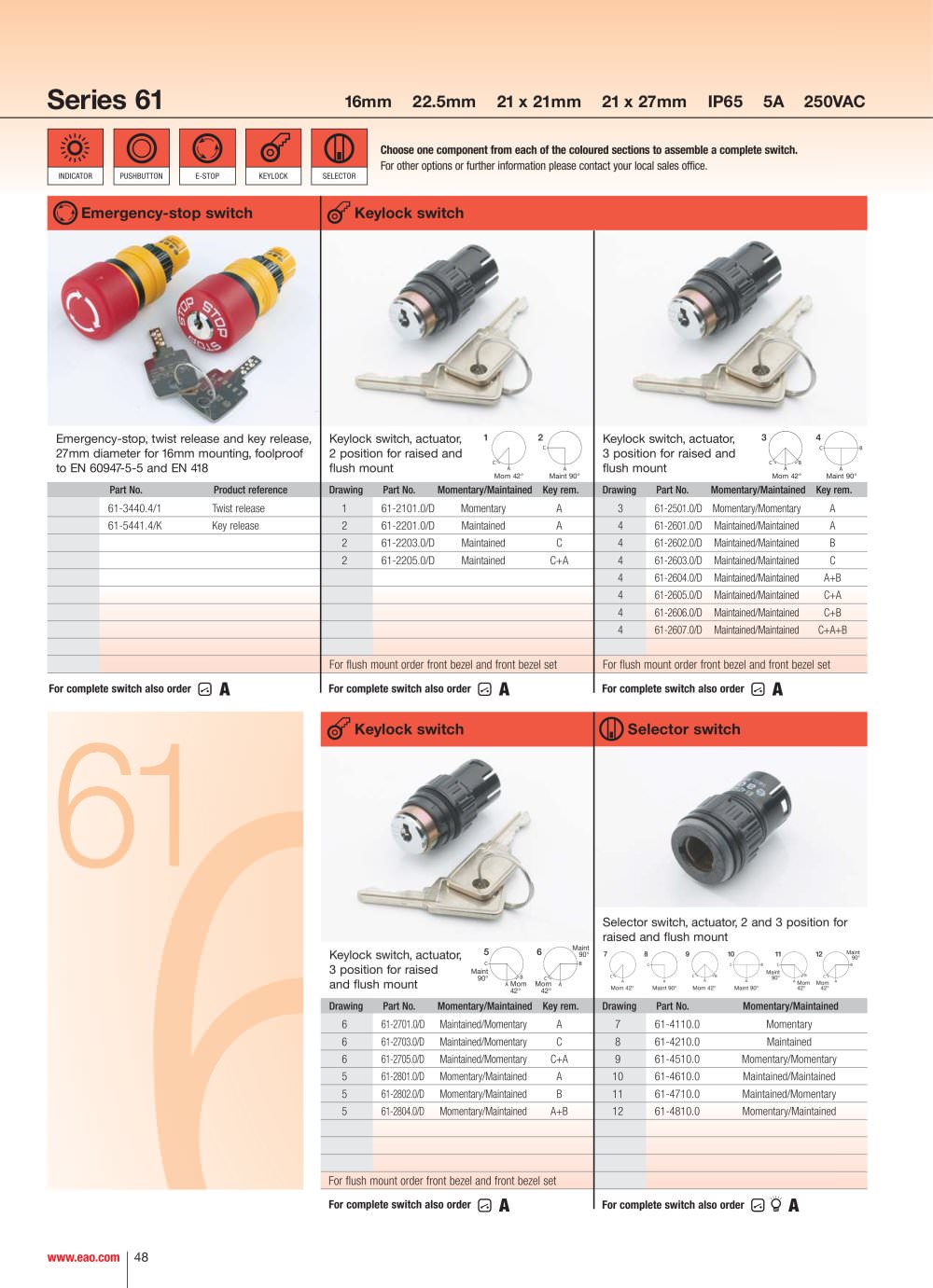

Series 61

16mm 22.5mm 21 x 21mm 21 x 27mm IP65 5A 250VAC

Choose one component from each of the coloured sections to assemble a complete switch.

For other options or further information please contact your local sales office.

INDICATOR

PUSHBUTTON

E-STOP

KEYLOCK

SELECTOR


Emergency-stop switch	Keylock switch		Keylock switch, actuator, *~~'\ ¹⁴ C* 4 3 position for raised and yTV \ J flush mount Mom 42° Maint 90°
Emergency-stop, twist release and key release, 27mm diameter for 16mm mounting, foolproof to EN 60947-5-5 and EN 418	Keylock switch, actuator, ¹ f ² f 2 position for raised and *\A J \ J* flush mount t a Mom 42° Maint 90°
Part No. Product reference	Drawing	Part No. Momentary/Maintained Key rem.	Drawing	Part No. Momentary/Maintained Key rem.
\| 61-3440.4/1 Twist release	1	61-2101.0/D Momentary A	3	61-2501.0/D Momentary/Momentary A
1 61-5441.4/K Key release	2	61-2201.0/D Maintained A	4	61-2601.0/D Maintained/Maintained A
	2	61-2203.0/D Maintained C	4	61-2602.0/D Maintained/Maintained B
	2	61-2205.0/D Maintained C+A	4	61-2603.0/D Maintained/Maintained C
			4	61-2604.0/D Maintained/Maintained A+B
			4	61-2605.0/D Maintained/Maintained C+A
			4	61-2606.0/D Maintained/Maintained C+B
			4	61-2607.0/D Maintained/Maintained C+A+B

	For flush mount order front bezel and front bezel set		For flush mount order front bezel and front bezel set
For complete switch also order Q A	For complete switch also order Q A		For complete switch also order Q A

Keylock switch

Selector switch

Selector switch, actuator, 2 and 3 position for raised and flush mount


Keylock switch, actuator, ⁵^~~\ ⁶/^~^^M9'^nt3 position for raised MaMV^jV/ \A T and flush mount ⁹⁰ t^S"¹ ^Mo\mT> 42° 42°		⁷ © Mom 42°	^\© Q ^:& M901Q 0 ^A ^A ^A ^A Mom Mom ^AMaint 90° Mom 42° Maint 90° 42° 42°
Drawing	Part No. Momentary/Maintained Key rem.	Drawing	Part No. Momentary/Maintained
6	61-2701.0/D Maintained/Momentary A	7	61-4110.0 Momentary
6	61-2703.0/D Maintained/Momentary C	8	61-4210.0 Maintained
6	61-2705.0/D Maintained/Momentary C+A	9	61-4510.0 Momentary/Momentary
5	61-2801.0/D Momentary/Maintained A	10	61-4610.0 Maintained/Maintained
5	61-2802.0/D Momentary/Maintained B	11	61-4710.0 Maintained/Momentary
5	61-2804.0/D Momentary/Maintained A+B	12	61-4810.0 Momentary/Maintained



For flush mount order front bezel and front bezel set

For complete switch also order Q A

For complete switch also order 0 Q A
