16mm 22.5mm 21x 21mm 21x 27mm IP65 5A250VAC

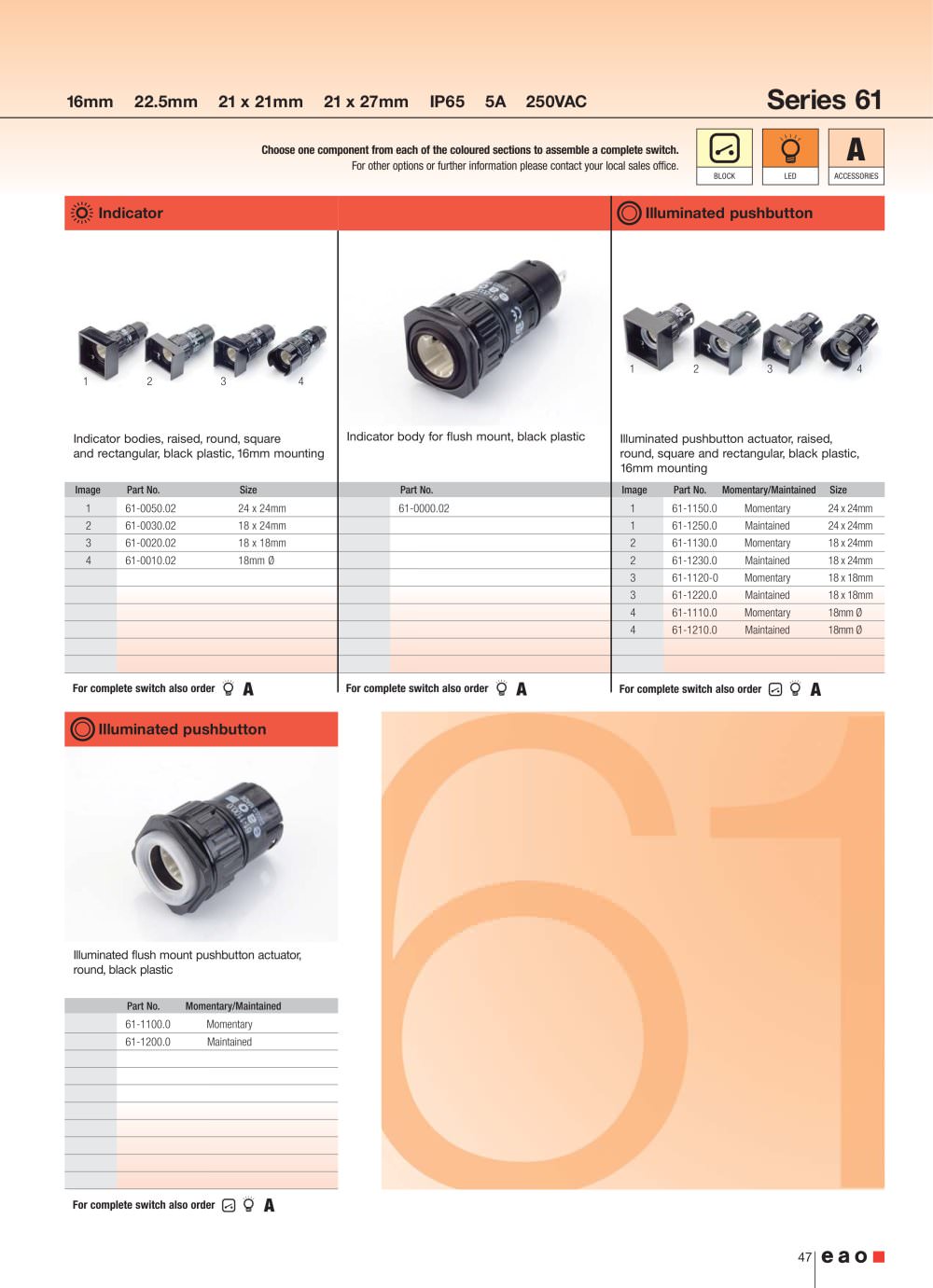

Condensed Catalogue - Complete Catalogue - 9307 Series 61

Choose one component from each of the coloured sections to assemble a complete switch. For other options or further information please contact your local sales office.

BLOCK LED ACCESSORIES

A

Indicator Illuminated pushbutton

1234 1234

Indicator bodies,raised,round,square and rectangular,black plastic,16mm mounting Indicator body for flush mount,black plastic Illuminated pushbutton actuator,raised,round,square and rectangular,black plastic, 16mm mounting

ImagePart No.Size Part No. ImagePart No. Momentary/Maintained Size 161-0050.0224 x 24mm 61-0000.02 161-1150.0Momentary24 x 24mm 261-0030.0218 x 24mm 161-1250.0Maintained24 x 24mm 361-0020.0218 x 18mm 261-1130.0Momentary18 x 24mm 461-0010.0218mm Ø 261-1230.0Maintained18 x 24mm 361-1120-0Momentary18 x 18mm 361-1220.0Maintained18 x 18mm 461-1110.0Momentary18mm Ø 461-1210.0Maintained18mm Ø For complete switch also order

A

For complete switch also order

A

For complete switch also order

A

Illuminated pushbutton

Illuminated flush mount pushbutton actuator, round,black plastic

Part No.Momentary/Maintained 61-1100.0Momentary 61-1200.0Maintained For complete switch also order

A

47
