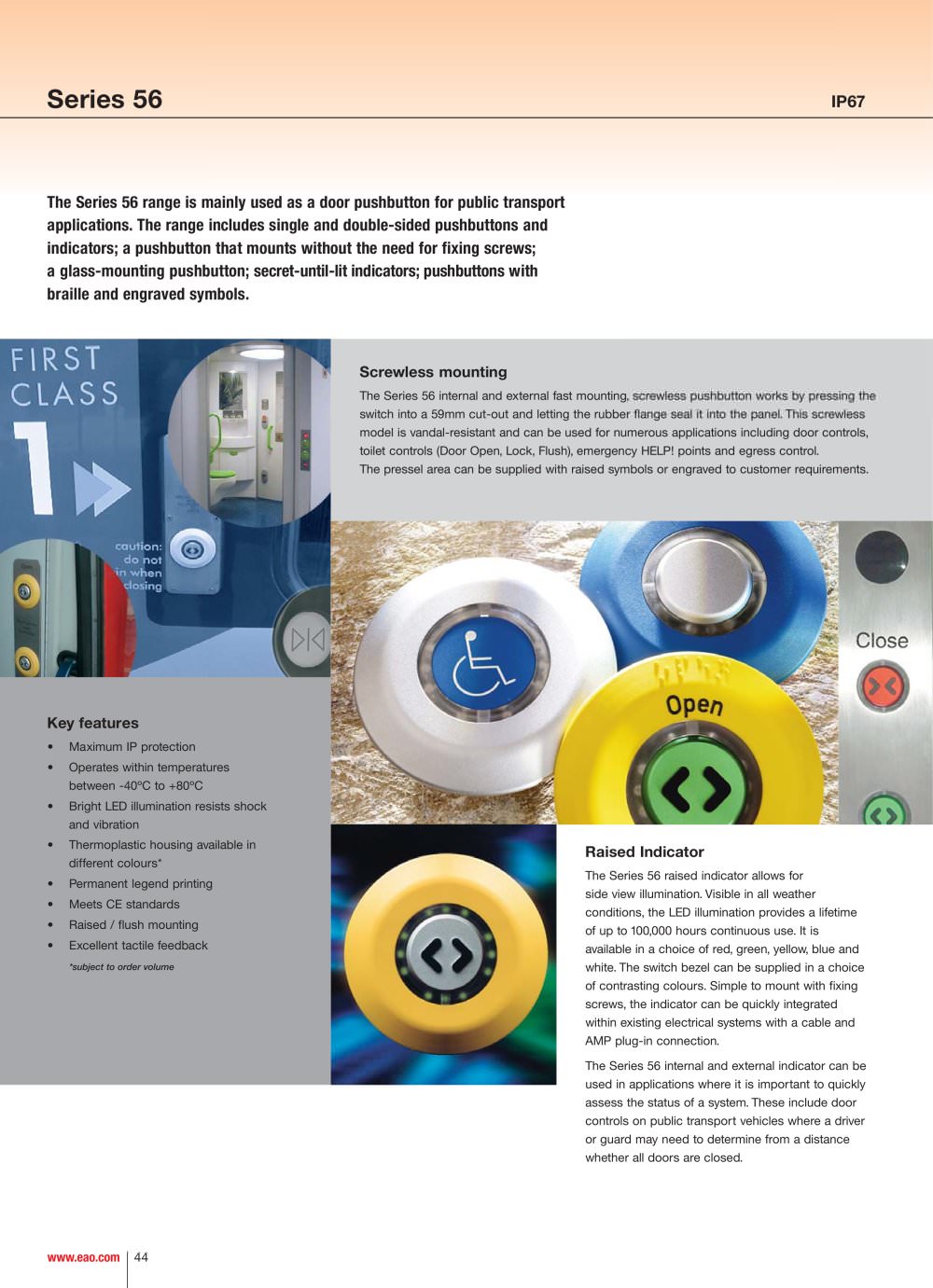

Series 56

IP67 The Series 56 range is mainly used as a door pushbutton for public transport applications.The range includes single and double-sided pushbuttons and indicators; a pushbutton that mounts without the need for fixing screws; a glass-mounting pushbutton; secret-until-lit indicators; pushbuttonswith braille and engraved symbols.

Screwless mounting

The Series 56 internal and external fast mounting,screwless pushbutton works by pressing the switch into a 59mm cut-out and letting the rubber flange seal it into the panel.This screwless model is vandal-resistant and can be used for numerous applications including door controls, toilet controls (Door Open,Lock,Flush),emergency HELP! points and egress control. The pressel area can be supplied with raised symbols or engraved to customer requirements.

Key features

•Maximum IP protection•Operates within temperaturesbetween -40ºC to +80ºC•Bright LED illumination resists shockand vibration•Thermoplastic housing available indifferent colours*•Permanent legend printing•Meets CE standards•Raised / flush mounting•Excellent tactile feedback

Raised Indicator

The Series 56 raised indicator allows for side view illumination.Visible in all weather conditions,the LED illumination provides a lifetime of up to 100,000 hours continuous use.It is available in a choice of red,green,yellow,blue and white.The switch bezel can be supplied in a choice of contrasting colours.Simple to mount with fixing screws,the indicator can be quickly integrated within existing electrical systems with a cable and AMP plug-in connection.The Series 56 internal and external indicator can beused in applications where it is important to quickly assess the status of a system.These include door controls on public transport vehicles where a driver or guard may need to determine from a distance whether all doors are closed.
*subject to order volume

www.eao.com 44
